HDX USER INSTRUCTIONS ENGLISH 85392696 - 01/11
Page 53 of 60

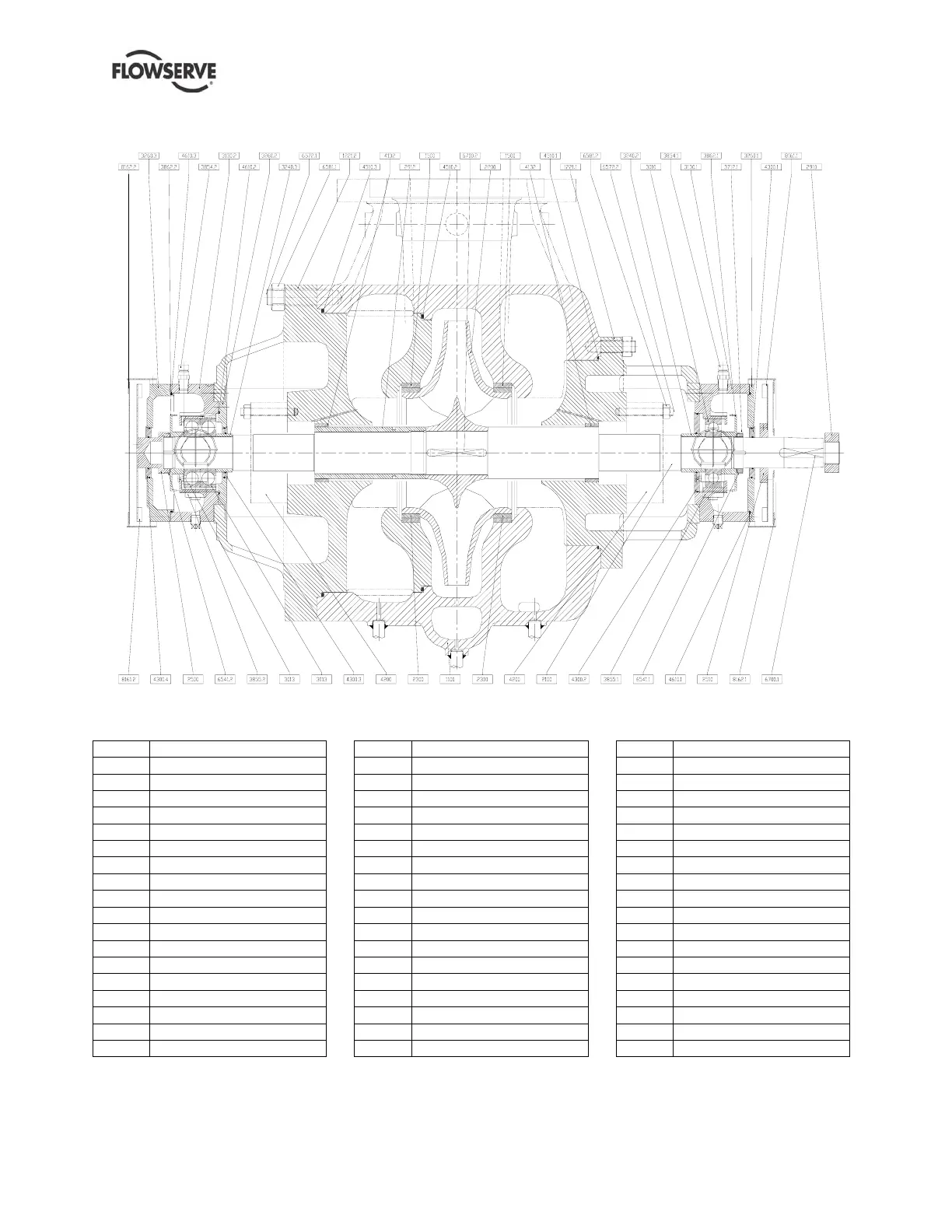

8.8 HDX Antifriction Bearing + Slinger Lubrication + Inpro Seals + Fan Cooling
8.8.1 Parts list
Ref no Description Ref no Description Ref no Description
1100 Casing 3260.2 Bearing Cover 4610.1 “O” Ring
1221.1 Casing Cover 3260.3 Bearing Cover 4610.2 “O” Ring
1221.2 Casing Cover 3712.1 Bearing Nut 4610.3 “O” Ring
1500 Casing Wear ring 3854.1 Oil Filter Plug 6541.1 Lock washer
2100 Shaft 3854.2 Oil Filter Plug 6541.2 Lock washer
2200 Impeller 3855.1 Constant Level Oiler 6572.2 Stud
2300 Impeller Wear Ring 3855.2 Constant Level Oiler 6572.1 Stud
2500 Ring 3862.1 Lubricating Disk Thrower 6581.1 Hexagon Nut
2510 Spacer Ring 3862.2 Lubricating Disk Thrower 6581.2 Hexagon Nut
2905.1 Washer 4132 Stuffing Box Bushing 6700.1 Key
2905.2 Washer 4200 Mechanical Seal 6700.2 Key
2910 Shaft Nut 4300.1 Inpro Seal 8161.1 Fan
2912 Impeller Nut 4300.2 Labyrinth Ring 8161.2 Fan
3010 Anti-Friction Bearing 4300.3 Labyrinth Ring 8162.1 Cover
3013 Thrust Ball bearing 4300.4 Labyrinth Ring 8162.2 Cover
3130.1 Bearing Bracket 4510.1 Gasket
3130.2 Bearing Bracket 4510.2 Gasket
3260.1 Bearing Cover 4510.3 Gasket
To Next Page
