Flowserve HDX Series - Page 54

HDX USER INSTRUCTIONS ENGLISH 85392696 - 01/11
Page 54 of 60

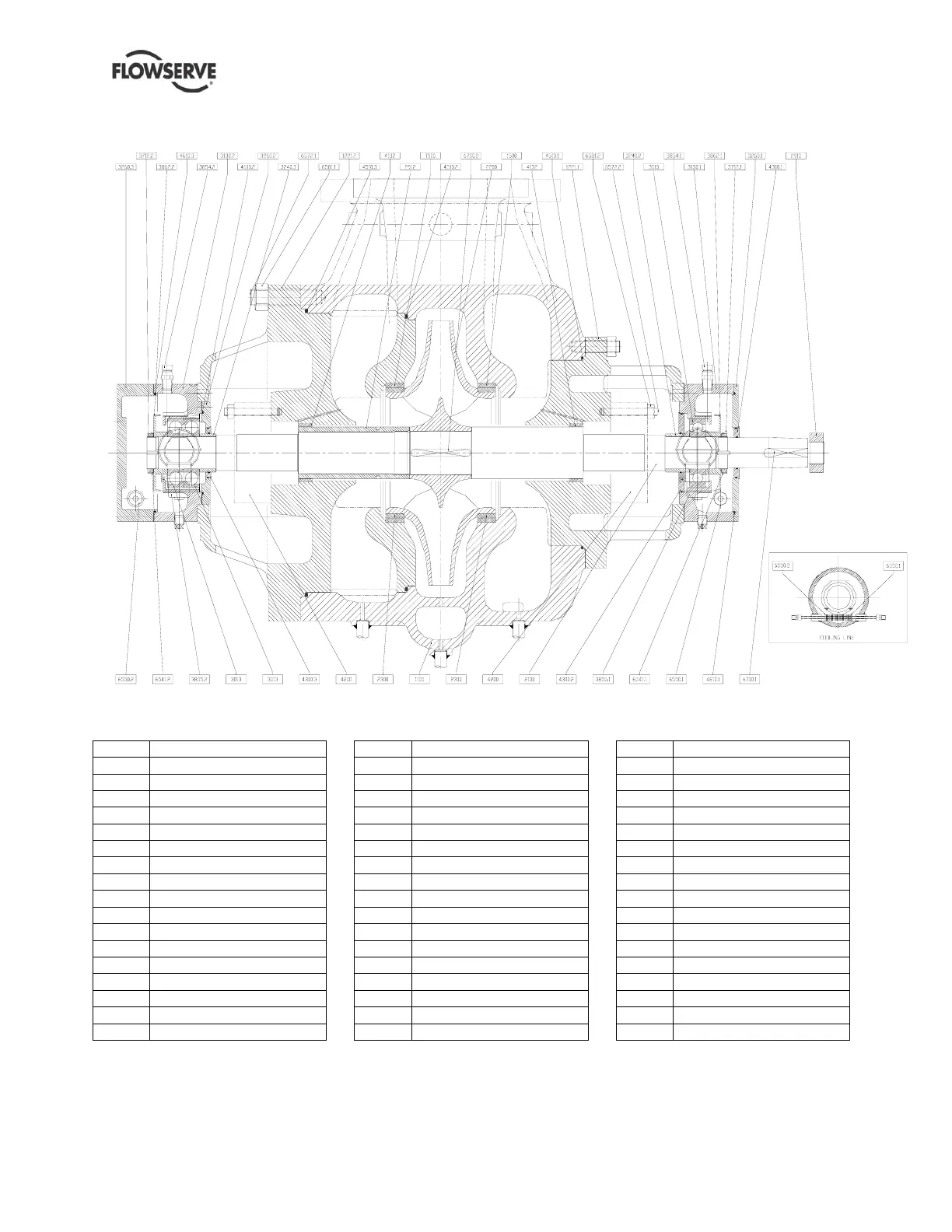

8.9 HDX Antifriction Bearing + Slinger Lubrication + Inpro Seals + Water Cooling
8.9.1 Parts list
Ref no Description Ref no Description Ref no Description
1100 Casing 3260.3 Bearing Cover 4610.1 “O” Ring
1221.1 Casing Cover 3712.1 Bearing Nut 4610.2 “O” Ring
1221.2 Casing Cover 3712.2 Bearing Nut 4610.3 “O” Ring
1500 Casing Wear ring 3854.1 Oil Filter Plug 6541.1 Lock washer
2100 Shaft 3854.2 Oil Filter Plug 6541.2 Lock washer
2200 Impeller 3855.1 Constant Level Oiler 6550.1 Cooling Line
2300 Impeller Wear Ring 3855.2 Constant Level Oiler 6550.2 Cooling Line
2905.1 Washer 3862.1 Lubricating Disk Thrower 6572.2 Stud
2905.2 Washer 3862.2 Lubricating Disk Thrower 6572.1 Stud
2910 Shaft Nut 4132 Stuffing Box Bushing 6581.1 Hexagon Nut
2912 Impeller Nut 4200 Mechanical Seal 6581.2 Hexagon Nut
3010 Anti-Friction Bearing 4300.1 Inpro Seal 6700.1 Key
3013 Thrust Ball bearing 4300.2 Inpro Seal 6700.2 Key
3130.1 Bearing Bracket 4300.3 Inpro Seal
3130.2 Bearing Bracket 4510.1 Gasket
3260.1 Bearing Cover 4510.2 Gasket
3260.2 Bearing Cover 4510.3 Gasket
