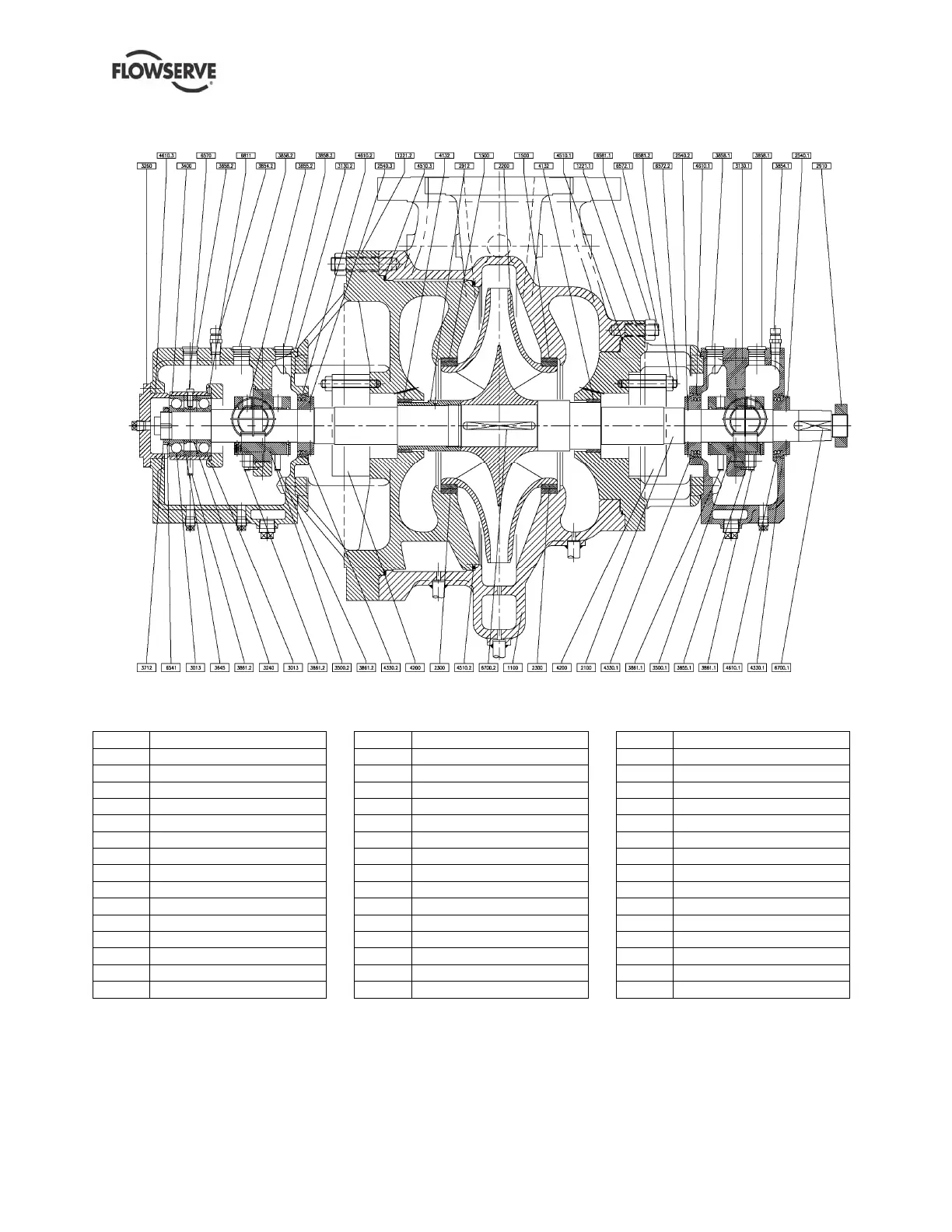

8.11 HDX Sleeve Ball Bearing + Oil Ring Lubrication
8.11.1 Parts list
Ref no Description Ref no Description Ref no Description
3013 Thrust Bearing 4200 Mechanical Seal 3240 Intermediate Bearing Sleeve
3400 Bearing Sleeve 3854 Oil Filler Plug 4132 Stuffing Box Bushing
3500 Bearing Shell 1100 Pump Casing 6700.1 Key
4510.3 Spiral Wound Gasket 1221.1 Casing Cover 6700.2 Key
4510.2 Spiral Wound Gasket 1221.2 Casing Cover 2540.1 Deflector
4510.1 Spiral Wound Gasket 3130.1 Bearing Bracket 2540.2 Deflector
2912 Impeller Nut 3130.2 Bearing Bracket 2540.3 Deflector
2910 Shaft Nut 3260.1 Bearing Cover 4330.1 Labyrint Ring
3712 Bearing Lock Nut Washer 3260.2 Bearing Cover 4330.2 Labyrint Ring
3855 Constant Level Oiler 3260.3 Bearing Cover 4330.3 Labyrint Ring
4610.1 ‘O” Ring 1500 Casing Wear Ring 3645 Disk Spacer
4610.2 ‘O” Ring 2300 Impeller Wear Ring 6541 Lockwasher
4610.3 ‘O” Ring 2200 Impeller 6572.1 Stud
4610.4 ‘O” Ring 2100 Pump Shaft 6572.2 Stud
4610.5 ‘O” Ring 3861 Slinger 6581 Hexagon Nut
