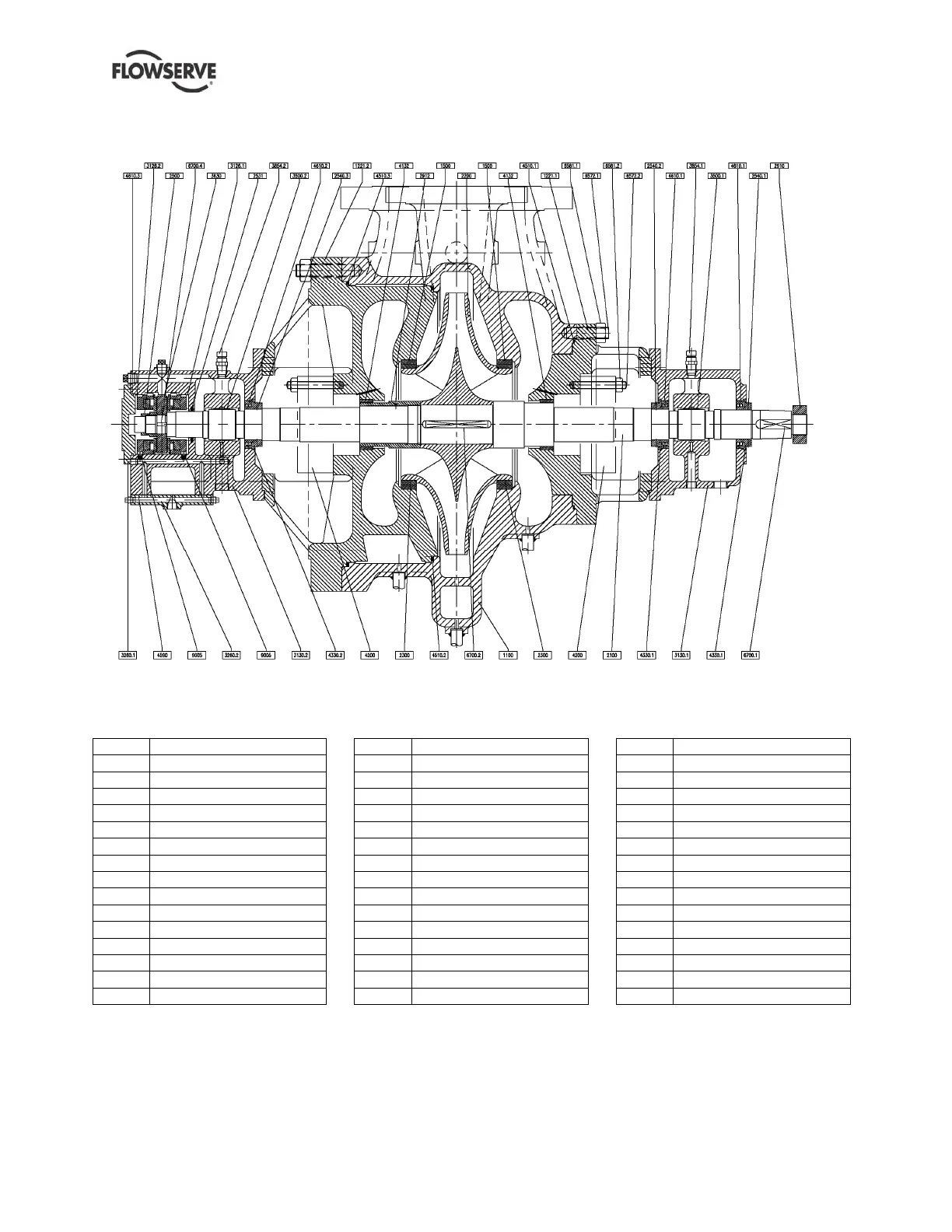

8.12 HDX Sleeve KTB Bearing + Forced Feed Lubrication
8.12.1 Parts list
Ref no Description Ref no Description Ref no Description
3630 Thrust Bearing Pad 4200 Mechanical Seal 6700.1 Key
3500 Bearing Shell 3854 Oil Filter Plug 6700.2 Key
3126.1 Shim 1100 Pump Casing 2540.1 Deflector
3126.2 Shim 1221.1 Casing Cover 2540.2 Deflector
2531 Split Retaining Ring 1221.2 Casing Cover 2540.3 Deflector
2500 Ring 3130.1 Bearing Bracket 4330.1 Labyrint Ring
9005 Orifice 3130.2 Bearing Bracket 4330.2 Labyrint Ring
4510.3 Spiral Wound Gasket 3260.1 Bearing Cover 6572.1 Stud
4510.2 Spiral Wound Gasket 3260.2 Bearing Cover 6572.2 Stud
4510.1 Spiral Wound Gasket 3260.3 Bearing Cover 6581 Hexagon Nut
2912 Impeller Nut 1500 Casing Wear Ring
2910 Shaft Nut 2300 Impeller Wear Ring
4610.1 ‘O” Ring 2200 Impeller
4610.2 ‘O” Ring 2100 Pump Shaft
4610.3 ‘O” Ring 4132 Stuffing Box Bushing
