Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
5.17 Motor Lead Harness (MX-85, -140, and -150)

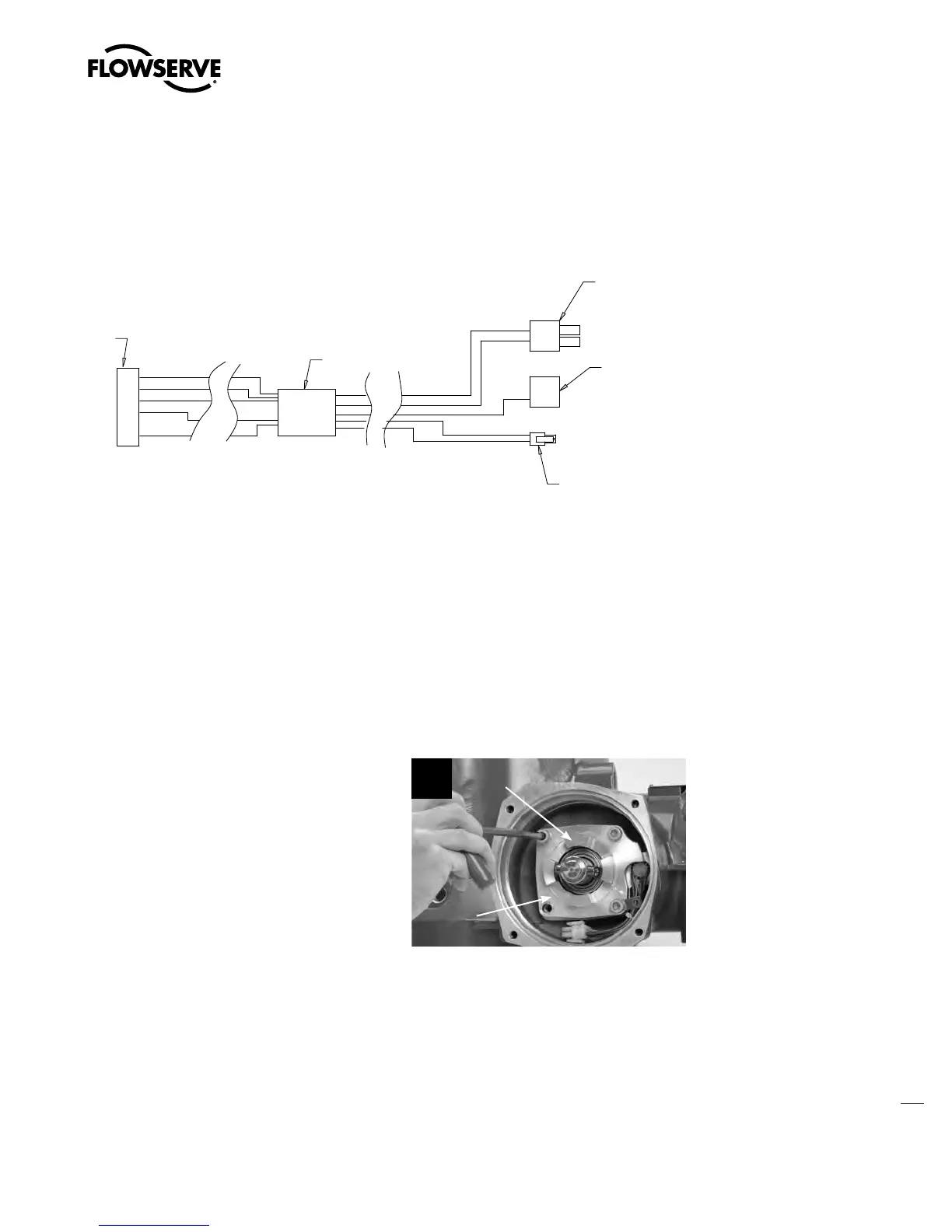

Figure 5.20 – Motor Lead Assembly






5
5
5
5I
5I
5I
5I




5
5
5


5P.PUPS
1JO".11MVH
5P$POUBDUPS
1JO".11MVH
5P$POUBDUPS
1JO".1$BQ
4FBM
5P.BJO1SPDFTTPS#PBSE
.PMFY1JO1
.PMFY3FDFQUBDMF
5.17.1 Removal
NOTE: Before removal you must:
1. Remove the motor (subassembly #4). (See Section 4.1.1)
2. Remove the CP (subassembly #7). (See Section 5.1)
3. Remove the control module (subassembly #15). (See Section 5.6.1)
4. Remove the contractor assembly (subassembly #8). (See Section 5.10.1)
STEP 1
If the worm shaft assembly (subassembly #3)
is still mounted in the unit, remove the four
screws (#3-9) and rotate the cap (CCW) to
rotate the cap tab away from the motor lead
seal.
1
Cap
Tab
Motor
Lead
Seal
