Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
48

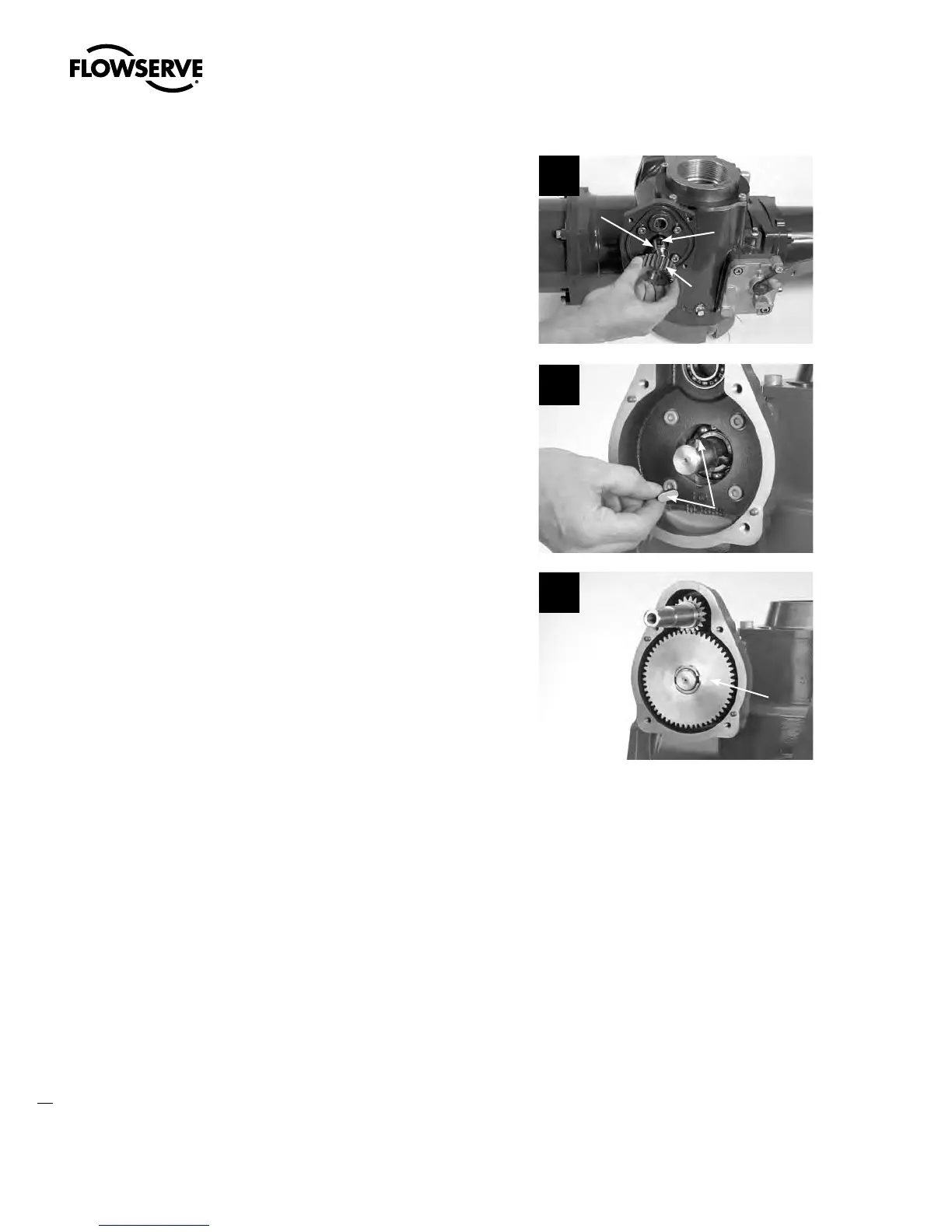

STEP 11
MX-40 (11a)
Fit gear (#13-12) onto end of worm shaft
(#13-1). Ensure gear slot is fitted into pin
(#13-7).
MX-85, -140, and -150 (11b and 11c)
Fit gear (#13-12) onto end of worm shaft.
Ensure both keys (#13-24) are in place in worm
shaft.
11a
13-12
13-7
13-1
11b
13-24
11c
13-12
