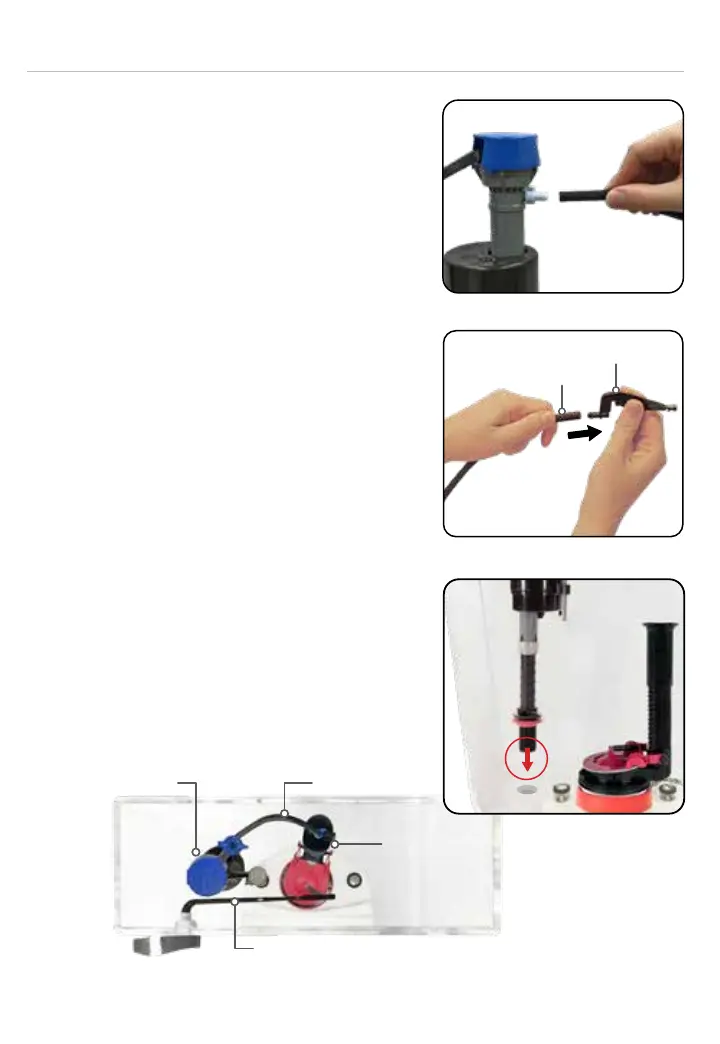

STEP 8: INSTALL NEW FILL VALVE
A: PUSH REFILL TUBE
ONTO REFILL PORT
B: ATTACH REFILL CLIP
TO OTHER END OF
REFILL TUBE
Rell Clip
Rell Tube
C: INSERT FILL VALVE
Position rell tube to face ush
valve making sure ll valve parts
do not interfere with lever arm.
TOP
DOWN
VIEW
Rell Tube
Lever Arm
Overow
Pipe
Fill Valve
