14 15
A: WATER FROM REFILL TUBE MUST
FLOW THROUGH OVERFLOW PIPE
Make sure the refill tube is supplying water down
overflow pipe. (Metal side out for refill clip)
B: WATER LEVEL IN TANK MAY BE TOO LOW
1/2” below top of overflow pipe is recommended
(see page 10).
C: FLAPPER MAY BE CLOSING TOO SOON
Give flapper chain approximately 1/2" of slack.
(small “j” shape)
WATER LEVEL IN BOWL IS TOO LOW
Overflow
Pipe
Refill Tube
1/2"
Overflow
Pipe
REPLACE FILL VALVE SEAL
• Place cap assembly on top of gray valve body by
aligning cap arm and adjustment rod next to refill tube.
• Press down on top cap while rotating top & arm clockwise to locked position.
A: Remove cap (see page 14).
B: Replace seal with a *genuine
Fluidmaster 242 Seal.
C: Replace valve cap.
*
Always use genuine Fluidmaster parts when installing or repairing. Fluidmaster will not be
responsible or liable for use of non-Fluidmaster parts during installation or repair.
TROUBLESHOOTING
D: BOWL WATER LEVEL DIAL MAY NEED TO
BE ADJUSTED (see page 12).
Seal
Cap
*
Always use genuine Fluidmaster parts when installing or repairing. Fluidmaster will not be
responsible or liable for use of non-Fluidmaster parts during installation or repair.

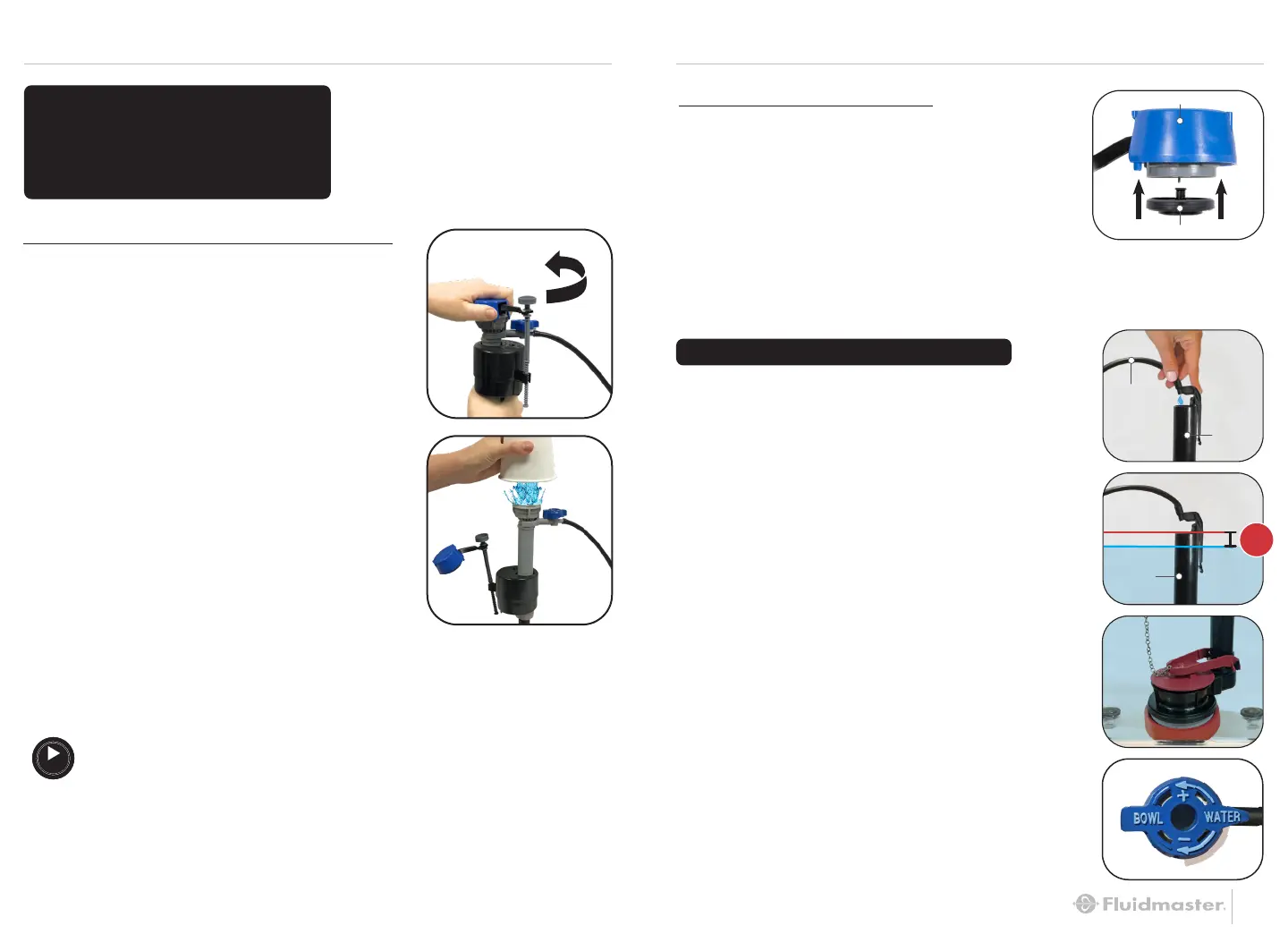

REMOVE CAP AND CHECK FOR DEBRIS
A: Turn off water supply, then flush toilet.
B: With right hand push float up, grip and
hold shaft under float.
C: With left hand twist cap and lever arm
counterclockwise to unlock cap. Let cap
hang on float cup.
D: Hold empty cup upside down over
uncapped valve to prevent splashing.
E: Turn water supply on and off a few times,
then leave it turned off.
F: Replace valve cap.
• Place cap assembly on top of gray
valve body by aligning cap arm and
adjustment rod next to refill tube.
• Press down on top cap while
rotating top & arm clockwise to
locked position.
See Our Troubleshooting HOW-TO VIDEO
http://bit.ly/2yAdZn7
VIDEO
IF THE FILL VALVE:
• DOES NOT TURN ON
• WON’T TURN OFF
• WON’T REFILL TANK
To Next Page
