6

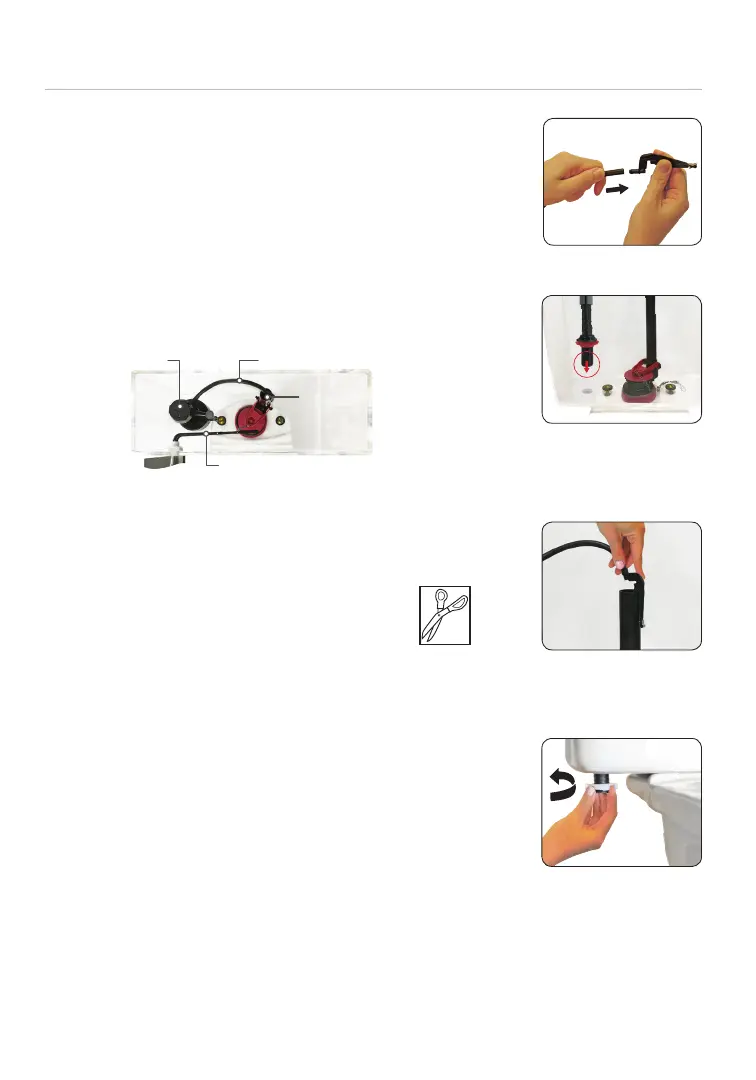

STEP 4: INSTALL NEW FILL VALVE
D: INSTALL LOCKNUT
Screw locknut to the right
(counterclockwise) onto fill valve shank
(below tank).
*Hand-tighten only. DO NOT OVER TIGHTEN.
A: ATTACH REFILL CLIP TO OTHER
END OF REFILL TUBE
B: INSERT FILL VALVE
Position refill tube to face flush valve
making sure fill valve parts do not
interfere with lever arm.
TOP
DOWN
VIEW
Refill Tube
Lever Arm
Overflow
Pipe
Fill Valve
RIGHT
*
Over tightening may crack the fill valve or tank causing flooding. Make sure the float cup
does not touch the tank walls or tank lever and flush valve.
C: ATTACH REFILL CLIP TO
OVERFLOW PIPE
Note: If refill tube is too long to
fit inside tank with lid closed,
remove refill tube from fill valve
refill port, cut tube, and
reattach to port.
Scissors
(Optional)
To Next Page
