MegOhmMeter
Using the Meter
13
To measure insulation resistance, do the following:

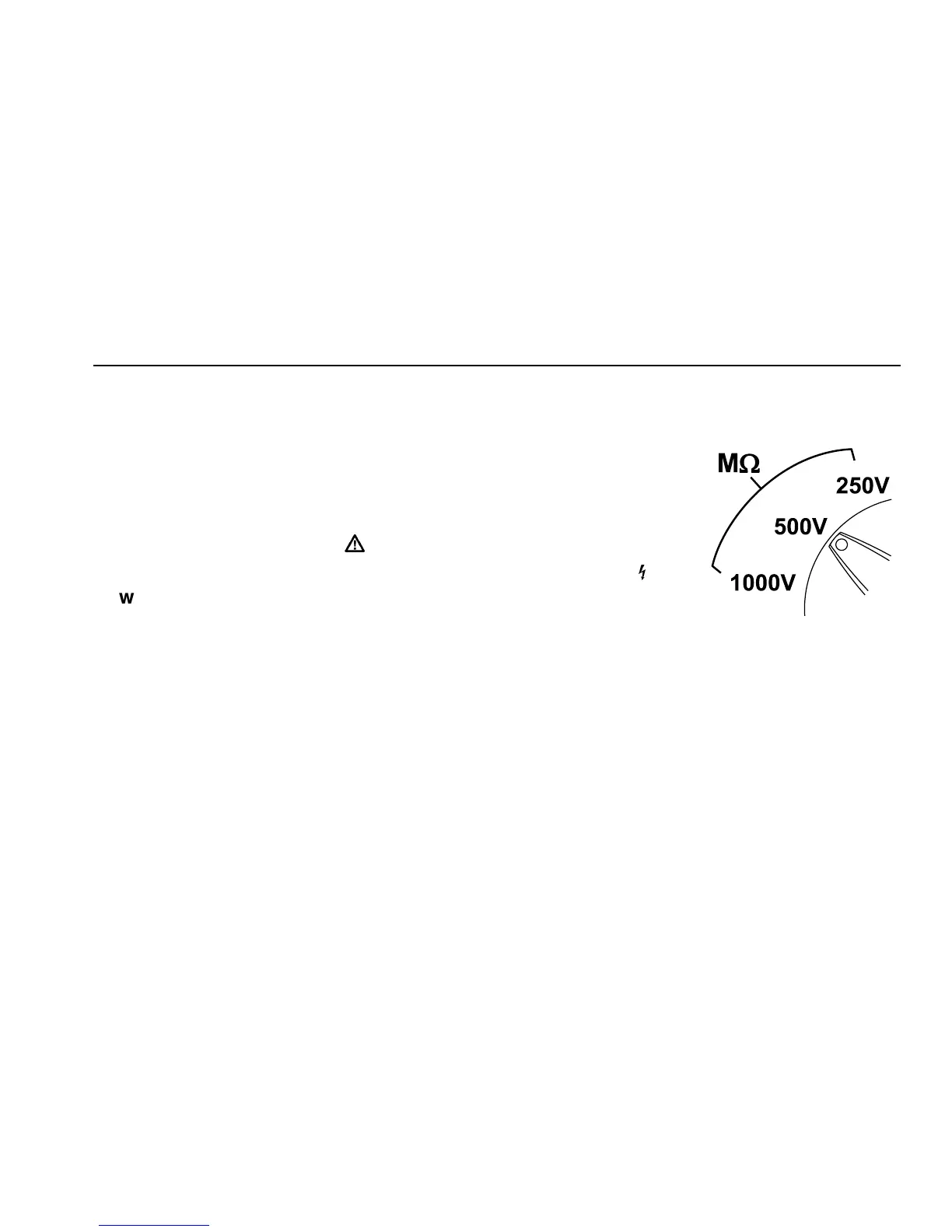

1. Select the test voltage.
2. Connect the probes to the circuit to be measured.
The meter automatically detects if the circuit is energized,
and displays the detected voltage.
W
Warning
A repetitive beep and the flashing high voltage symbol (
Y
)
warn the user if voltage more than 30 V ac or dc is present.
If the voltage is > 30 V ac or dc, remove the voltage from the
circuit under test before proceeding with the next step.
acf05f.eps
3. Push and hold the TEST button. The upper left display shows the test voltage applied
to the circuit under test. The main display shows the resistance.
Note
The display shows - - - - until the TEST button is pushed.
