Instrument Overview
See Figure 1 for a description of each of the Product
terminals. See Figure 2 for a description of the Product
display.

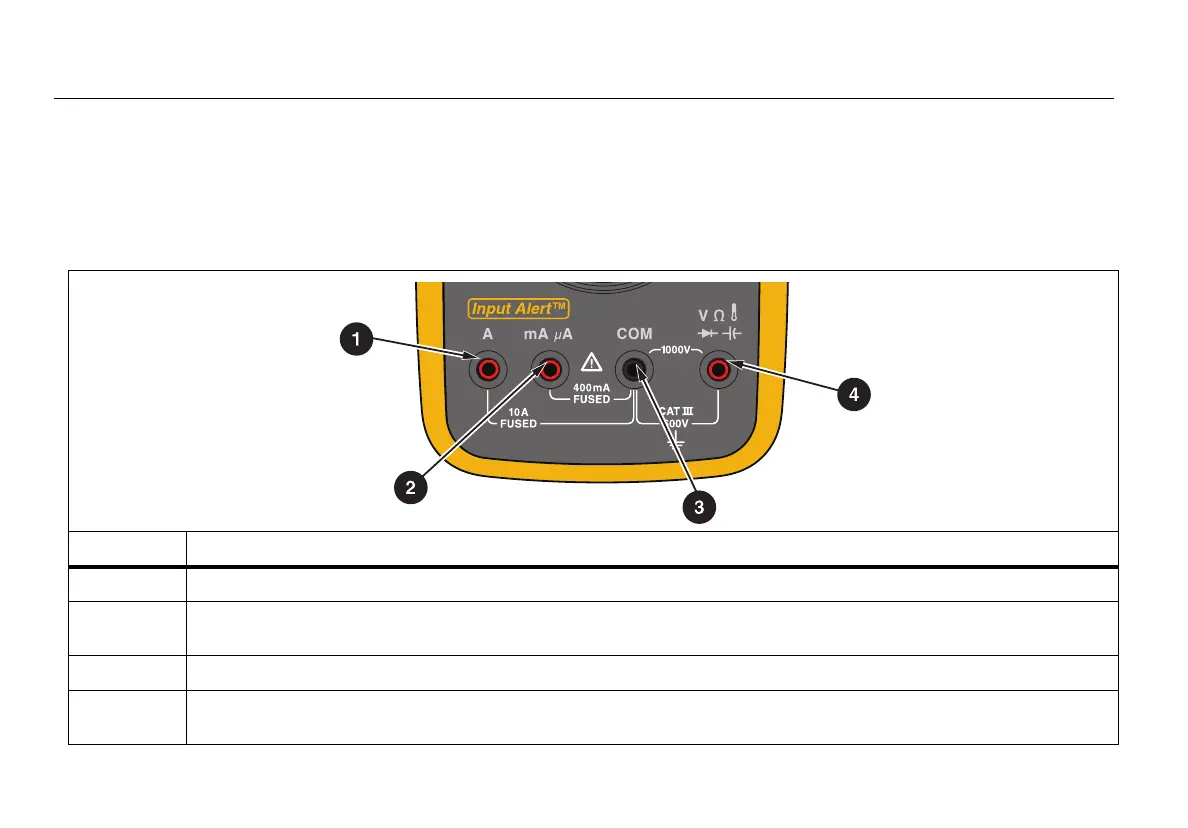

Figure 1. Terminals
Item Description
A
Input terminal for ac and dc current measurement to 10 A and frequency (17B MAX only) measurements.
B
Input terminal for ac and dc microamp and milliamp measurements to 400 mA and frequency (17B MAX only)
measurements.
C
Common (return) terminal for all measurements.
D
Input terminal for voltage, resistance, continuity, diode, capacitance, frequency (17B MAX only), duty cycle
(17B MAX only), and temperature (17B MAX only) measurements.
