Fluke 1625 User Manual

Earth/Ground Tester
Procedure of Measurements
43
R
RA
R
Earth/Ground Resistance 300k
AC
Resistance
300k
DC Low Resistance 3 k
CHANGE
ITEM
SELECT
START
TEST
DISPLAY
MENU
H/C2
S/P2
ES/P1
E/C1
4 POLE
3 POLE
4 POLE
2 POLE
2 POLE
4 POLE
OFF
3 POLE
EARTH / GROUND TESTER
1625
edw017.eps

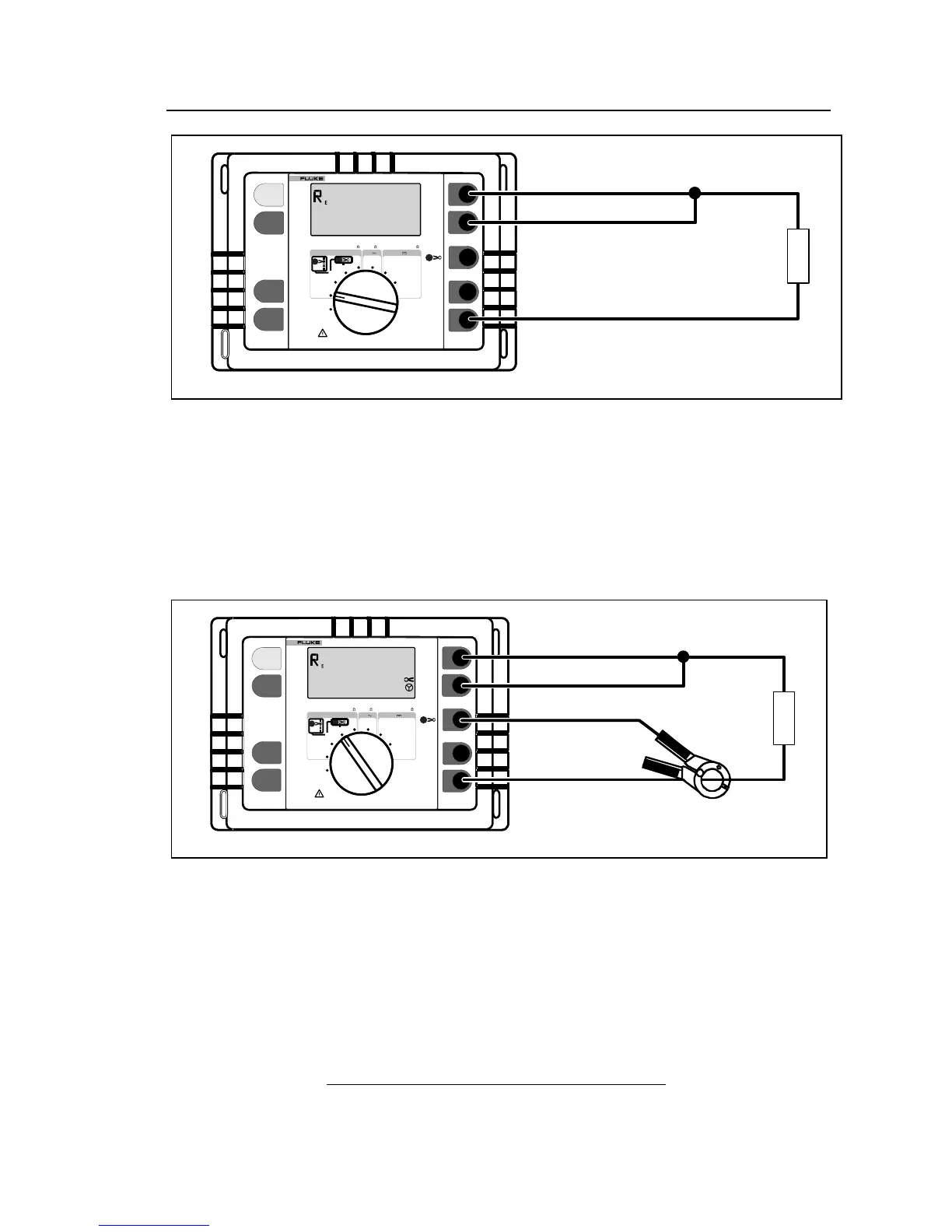

Figure 14. Correcting Clip-on Transformer Errors
2. Turn central rotary switch to position "A RE 3pole".
3. Press "START TEST"-button and note result of RE value.
4. Connect clip-on transformer.
R
RA
R
Earth/Ground Resistance 300k
AC
Resistance
300k
DC Low Resistance 3 k
CHANGE
ITEM
SELECT
START
TEST
DISPLAY
MENU
H/C2
S/P2
ES/P1
E/C1
4 POLE
3 POLE
4 POLE
2 POLE
2 POLE
4 POLE
OFF
3 POLE
EARTH / GROUND TESTER
1625
edw018.eps
5. Turn central rotary switch to position "A RE 3pole".
6. Press "START TEST" again.
If the thus measured value R
E
deviates from the R
E
value determined without
clip-on transformer by more than 5 %, adjust the clip-on transformation ratio
(tr) correspondingly:
)(
)(
meronTransfprpwithoutcliR
merontransforwithclipR
troldtrnew
E
E
−
−
×=

Fluke 1625 Specifications

General

Storage Temperature	-20 °C to 60 °C
Testing Methods	3-pole fall-of-potential, 4-pole
Measurement Frequency	128 Hz
Power Supply	6 x 1.5 V AA batteries or optional AC adapter
Safety Rating	CAT II 300 V
Safety Standards	IEC 61010-1
