1625
Users Manual
68
Operation

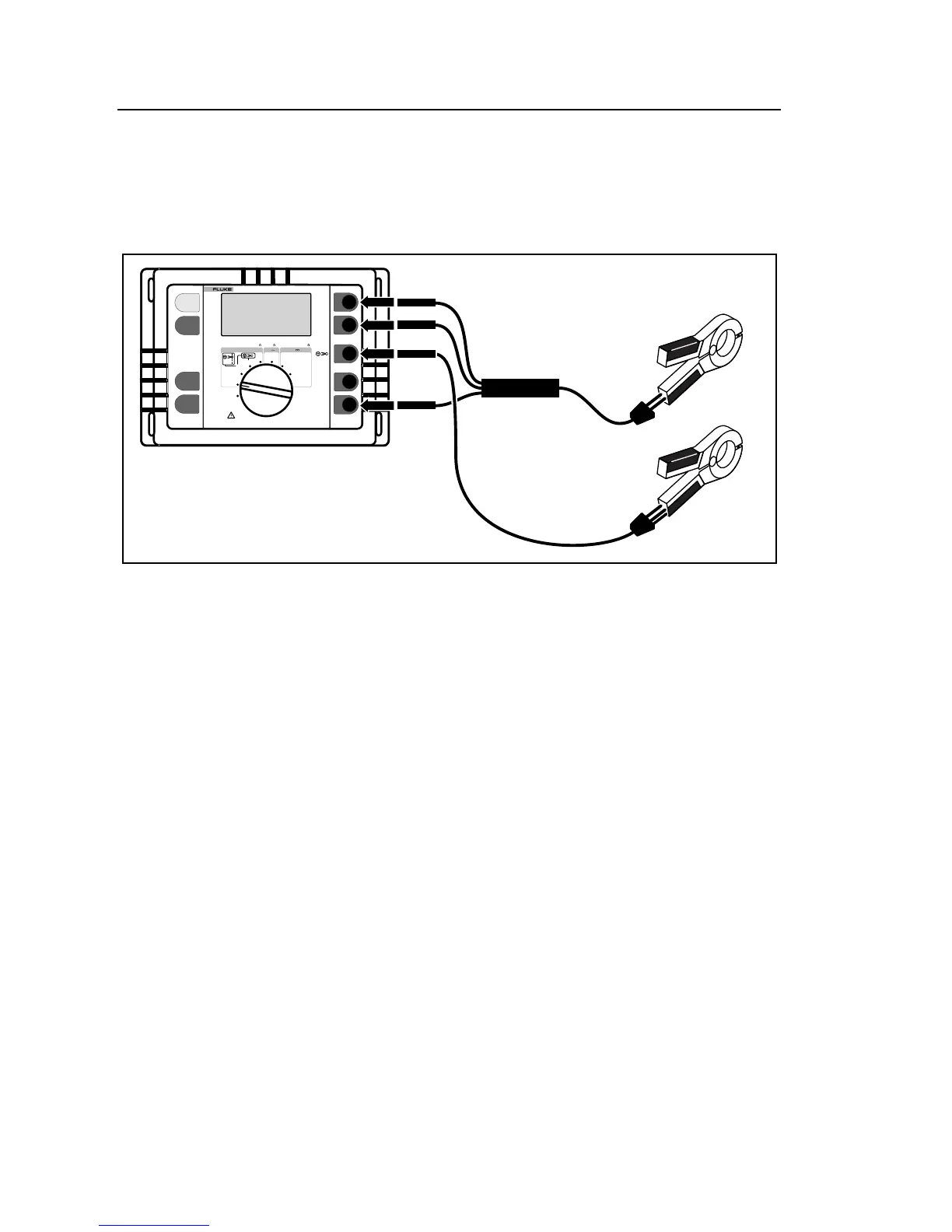

Connect the adapter according to the diagram and the designations E, S and H
(C1, P1 and P2 for US-version) to the tester and to a current clamp.
R
RA
R
Earth/Ground Resistance 300k
AC
Resistance
300k
DC Low Resistance 3 k
CHANGE
ITEM
SELECT
START
TEST
DISPLAY
MENU
H/C2
S/P2
ES/P1
E/C1
4
POLE
3
POLE
4
POLE
2
POLE
2
POLE
4
POLE
OFF
3
POLE
EARTH / GROUND TESTER
1625
H
EI-162X
Red
EI-162AC
Black
S
E
edw063.eps
Use the test cable contained in the set to connect the second current clamp to
the socket. Ensure that connections are in the correct polarity. Turn the rotary
switch of the tester to position
R
E
D 3 pole.
Note
Use only current transformers referred to in this manual.
Clamp both transformers around the ground conductor to be tested.
Note
Try to have a distance > 10 cm between the clamps for optimal re-
sults.
