Procedure of Measurements
51
Turning the central rotary switch for a short moment deletes the line
compensation again.
R
RA
R
Earth/Ground Resistance 300k
AC
Resistance
300k
DC Low Resistance 3 k
CHANGE
ITEM
SELECT
START
TEST
DISPLAY
MENU
H/C2
S/P2
ES/P1
E/C1
4 POLE
3 POLE
4 POLE
2 POLE
2 POLE
4 POLE
OFF
3 POLE
EARTH / GROUND TESTER
1625
edw026.eps

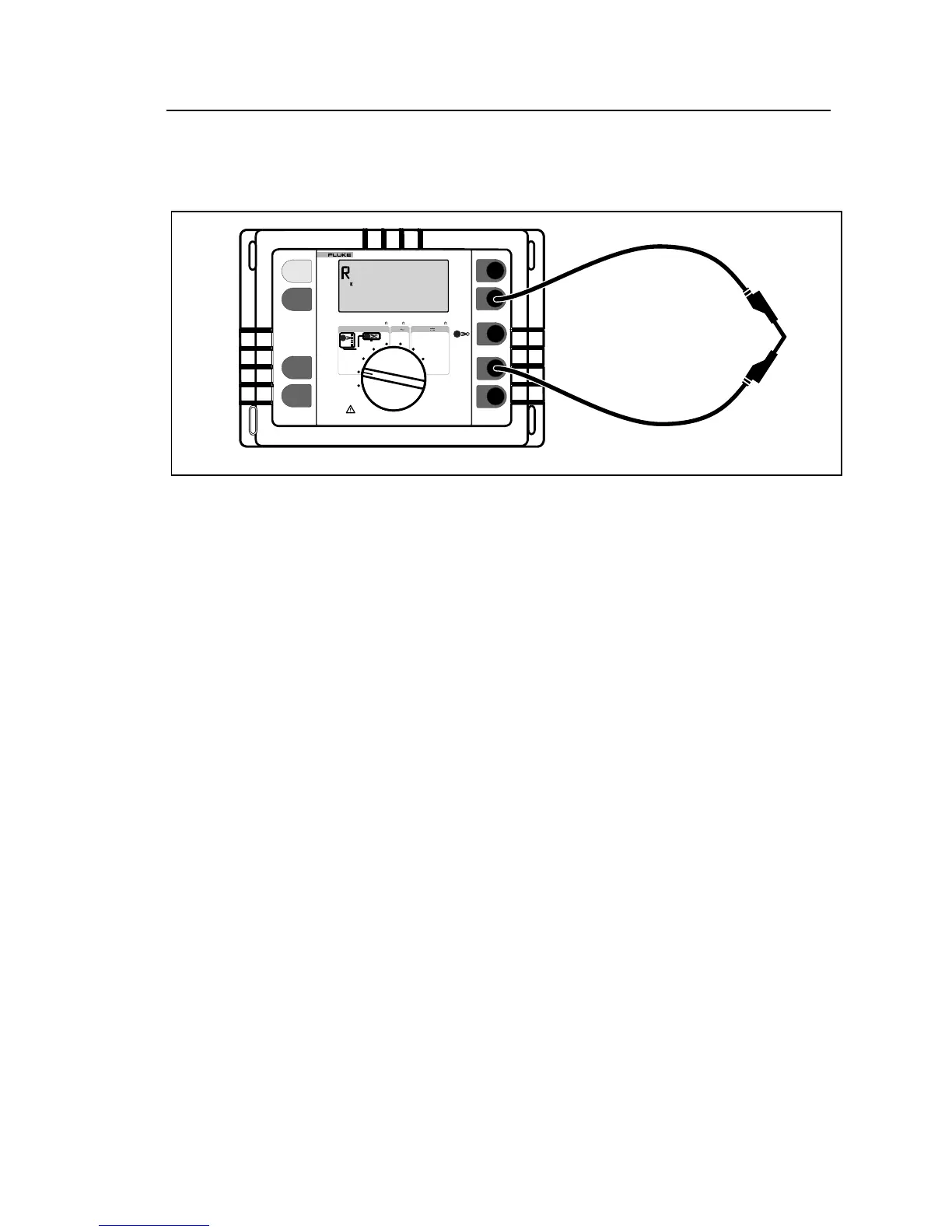

Figure 20. Compensation of Measuring Lead Resistance
Changing of All Data Settings with Personalized CODE
With this function (FM, UM-Limit, Limit, beeper, ratio, R*, F*) limit- and set
values can be programmed which keeps them memorized even if the instru-
ment is switched ON/OFF. This feature enables the operator to create an in-
strument set-up with customer defined settings according to the specific need.
Settings can only be made in the respective functions:

Fluke 1625 Specifications

General

Storage Temperature	-20 °C to 60 °C
Testing Methods	3-pole fall-of-potential, 4-pole
Measurement Frequency	128 Hz
Power Supply	6 x 1.5 V AA batteries or optional AC adapter
Safety Rating	CAT II 300 V
Safety Standards	IEC 61010-1
