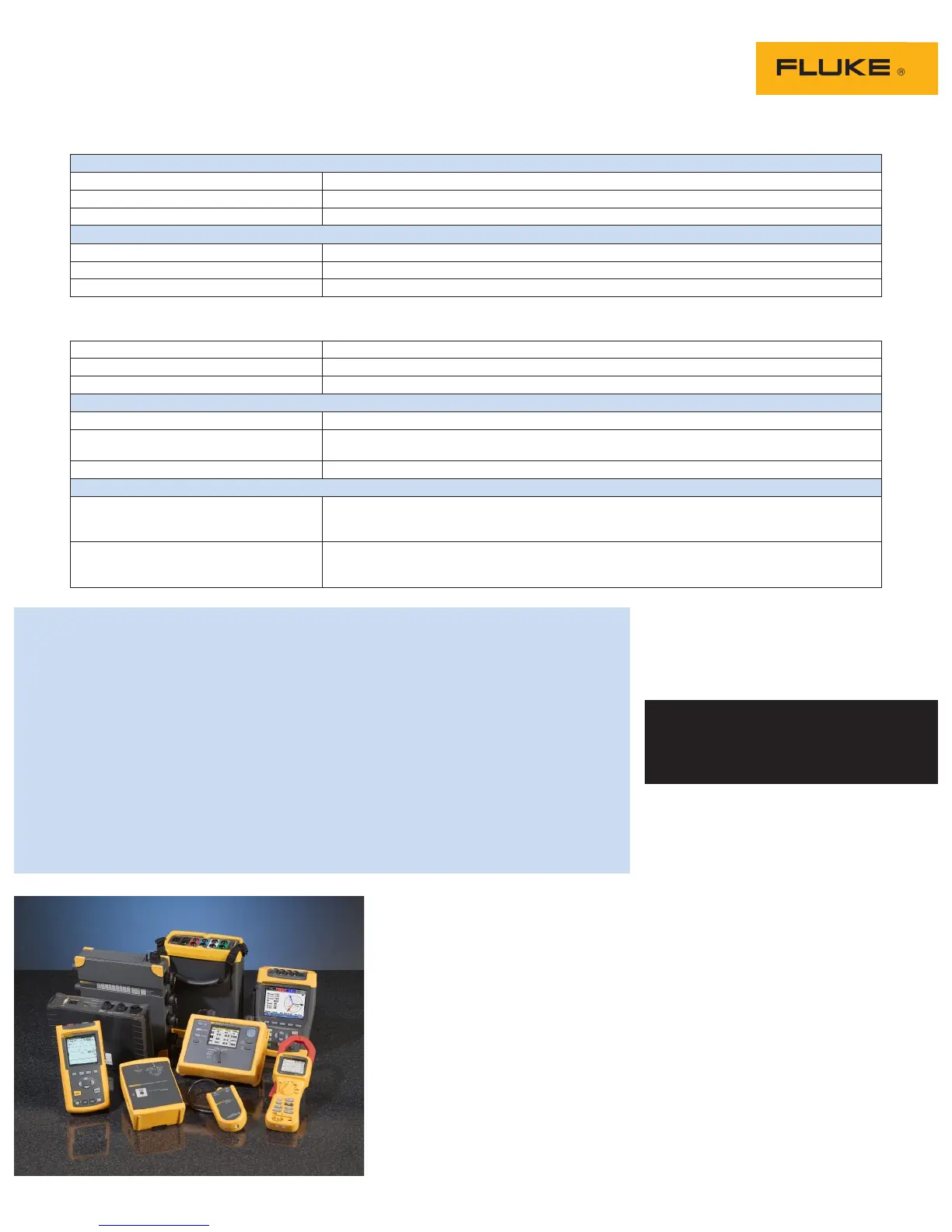

Fluke 1750 Technical Data

8 Fluke Corporation Fluke 1750 Three-Phase Power Recorder
External Interface Specifications
LAN interface
Connector
RJ-45
Speed and type
10/100 Base-T, auto MDIX
Communications protocol
TCP/IP over Ethernet
Wireless controller interface
Connection
wireless (2.4 GHz radio)
Speed
up to 700 kbit/second
Communications protocol
Bluetooth SPP
Environmental and safety specifications
Operating environment
Indoors or in covered area outdoors, up to 2000 m altitude (for compliance to IEC61010 standard)
Storage temperature and humidity
-20 °C to 50 °C, 80 % RH max, non-condensing
Operating temperature and humidity
0 °C to 40 °C, 80 % RH max, non-condensing
Maximum rated working voltage
Voltage terminals
1100 V rms
Voltage durability
5550 V rms ac for 1 minute, between voltage input terminals, voltage input terminals and current
probes, and voltage input terminals and case (50/60 Hz, 1 mA sense current)
Enclosure protection
IP30 (per EN 60529)
Standards conformance
EMC
EN 61326-1:1997+A1:1998 Class A
EN 61000-3-2:1995+A1:1998+A2:1998
EN 61000-3-3:1995
Safety
EN 61010-1 2nd Edition; 2000
Voltage input unit: Contamination Level 2, Overvoltage Category 1000 V CAT III, 600 V CAT IV
(anticipated overvoltage: 8000 V)
Ordering information
Fluke-1750 Three-Phase Power
Recorder
Includes:
•
1750 acquisition unit
•
PDA wireless “front panel interface”
and charger power plug adapters
•
4 - 400 A current probes (3140R)
•
5 test leads and clips
•
SD memory card
•
Fluke Power View and Fluke Power
Analyze software
•
Power cord with international plug set
•
Ethernet cable
•
Color localization set
•
Printed Getting Started manual
•
Product CD with software and users
manual PDF
•
Soft carrying case
Fluke offers a full suite of power qual-
ity test tools to locate, predict, prevent
and troubleshoot power problems.
•
Handheld troubleshooters for in-
stant analysis
•
Ready-to-use power loggers
•
Comprehensive power quality re-
corders
•
Power calibrators and standards
backed by Fluke metrology
expertise
The Fluke power quality set of
products offers the highest level of
performance and maintains the Fluke
promise of rugged and reliable test
tools.
Fluke Corporation
PO Box 9090, Everett, WA 98206 U.S.A.
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa +31 (0) 40 2675 200 or
Fax +31 (0) 40 2675 222
In Canada (800)-36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com
©2006-2009 Fluke Corporation. Windows
®
is a
registered trademark of Microsoft Corporation.
Specifications subject to change without notice.
Printed in U.S.A. 10/2009 2428201F D-EN-N
Modification of this document is not permitted
without written permission from Fluke Corporation.
Fluke. Keeping your world
up and running.
®
To learn more, contact Power
Quality customer support, in Seattle,
WA, USA at 1-888-257-9897 or
e-mail fpqsupport@fluke.com.
Fluke-1750 Three-Phase Basic Power Recorder
Includes items above with the exception of the
4 - 400 A current probes (3140R)

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
