Fluke 23 Instruction Sheet

77/75/23/21 English Instruction Sheet
Page 4
Standby
If the meter is on but is inactive for an hour (20 minutes in diode
test), the display goes blank and displays four bar graph
segments. To resume operation, turn the rotary switch or press a
button.

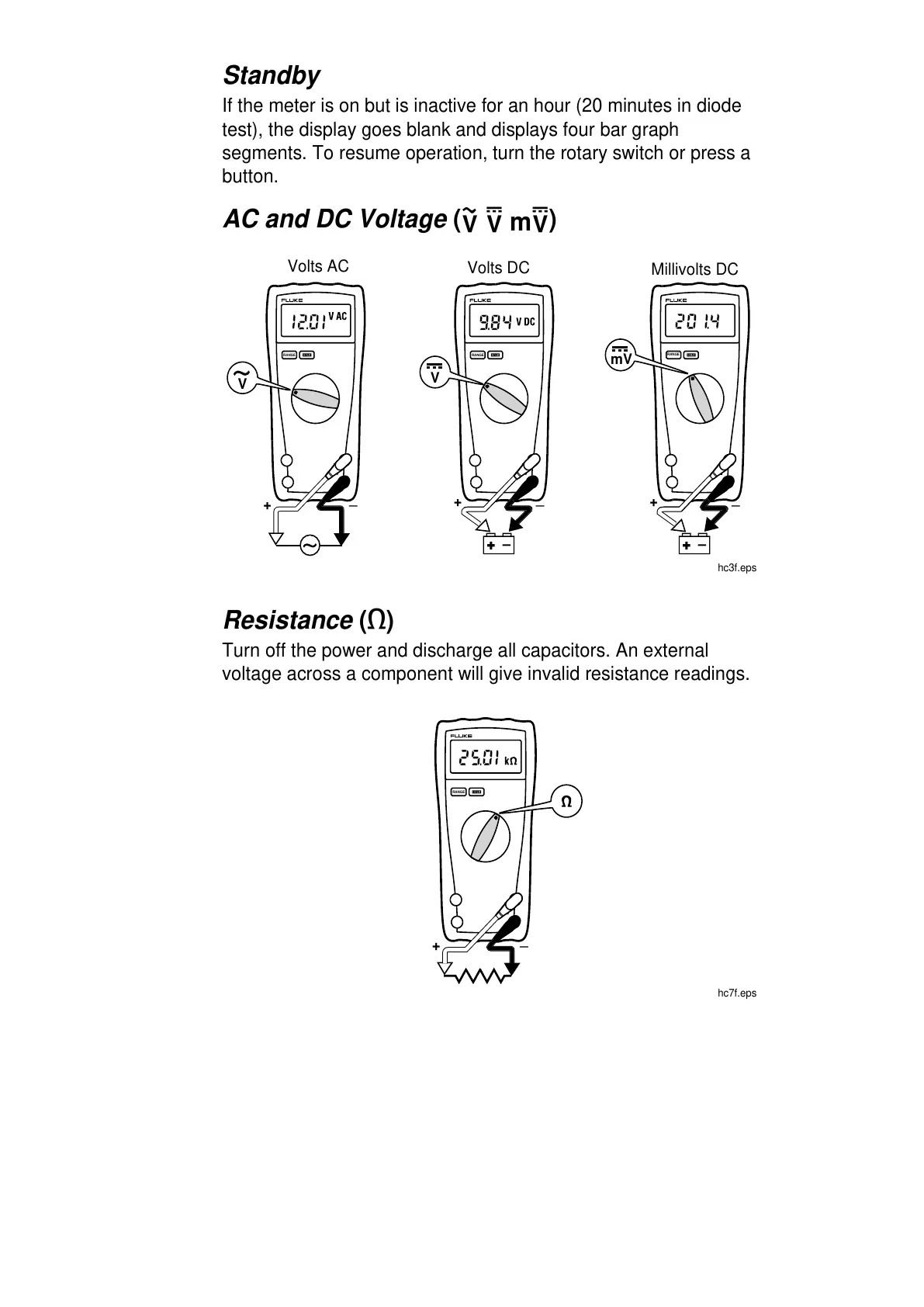

AC and DC Voltage (K L
m
L)
RANGE
CAT
CAT
+
__
RANGE
CAT
CAT
+
_
RANGE
CAT
CAT
+
Volts AC
Volts DC
Millivolts DC
V
V
mV
hc3f.eps
Resistance (e)
Turn off the power and discharge all capacitors. An external
voltage across a component will give invalid resistance readings.
RANGE
CAT
CAT
+
_
hc7f.eps
All manuals and user guides at all-guides.com

Fluke 23 Specifications

General

Type	Digital Multimeter
Display	LCD
DC Voltage Range	0.1 mV to 1000 V
Continuity Check	Yes
Diode Test	Yes
Power Supply	9V Battery
Weight	340 g
DC Current Range	0.1μA to 10A
AC Current Range	0.1μA to 10A
Resistance Range	0.1 Ω to 20 MΩ
Battery Life	200 hours
Safety Rating	CAT III 600V
