Fluke 23 Instruction Sheet

77/75/23/21 English Instruction Sheet
Page 8

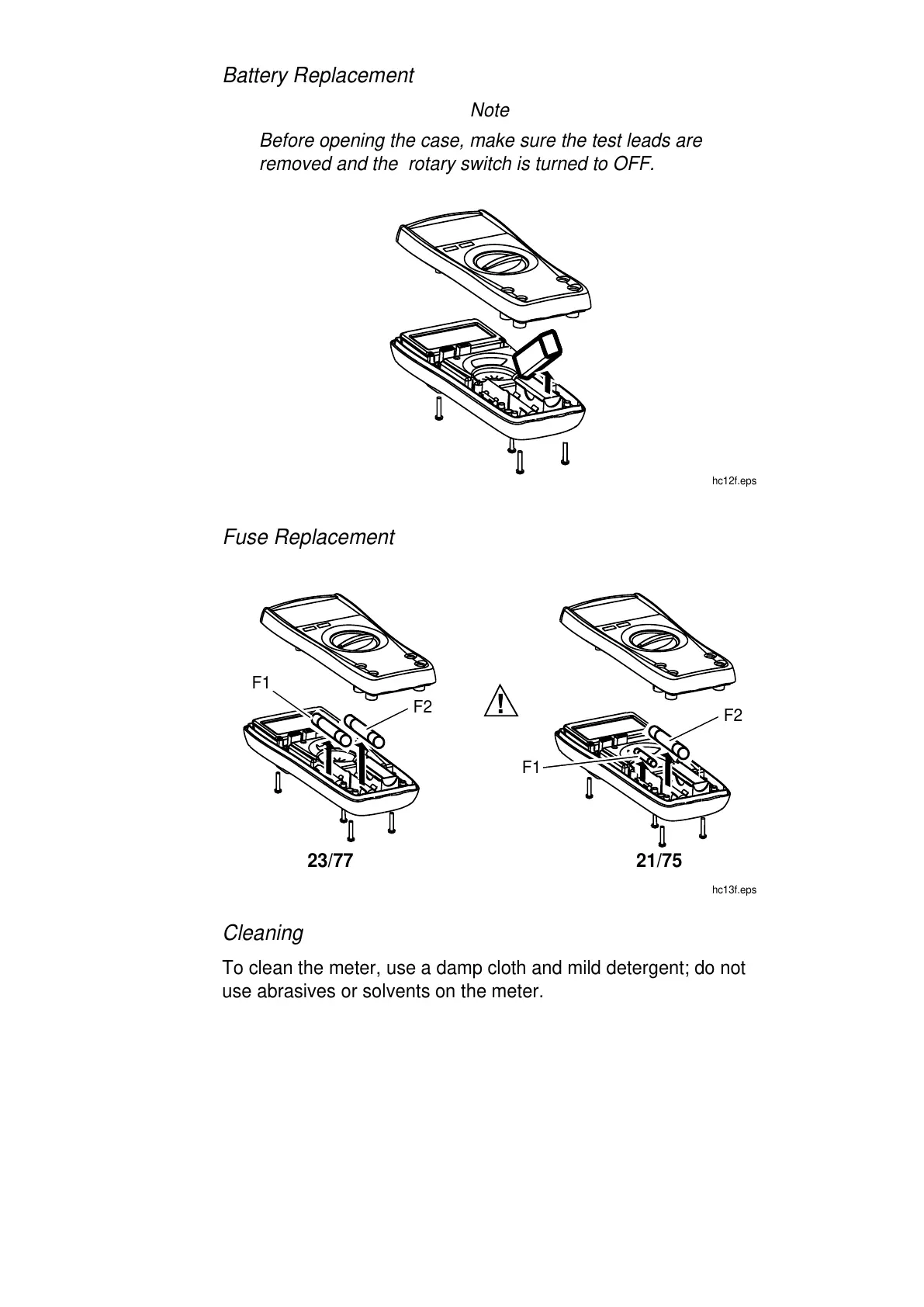

Battery Replacement
Note
Before opening the case, make sure the test leads are
removed and the rotary switch is turned to OFF.
hc12f.eps
Fuse Replacement
F2
F2
F1
F1
23/77 21/75
hc13f.eps
Cleaning
To clean the meter, use a damp cloth and mild detergent; do not
use abrasives or solvents on the meter.
All manuals and user guides at all-guides.com

Fluke 23 Specifications

General

Type	Digital Multimeter
Display	LCD
DC Voltage Range	0.1 mV to 1000 V
Continuity Check	Yes
Diode Test	Yes
Power Supply	9V Battery
Weight	340 g
DC Current Range	0.1μA to 10A
AC Current Range	0.1μA to 10A
Resistance Range	0.1 Ω to 20 MΩ
Battery Life	200 hours
Safety Rating	CAT III 600V
