Fluke 23 Instruction Sheet

77/75/23/21 English Instruction Sheet

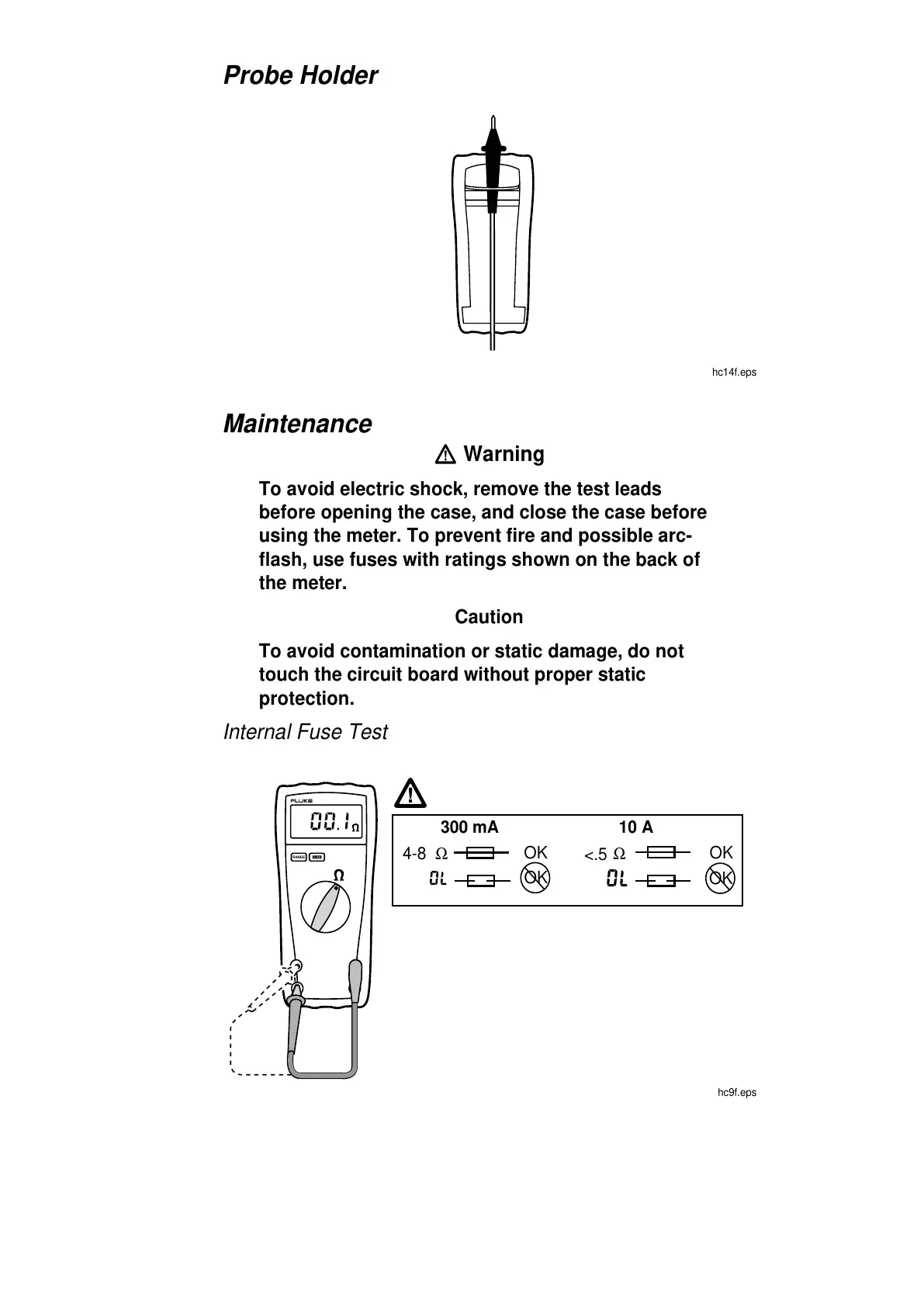

Page 7
Probe Holder
hc14f.eps
Maintenance
W Warning
To avoid electric shock, remove the test leads
before opening the case, and close the case before
using the meter. To prevent fire and possible arc-
flash, use fuses with ratings shown on the back of
the meter.
Caution
To avoid contamination or static damage, do not
touch the circuit board without proper static
protection.
Internal Fuse Test
RANGE
10 A 300 mA
Ω
<.5
Ω
4-8
OKOK
OK
OK
hc9f.eps
All manuals and user guides at all-guides.com

Fluke 23 Specifications

General

Type	Digital Multimeter
Display	LCD
DC Voltage Range	0.1 mV to 1000 V
Continuity Check	Yes
Diode Test	Yes
Power Supply	9V Battery
Weight	340 g
DC Current Range	0.1μA to 10A
AC Current Range	0.1μA to 10A
Resistance Range	0.1 Ω to 20 MΩ
Battery Life	200 hours
Safety Rating	CAT III 600V
