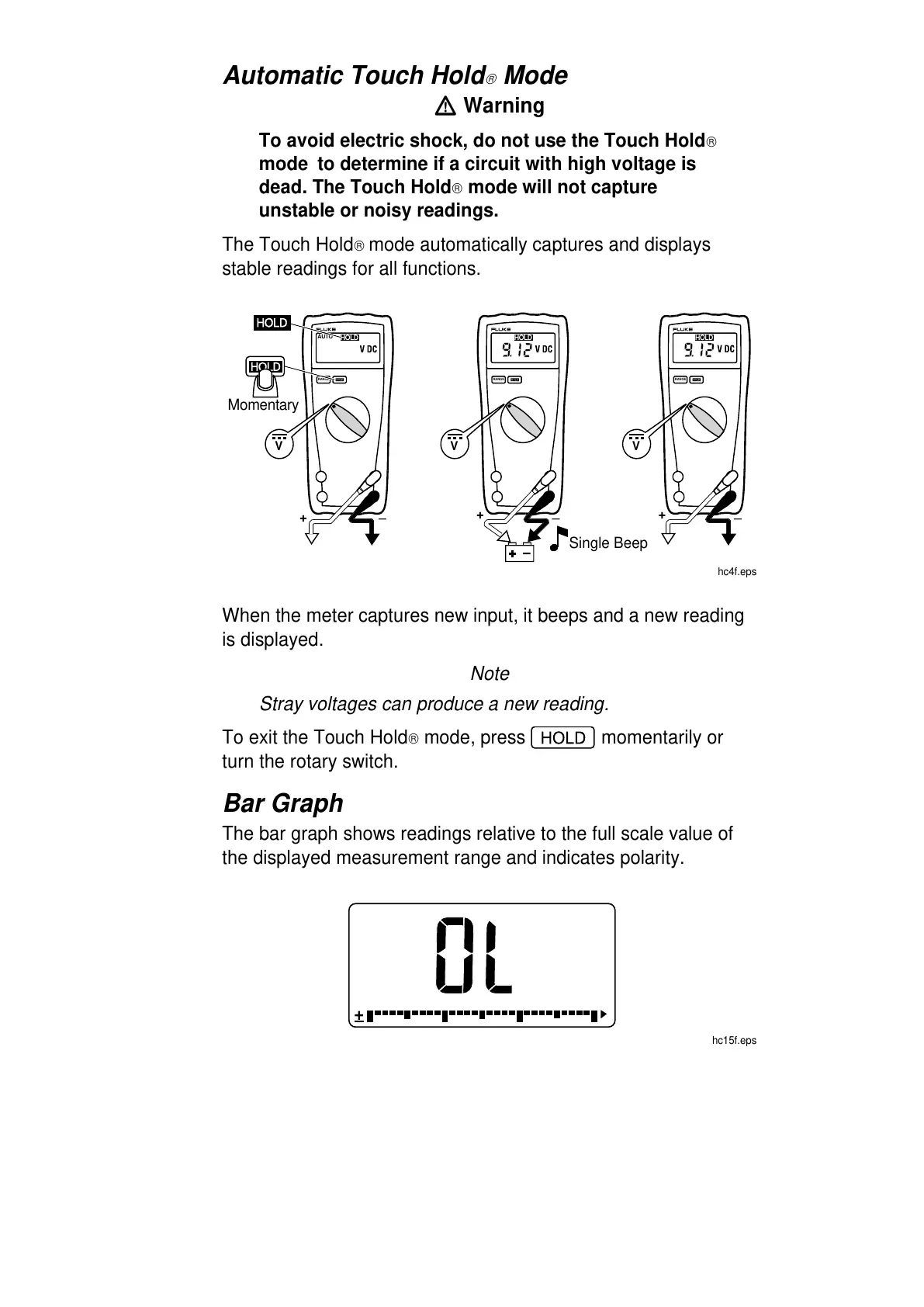

Automatic Touch Hold  Mode
W Warning
To avoid electric shock, do not use the Touch Hold
mode to determine if a circuit with high voltage is
dead. The Touch Hold
 mode will not capture
unstable or noisy readings.
The Touch Hold mode automatically captures and displays
stable readings for all functions.
Single Beep
RANGE
+
__
RANGE
+
_
RANGE
CAT
CAT
+
HOLD
HOLD
HOLD HOLD
AUTO
Momentary
HOLD
V V V
hc4f.eps
When the meter captures new input, it beeps and a new reading
is displayed.
Note
Stray voltages can produce a new reading.
To exit the Touch Hold mode, press momentarily or
turn the rotary switch.
Bar Graph
The bar graph shows readings relative to the full scale value of
the displayed measurement range and indicates polarity.
hc15f.eps
All manuals and user guides at all-guides.com

Fluke 23 Specifications

General

Type	Digital Multimeter
Display	LCD
DC Voltage Range	0.1 mV to 1000 V
Continuity Check	Yes
Diode Test	Yes
Power Supply	9V Battery
Weight	340 g
DC Current Range	0.1μA to 10A
AC Current Range	0.1μA to 10A
Resistance Range	0.1 Ω to 20 MΩ
Battery Life	200 hours
Safety Rating	CAT III 600V
