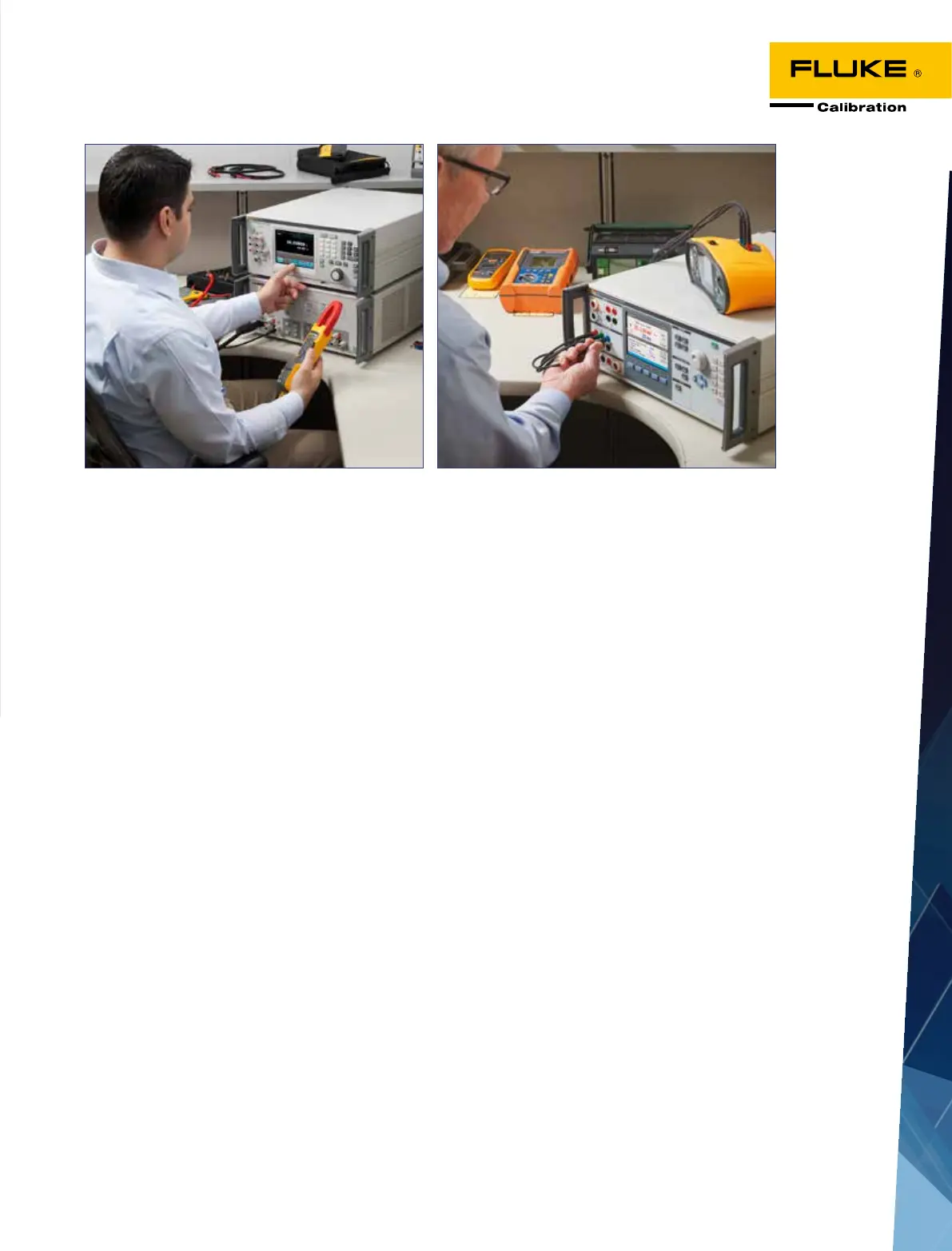

Page #5 background image
Product highlights
5730A Multifunction Calibrator
The new gold standard in electrical
calibration
The 5730A High Performance Multifunction
Calibrator is the culmination of years of engineer-
ing development, customer research and industrial
design, to bring to market the new gold standard
in multifunction calibration. Like its predeces-
sors, the 5700A and 5720A calibrators, the 5730A
calibrates a wide range of digital multimeters, up to
long-scale 8.5 digit DMMs, as well as a wide-range
RF multimeters. This new model features improved
specifications that will help you increase test un-
certainty ratios (TURs) and improve test confidence.
6.5 inch VGA capacitive touchscreen with full
color graphical user interface
Menus and functions displayed in choice of
nine languages
Visual Connection Management™ terminals guide
cable connections
Extended operational reliability through the use
of modern analog and digital components and
state-of-the-art circuit board technologies
Artifact Calibration—the process of using just
three external standards—10 V, 1 ohm and
10 k ohm, to automatically adjust the entire
instrument—optimizes performance to the best
specified performance
Cal Check—a process that tests all function
and ranges for any drift since the most recent
calibration—provides ongoing confidence in
performance. Any output drift is measured and
evaluated it with respect to specification.
Compatible with 52120A and 5725A amplifiers
Full MET/CAL
®
compatibility with 5700A
and 5720A procedures (MET/CAL versions 7.3
and above)
30 MHz and 50 MHz wideband output
options available
5322A Electrical Safety Tester Calibrator
Calibrate your entire electrical safety
tester workload even more easily and
efficiently!
The 5322A Electrical Safety Tester Calibrator
helps calibration technicians comply with new
regulatory standards up to four times faster than
with traditional manual, multiple-product methods.
The 5322A facilitates compliance with exacting
international standards such as the United King-
dom’s BS7671 17th Edition, IEC/EN Standards,
Australia and New Zealand’s AS/NZS 3000 and
Chinese verification/calibration regulations for
various electrical testers.
The 5322A combines many functions into a single
instrument, replacing discrete resistors, decade
boxes and other custom solutions commonly used to
calibrate electrical testers. This single-box solution
speeds and simplifies calibration because users
only need to learn, operate and maintain one cali-
brator rather than multiple instruments. And while
it’s difficult to automate multiple testers, the 5322A
can be automated with MET/CAL™ Calibration
Software—further increasing speed and throughput.
Workload includes insulation resistance testers;
leakage current testers; multifunction installation
testers; portable appliance testers (PATs); continuity
testers and earth (ground) resistance testers;
loop/line impedance testers and ground bond tes-
ters; residual-current device (RCD) or ground fault
current interrupter (GFCI) testers; and hipot testers.
The 5322A is available in multiple models, offering
the flexibility to select the features best suited to
your lab’s workload:
The base 5322A model offers 1.5 kV high
resistance sourcing.
The 5322A/5 offers 5 kV high voltage
resistor sourcing.
www.flukecal.com
3
