Batteries and Measurement

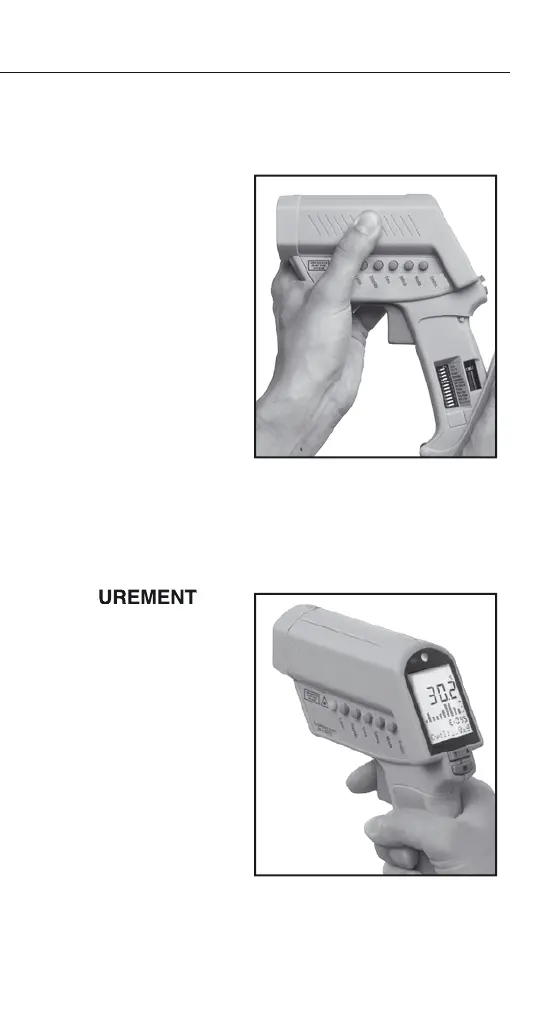

To open the battery
compartment, press
gently on the top part of
the handle
to release
the catch and pivot the
grip as shown in the
figure. Orient the batteries
(two alkaline R6 (AA,
UM3)) positive side up as
shown on the housing.
To take a temperature
measurement, hold the
unit as shown. Aim at the
target. Pull the trigger (F).
The temperature of the
object being measured
is shown on the display
(B).
The temperature will
be displayed for seven
seconds after trigger is
released.
