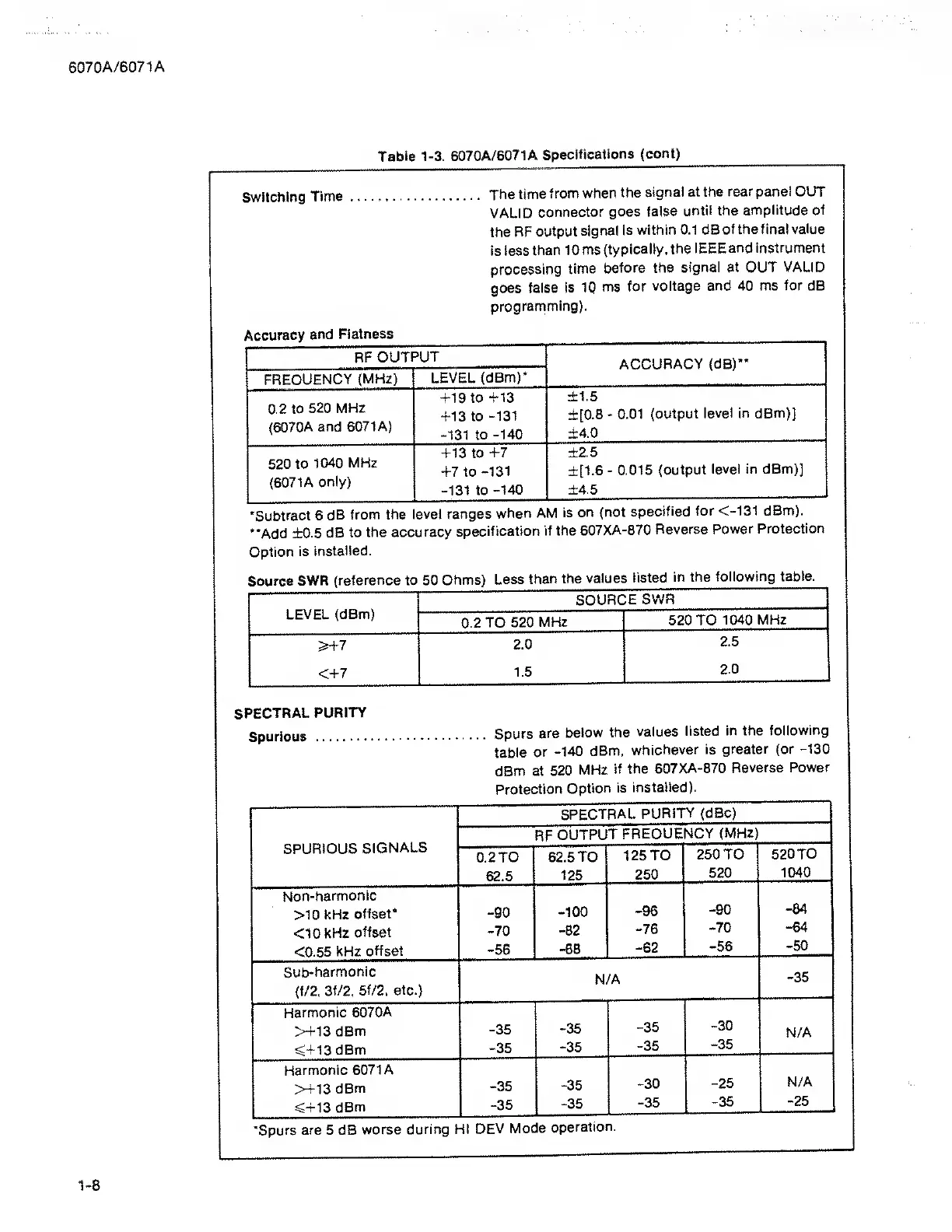

Table 1-3. 6070A/6071A Specifications (cont)
Switching Time
The time from when the signal at the rear pane! OUT
VALID connector goes false until the amplitude of
the RF output signal is within 0.1 dBofthefinal value
is less than 10 ms {typically, the IEEE and instrument
processing time before the signal at OUT VALID
goes false is IQ ms for voltage and 40 ms for dB
programming).
Accuracy and Flatness
RF OUTPUT
ACCURACY (dB)“
FREQUENCY (MHz)
LEVEL (dBm)*
0.2 to 520 MHz
{6070A and 6071 A)
+19 to +13
+13 to -131
-131 to -140
±1.5
±[0.8 - 0.01 (output level in dBm)]
±4.0
520 to 1040 MHz
(6071A only)
+13 to +7
+7 to -131
-131 to -140
±2.5
±[1.6 - 0.015 (output level in dBm)]
±4.5
“Add ±0.5 dB to the accuracy specification if the 607XA-870 Reverse Power Protection
Option is installed.
Source SWR (reference to 50 Ohms) Less than the values listed in the following table.
LEVEL (dBm)
SOURCE SWR
0.2 TO 520 MHz
520 TO 1040 MHz
>i-7
2.0
2.5
<+7
1.5
2.0
SPECTRAL PURITY
Spurious . Spurs are below the values listed in the following
table or -140 dBm, whichever is greater (or -130
dBm at 520 MHz if the 607XA-870 Reverse Power
Protection Option is installed).
SPECTRAL PURITY (dBc)
SPURIOUS SIGNALS
RF OUTPUT FREQUENCY (MHz)
0.2 TO 62.5 TO
125 TO
250 TO
520 TO
62.5
125
250
520
1040
Non-harmonic
-84
>10 kHz offset*
-90
-100
-96
-90
<10 kHz offset
-70
-82
-76
-70
-64
<0.55 kHz offset
-56
-68
-62
-56
-50
Sub-harmonic
N/A
-35
(1/2, 3f/2, 5f/2. etc.)
Harmonic 6070A
>+13 dBm
-35
-35
-35
-30
N/A
<+13 dBm
-35
-35
-35
-35
Harmonic 6071A
>+13 dBm
-35
-35
-30
-25
N/A
<+13 dBm
-35
-35
-35
-35
-25
‘Spurs are 5 dB worse during HI DEV Mode operation.
