6070A/6071A

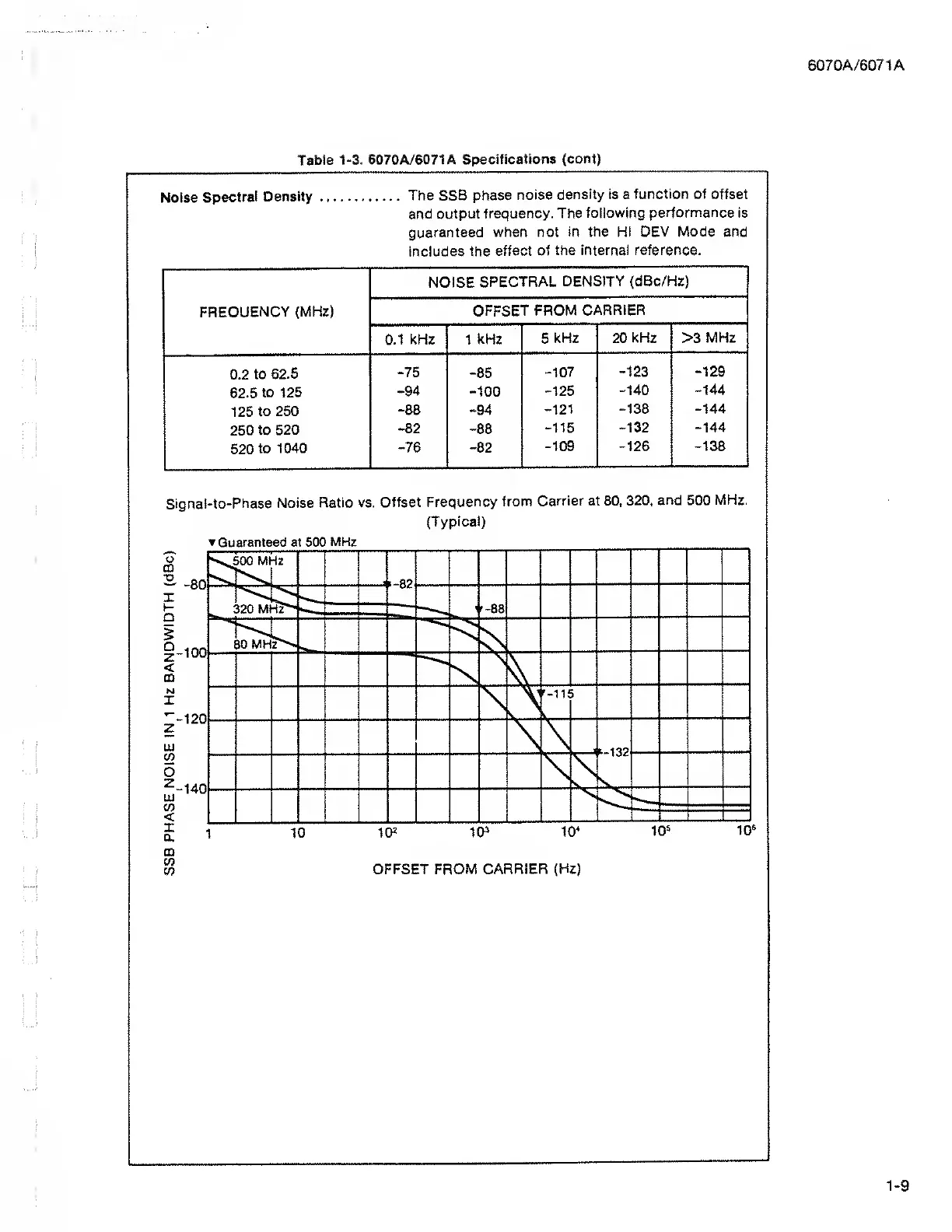

Table 1-3. 6070A/6071A Specifications (cont)
Noise Spectral Density . T he SSB phase noise densit>
The SSB phase noise density is a function of offset
and output frequency. The following performance is
guaranteed when not in the HI DEV Mode and
includes the effect of the internal reference.
NOISE SPECTRAL DENSITY (dBc/Hz)
OFFSET FROM CARRIER
0.1 kHz
1 kHz
5 kHz 20 kHz
■ >3 MHz
-75
-85
-107 -123 : -129
-94
-100
-125
-140 -144
-88 -94
-121
-138 -144
-82
-88
-115
-132 -144
-76 -82
-109 -126 -138
FREQUENCY (MHz)
0.2 to 62.5
62.5 to 125
125 to 250
250 to 520
520 to 1040
Signal-to-Phase Noise Ratio vs. Offset Frequency from Carrier at 80, 320, and 500 MHz.
(Typical)
▼ Guaranteed at 500 MHz
MHz
»80 ^ -’ ‘-82-
--
OFFSET FROM CARRIER (Hz)
