712B
Users Manual
20
Simulate RTDs

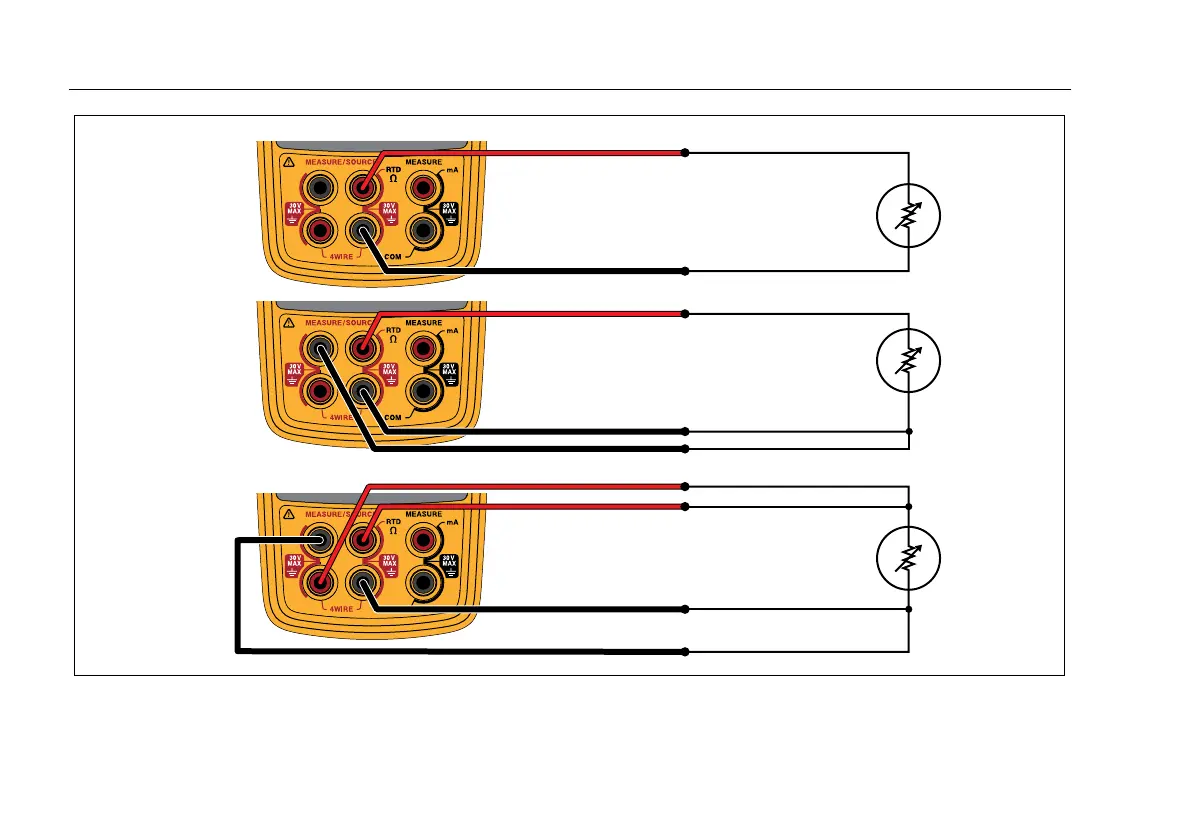

Connect the Product to the instrument under test as shown in Figure 9. Proceed as follows to simulate an RTD:
1. If necessary, push
for Source mode.
2. Push
for the RTD display.
Note
Use the 2W, 3W, and 4W terminals for measurement only, not for simulation. The Product simulates a 2-wire RTD
at its front panel. To connect to a 3-wire or 4-wire transmitter, use the stacking cables to provide the extra wires.
See Figure 9.
3. Push
and to select the temperature you want. Push and to select a different digit to edit.
4. If the Product display shows , the excitation current from your device under test exceeds the limits of the Product.
