7341
Users Guide
4-6
S
Store new set-point, access vernier

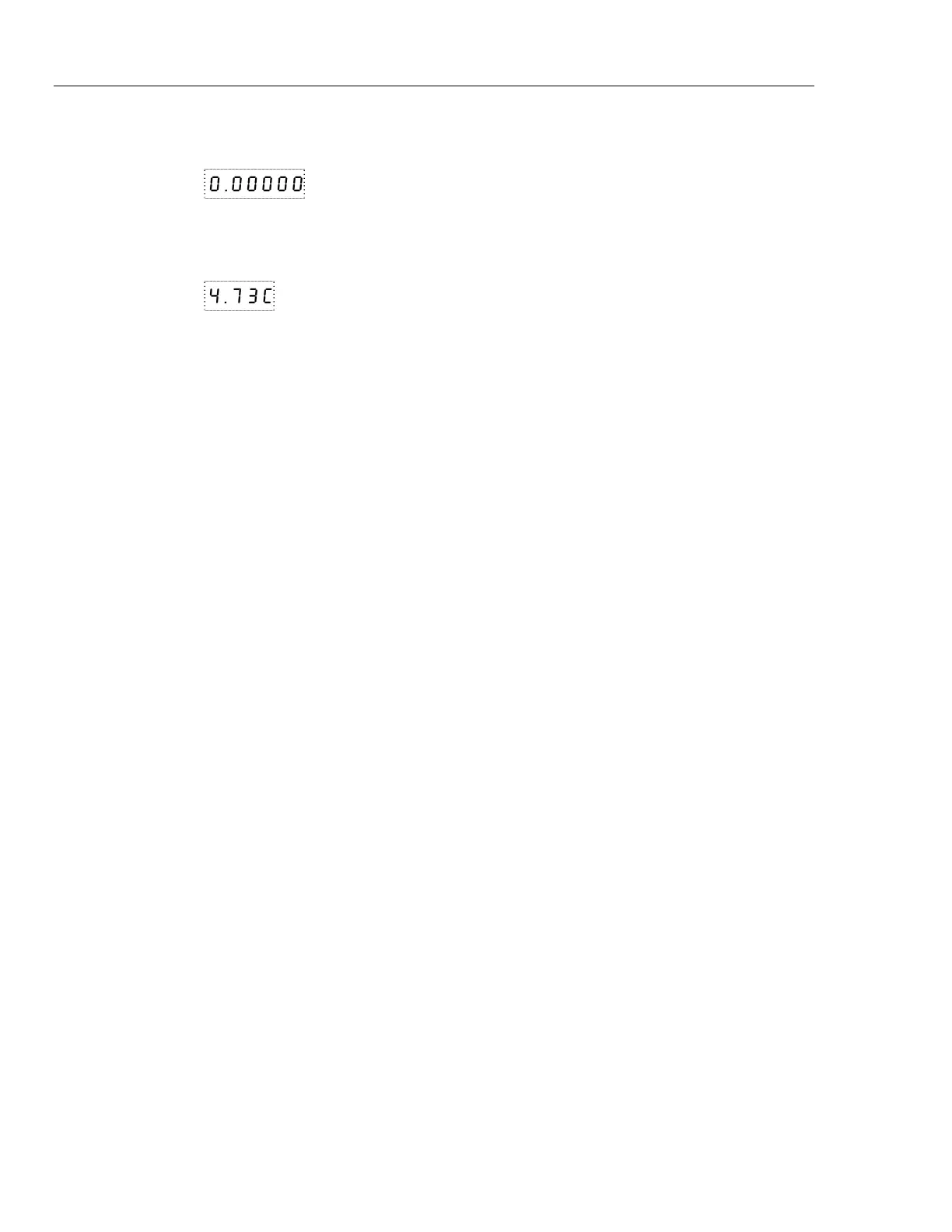

0.00000
Current vernier value
Press “EXIT” and the bath temperature will be displayed again.
E
Return to the temperature display
4.73C
Bath temperature display
The bath heats or cools until it reaches the new set-point temperature. Turn off the
cooling to reach and control at higher temperatures.
When setting the set-point temperature be careful not to exceed the temperature limit of
the bath fluid. The over-temperature cutout should be correctly set for added safety. See
Cutout in Chapter 10.
To obtain optimum control stability adjust the proportional band as discussed in
Proportional Band in Chapter 9.
