Fluke DPM2 Plus - Meter Features

DPM2 Plus
Operators Manual
4
Meter Features
DPM2Plus
PRESSURE
METER
inH
2
0
-13.5~15psi
-13.5~100psi
mmHg
VOLTAGE OUTPUT
0.01 V/psi 100 psi RANGE
0.1 V/psi ON OTHER RANGE
OFF
cmH
2
0
Potentiometer
(display zero adjust)
Use a screwdriver to
adjust if display is
not reading zero when
vented to atmosphere
Liquid Crystal
(LCD)
Ranges
-13.50 to +100.0 psi
-13.50 to +15.50 psi
-374 to +429 in H
2
0
-949 to +1090 cm H
2
0
-698 to +802 mmHg
Pressure Connector
(male Luer-Lok)
Connects to stopcoks
or pressure fittings
Power/Selector
Switch
Turn to select range
Battery Compartment
(on bottom of case)
ehg1.eps

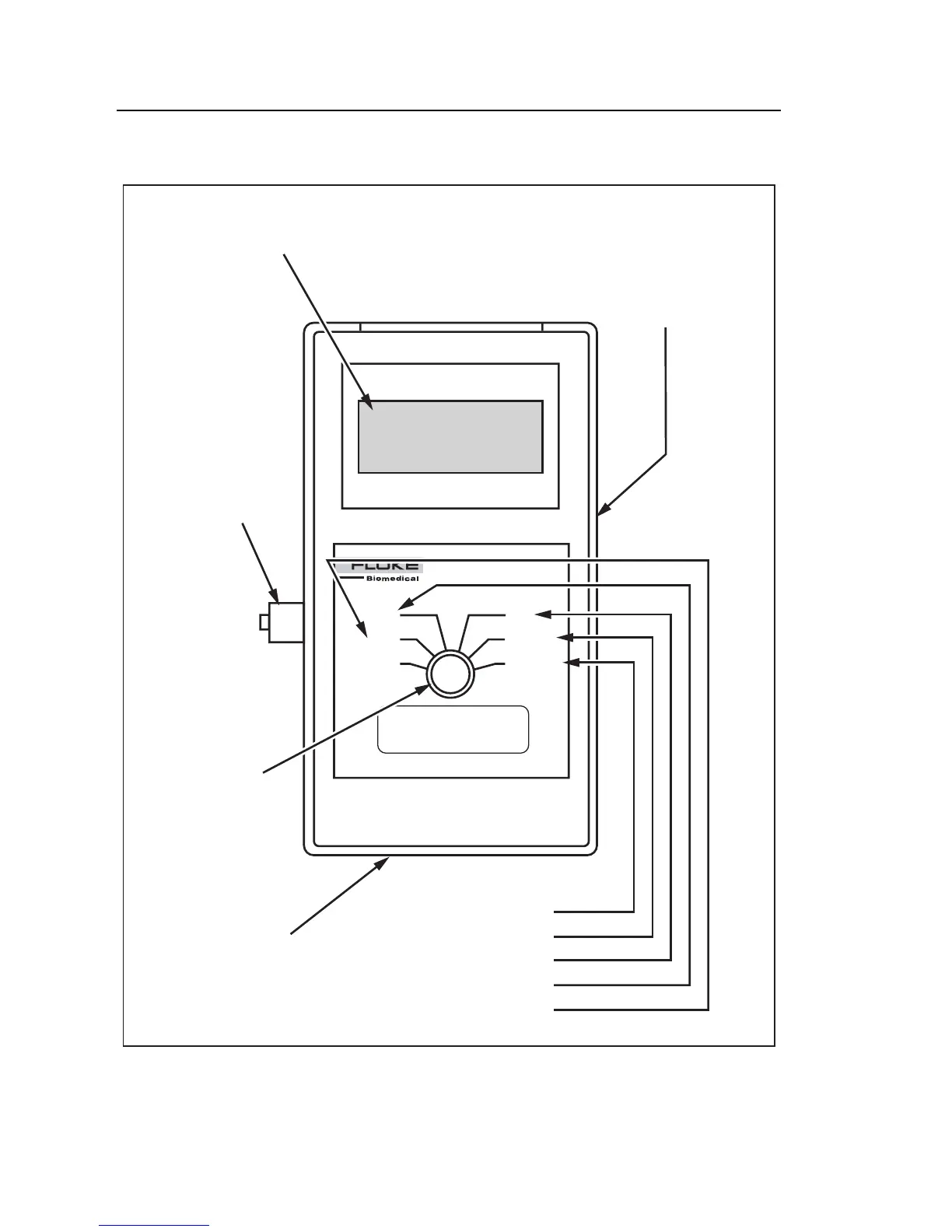

Figure 1. Front panel controls and indicators
