Certifying Fiber Cabling
27
amd49f.eps

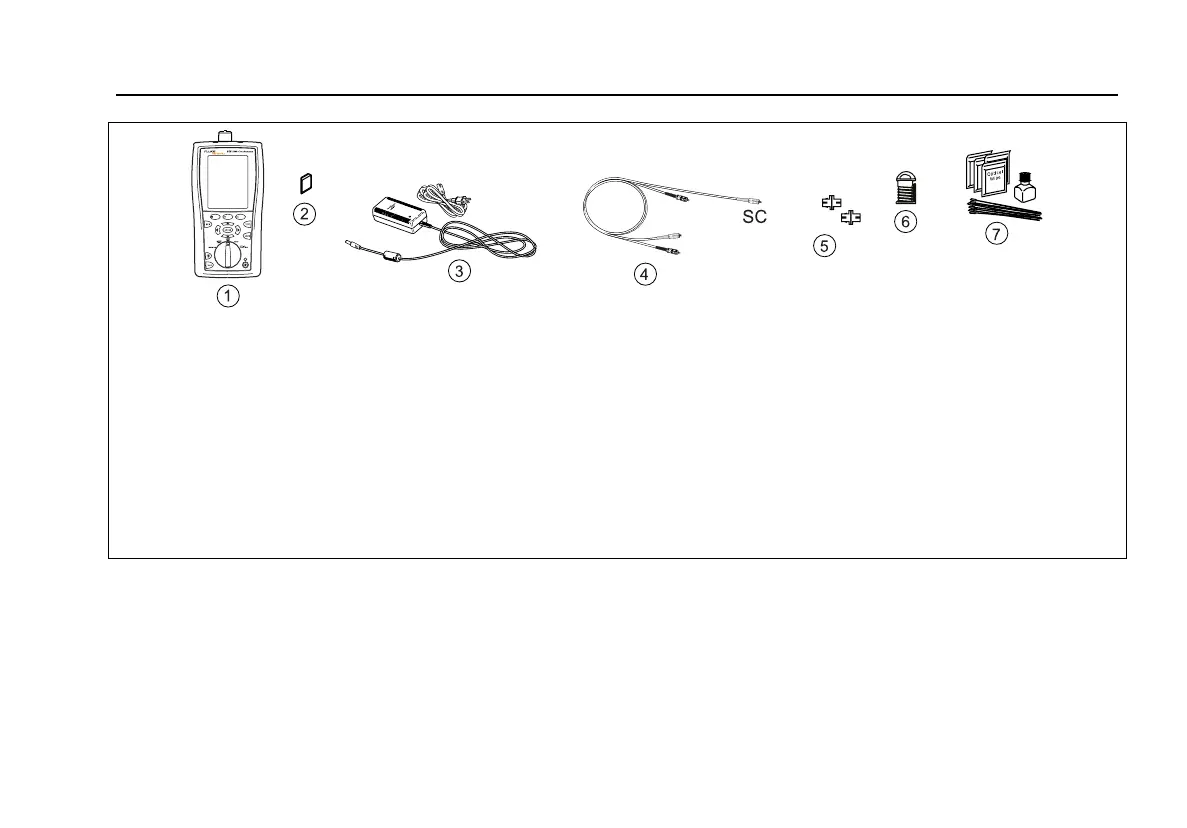

A Tester with fiber module and connector adapter
installed (match connector adapter to the connectors in
the link)
B Memory card (optional)
C AC adapter with line cord (optional)
D Reference test cord. Match the fiber to be tested. Long
end must have SC connector. For the other connectors,
match the connectors in the link
E Two adapters of the appropriate type
F Mandrel. Recommended when testing multimode fiber
with a DTX-MFM2 module. See page 12.
G Fiber cleaning supplies
Figure 10. Equipment for Testing in Loopback Mode (Method B)
