Fluke II Series User Manual

33
Connecting to a UUT (cont.)
HI
HI
LO
LO
HI
OUTPUT
V A
SENSE
V
AUX
CURRENT
GUARD
GROUND
WIDEBAND
Calibrator
Cable Supplied With
Option -03
Cable Supplied With
Option -03
For wideband meters with higher than 50Ω input impedance,
use the 50Ω feedthrough terminator at the meter connection
end. For all wideband applications, take care to achieve a
good 50Ω impedance match (use cable and connectors with
a characteristic input impedance of 50Ω).
NOTE
Ω
Ω
50Ω Feedthrough Terminator
Supplied With Option -03

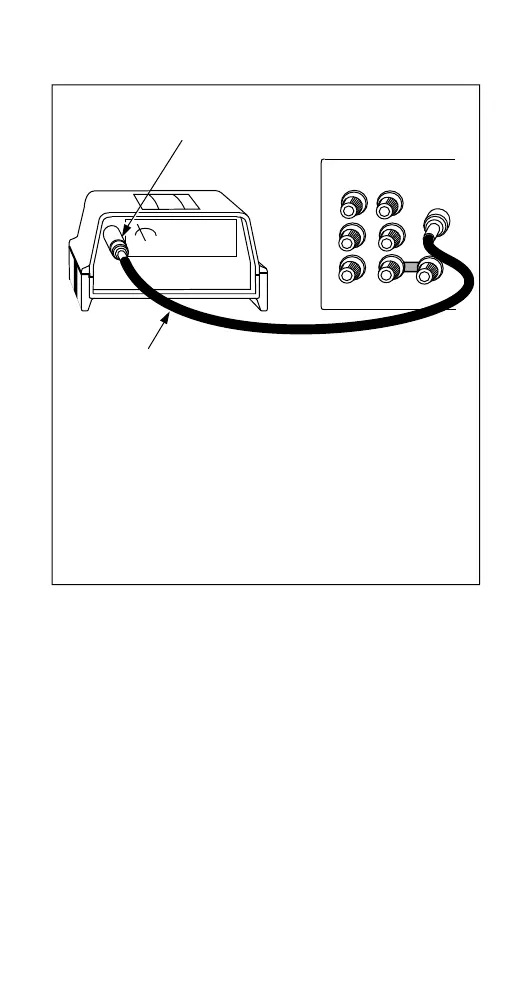

Wideband AC Voltage Output
(Option -03)
