Fluke PLS 3R User Manual

6
3R, 3G, 5R, 5G
Users Manual
Controls

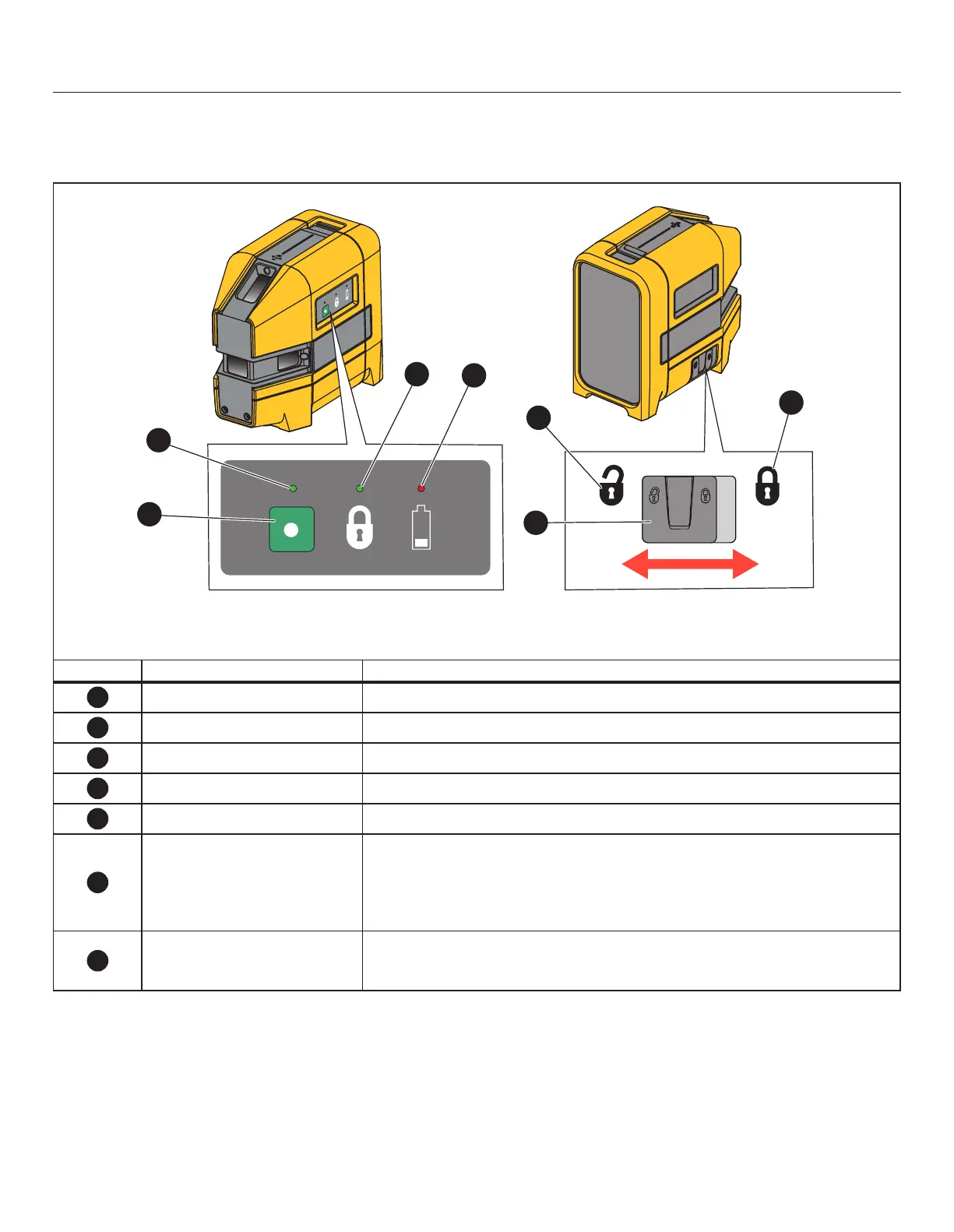

Table 4 lists the Controls of the Product.
Table 4. Controls
3
2
1
4
5
6
7
Item Description Function
1
Power button Turns on or o󰀨 the lasers.
2
Laser LED Shows green when at least one laser is on.
3
Lock LED Shows green when the laser lock is enabled.
4
Battery LED Shows red when the batteries need to be replaced.
5
Laser lock switch Slides to lock or unlock the lasers.
6
Laser unlock position
The self-leveling feature, keeps the lasers visible when the Product tilts ≤4 °
in any direction.
When the Product tilts >4 ° in any direction, the lasers do not show. The
Laser indicator LED stays green to indicate that when you return the Product
to an upright position, the lasers show again.
7
Laser lock position
Keeps the lasers visible even when you tilt the Product >4 °. The lasers blink
twice every 5 seconds to indicate the self-leveling feature is disabled. Use to
align items diagonally such as a stair rail.
