Fluke PLS 3R User Manual

18
3R, 3G, 5R, 5G
Users Manual
Housing Glass Insert
If the optical glass is damaged, replace the housing glass insert. See Table 6 for the part number to order for your Product.
To replace the housing glass insert (see Figure 9):
1. Remove the ve housing glass insert screws. Note the proper placement of each screw because the screws are
di󰀨erent sizes.
2. Pull out the housing glass insert.
3. Replace the insert and screws.
PLS5
PLS3

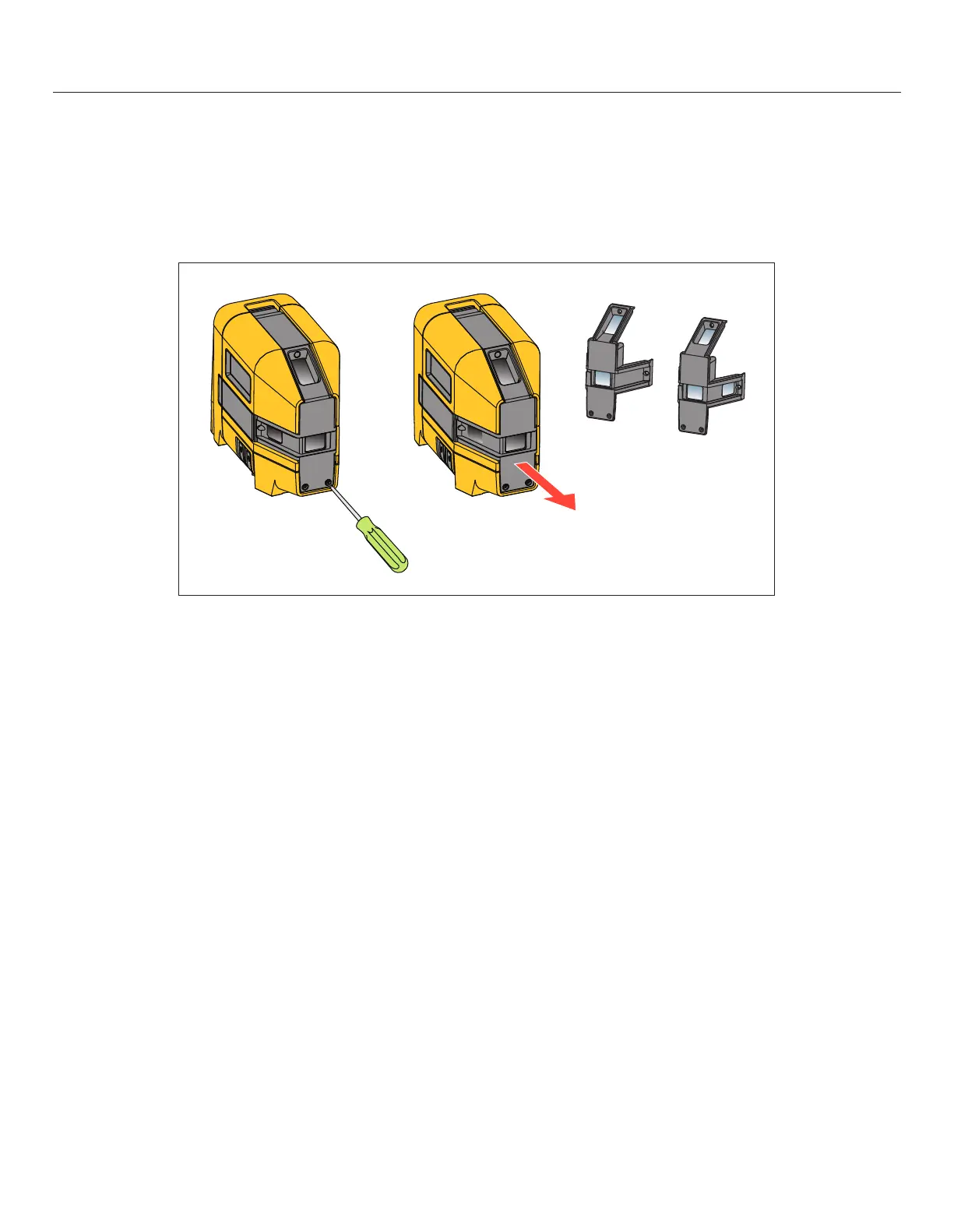

Figure 9. Housing Glass Insert Replacement
