Fluke PLS 3R User Manual

12
Square Marks (5R, 5G Only)
Use the forward and horizontal lasers to create new square marks or to determine if an existing item is square.
To layout a new square for a wall or staircase (See Figure 6):
1. Mark a vertical line on a wall.
2. Center the forward laser on the line on the wall.
3. Place the pendulum target on the oor and align the horizontal laser with the center vertical line on the pendulum
target.
4. Place a mark on the oor below the point of the pendulum target.
5. Move the Product either closer to or farther away from the wall and redo the procedure to make another mark on the
oor.
6. Draw a line to connect the two marks. The new line is perpendicular to the wall.

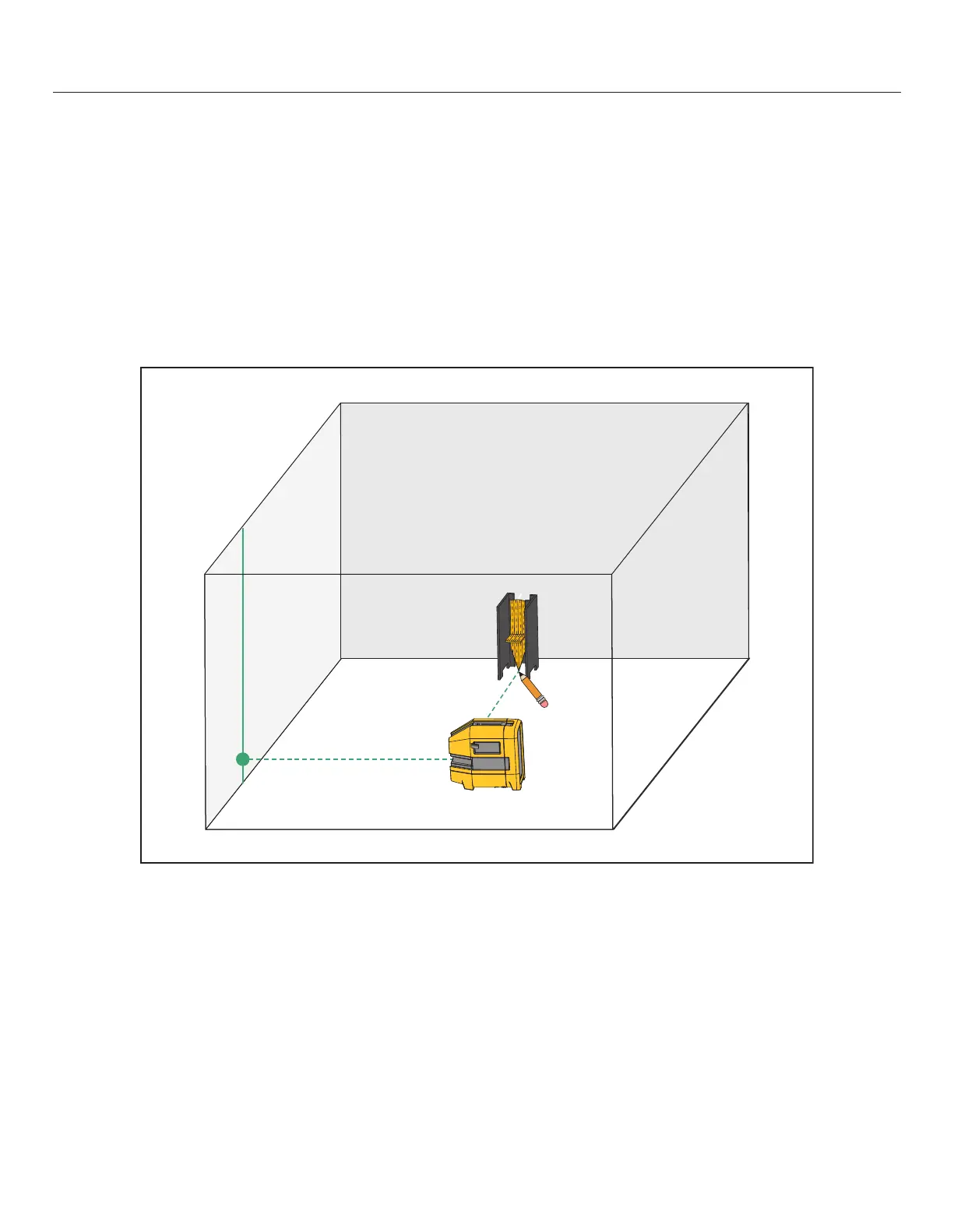

Figure 6. New Square
3R, 3G, 5R, 5G
Users Manual
