123B/124B/125B
Users Manual
44
How to Read the Screen
The bus test screen shows the status of the various signal
properties. To open, go the main screen and push 3.
Information is represented in four columns, see Table 10.

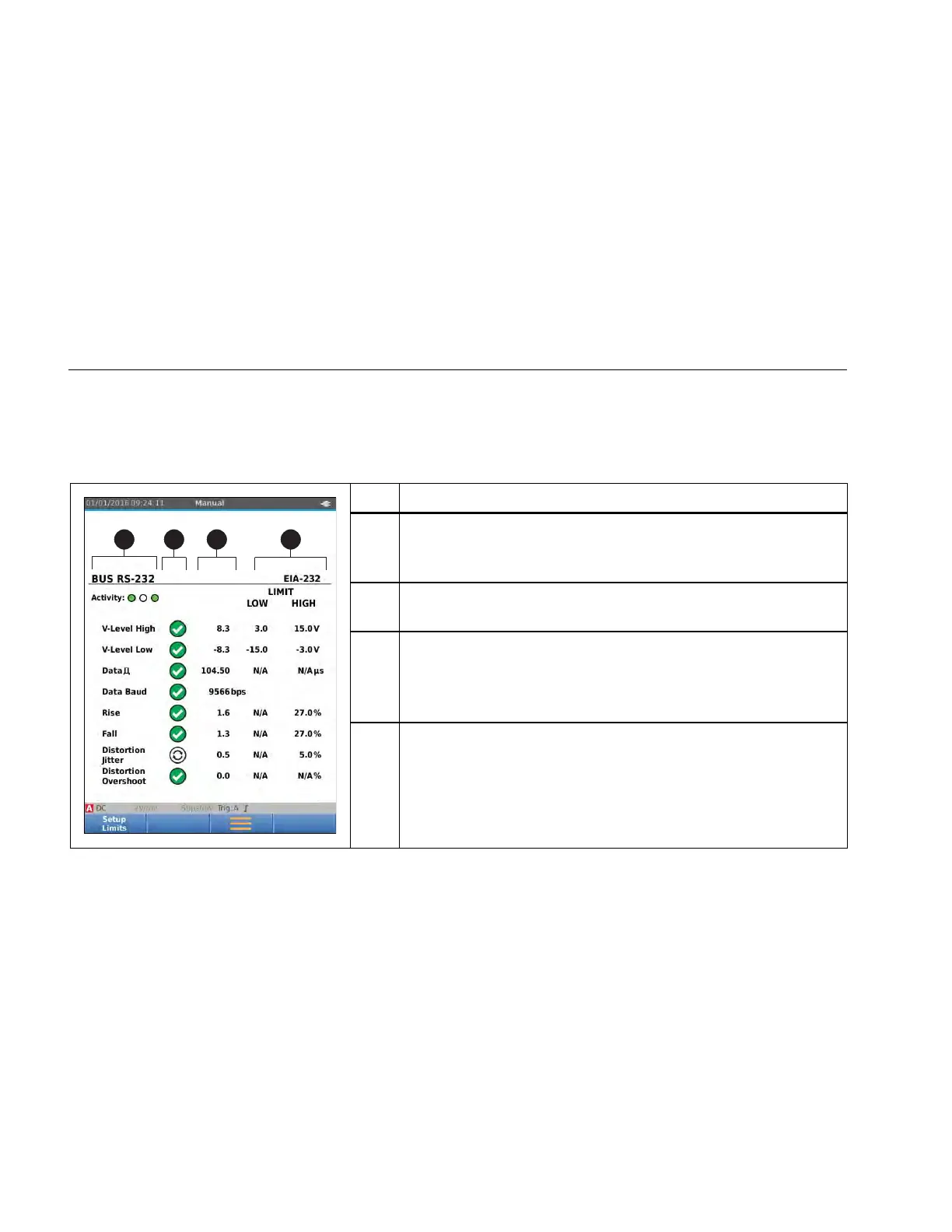

Table 10. Field Bus Test Screen
A B C D
hxv33.eps
Item Description
A
Signal property under test, for example, VHigh. Rows show each
signal property and corresponding data. See Table 11 for a description
of the signal properties for the bus types.
B
Status indicator. See Table 12 for a description of the indicators.
C
Most recent measurement value, for example, 3.5 V.
---
indicates that no reading is available
OL
indicates that the signal is out of the measurement range
(overload)
D
Used low (LOW) and high (HIGH) test limits (LIMIT), for example 18.5
31.6V.
LIMIT *
The
*
indicates that one or more of the limits are not set to
the default value.
N/A
The limit does Not Apply to this bus type.
