10
TS22 Series Craft Test Sets
Users Guide
Note
Be sure to replace the battery with a good 9 V
battery or the test set will not operate at all.
To replace the battery (see Figure 5):
1
Disconnect the test set from the line and place on
a flat work surface with battery cover up.
2
Using a Phillips screwdriver, remove the three
screws from the battery compartment.
3
Remove the battery compartment cover.
4
Lift out the battery retainer.
5
Remove the old battery from the battery boot.
6
Insert a new alkaline or lithium 9 V battery.
7
Replace the battery boot, retainer, cover, and
screws. Strain relief ring must be inside the case as
shown. Avoid pinching battery wires.
bfs06.eps

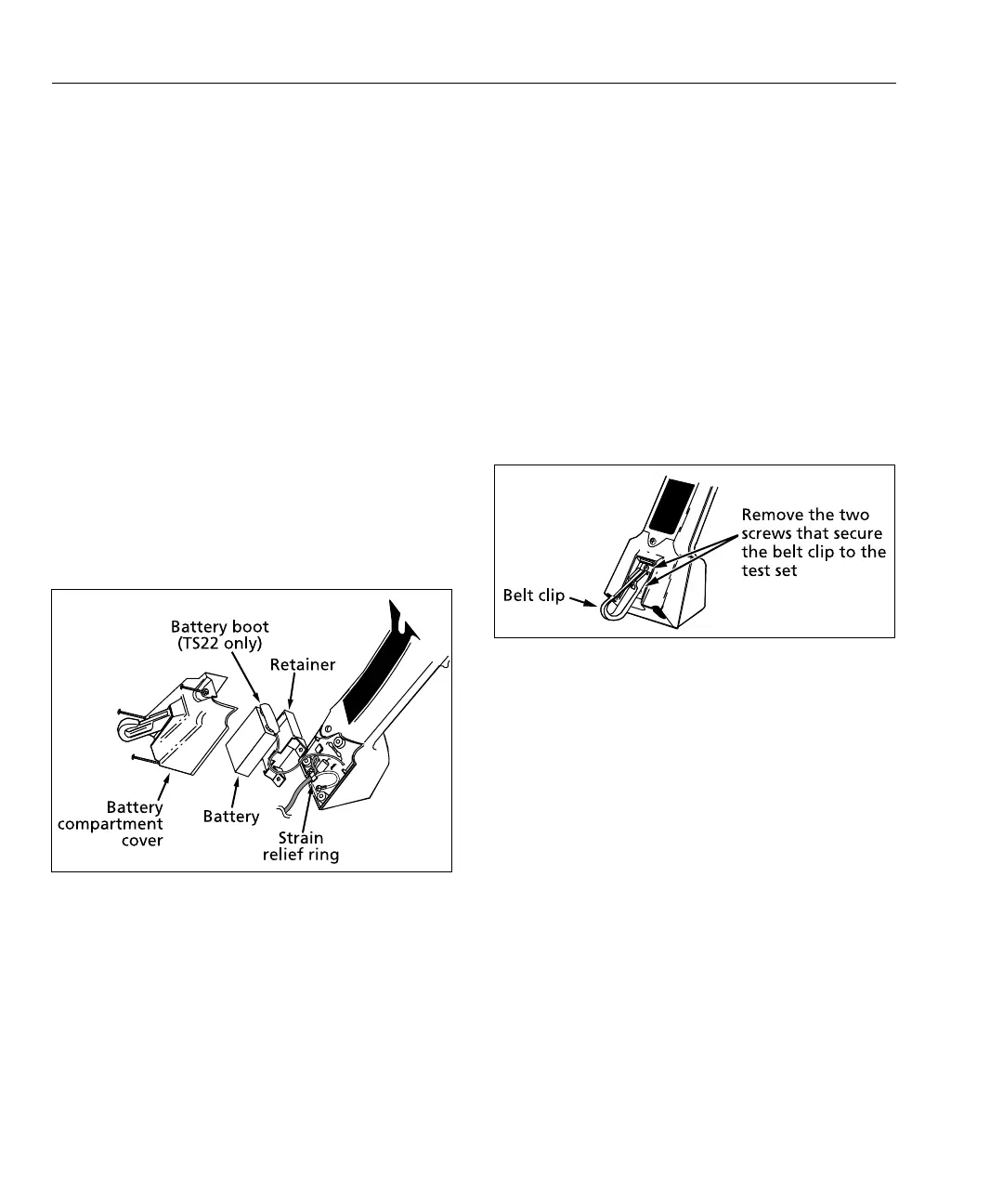

Figure 5. Battery Replacement
Replacing the Belt Clip
See Figure 6.
The belt clip assembly is field replaceable in the event
of damage or prolonged wear. To order a replacement
belt clip, contact your local Fluke Networks authorized
distributor.
To replace the belt clip assembly:
1
Using a Phillips screwdriver, remove the two screws
that secure the belt clip to the test set housing.
2
Remove the old belt clip and replace with a new
one. Secure the belt clip assembly to the test set
housing with the original screws.
bfs07.eps
Figure 6. Belt Clip Replacement
