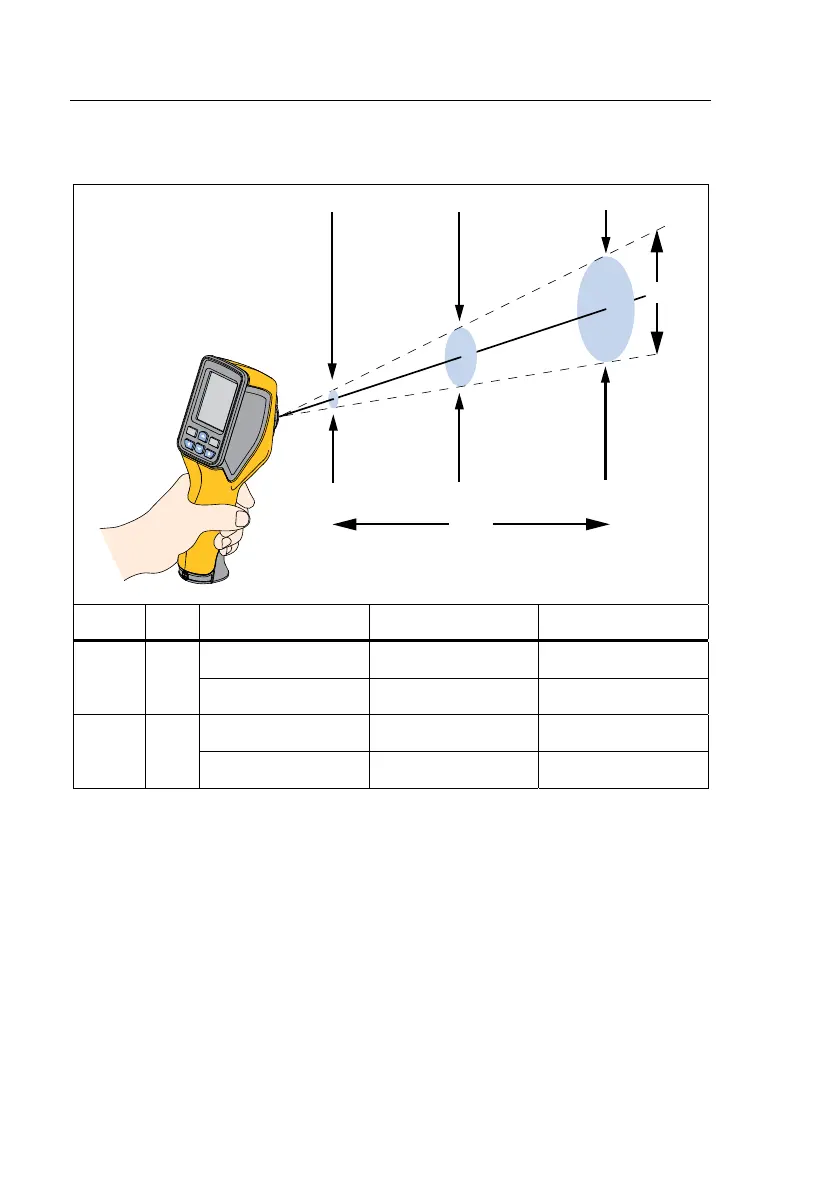

Table 5 shows the distance to area ratio (D:S) for measurement accuracy.
Table 5. Temperature Measurement Accuracy
AB C
AB C
D
S
For best temperature accuracy,
strive for a full field of view.
hak09.eps
Model D:S A B C
VT02 6:1
38 mm @ 230 mm 60mm @ 360 mm 100 mm @ 600 mm
1.5 in @ 9 in 2.4 in @ 14.5 in 4 in @ 24 in
VT04A
VT04
9:1
26 mm @ 230 mm 40 mm @ 360 mm 67 mm @ 600 mm
1 in @ 9 in 1.6 in @ 14.5 in 2.7 in @ 24 in
