Flux FMC 100 - Technical Data; Pressure loss curve; Dependency on maximum permitted pressure and temperature; Technical data

26 / 60 Operating Instructions FMC
ENGLISH
9 Technical data

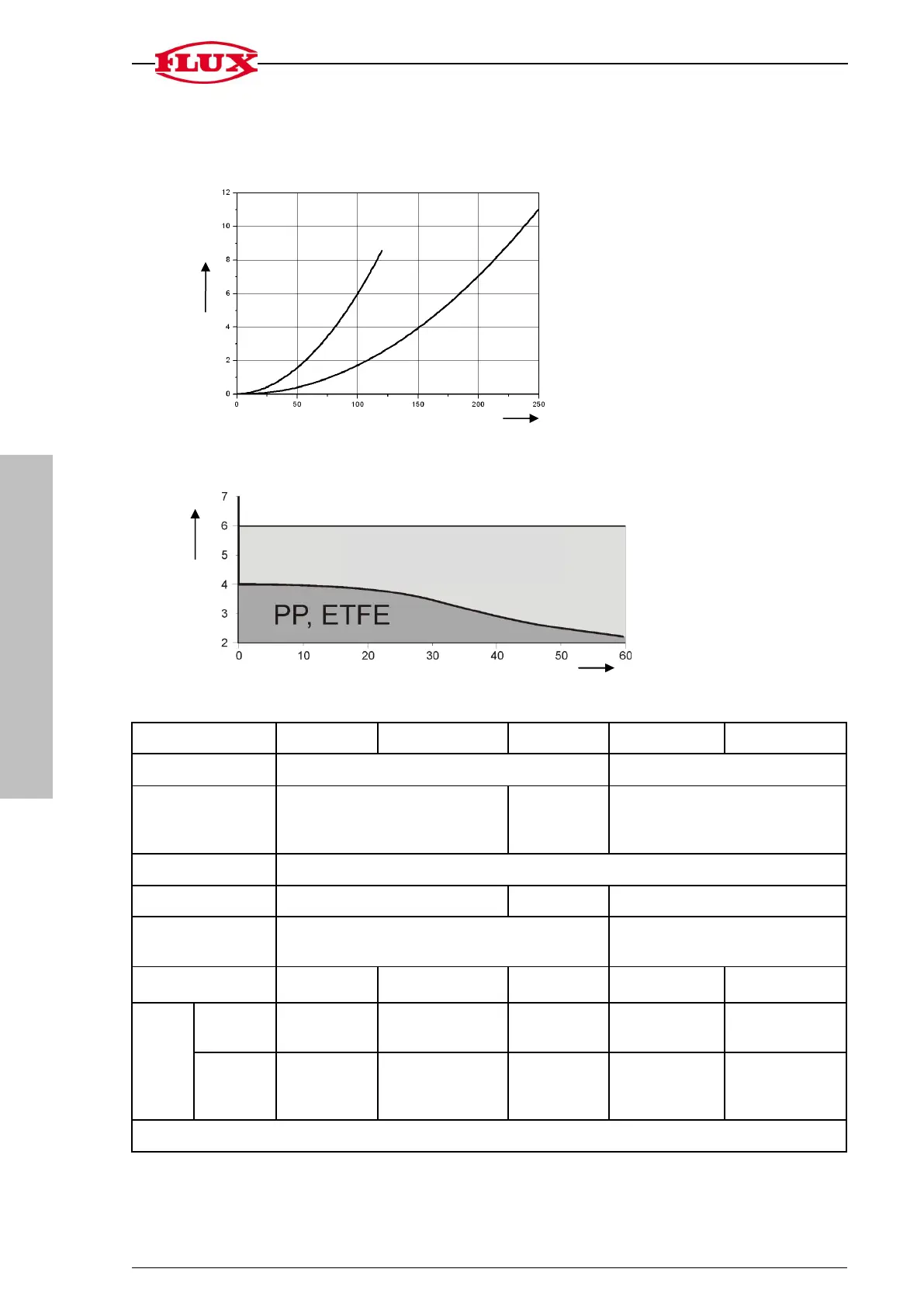

9.1 Pressure loss curve
9.2 Dependency on maximum permitted pressure and temperature
9.3 Technical data
FMC 100/PP
FMC 100/ETFE
FMC 100/S
FMC 250/PP
FMC 250/PVDF
Flow rate
10 - 100 l/min*
30 - 250 l/min
Pressure range
(max. nominal
pressure)
0.1 - 4 bar max. (at water 20°C)
0.1 - 6 bar
max.
0.1 - 6 bar max.
Viscosity
Up to 2500 mPas
Liquid temperature
Up to 60°C at max. 2 bar
Up to 80°C
Up to 60°C
Accuracy
± 1%
± 1% between 50 l/min and
250 l/min
Weight
1.1 kg
1.4 kg
1.7 kg
4.5 kg
9.0 kg
Mate-
rial
Housing
PP
ETFE
Stainless
Steel 316 Ti
PP
PVDF
Measu-
ring
chamber
PPS
ETFE
PPS
PE
PVDF
* Smaller flow volumes on request
dP [mWs]
Test made at 20°C (water) Q [L/min)
Tolerance ± 5%
dP [mwc]
T [°C]
Stainless Steel
1 FMC 100
2 FMC 250
1
2
