8.2 Throttle Spring Installation

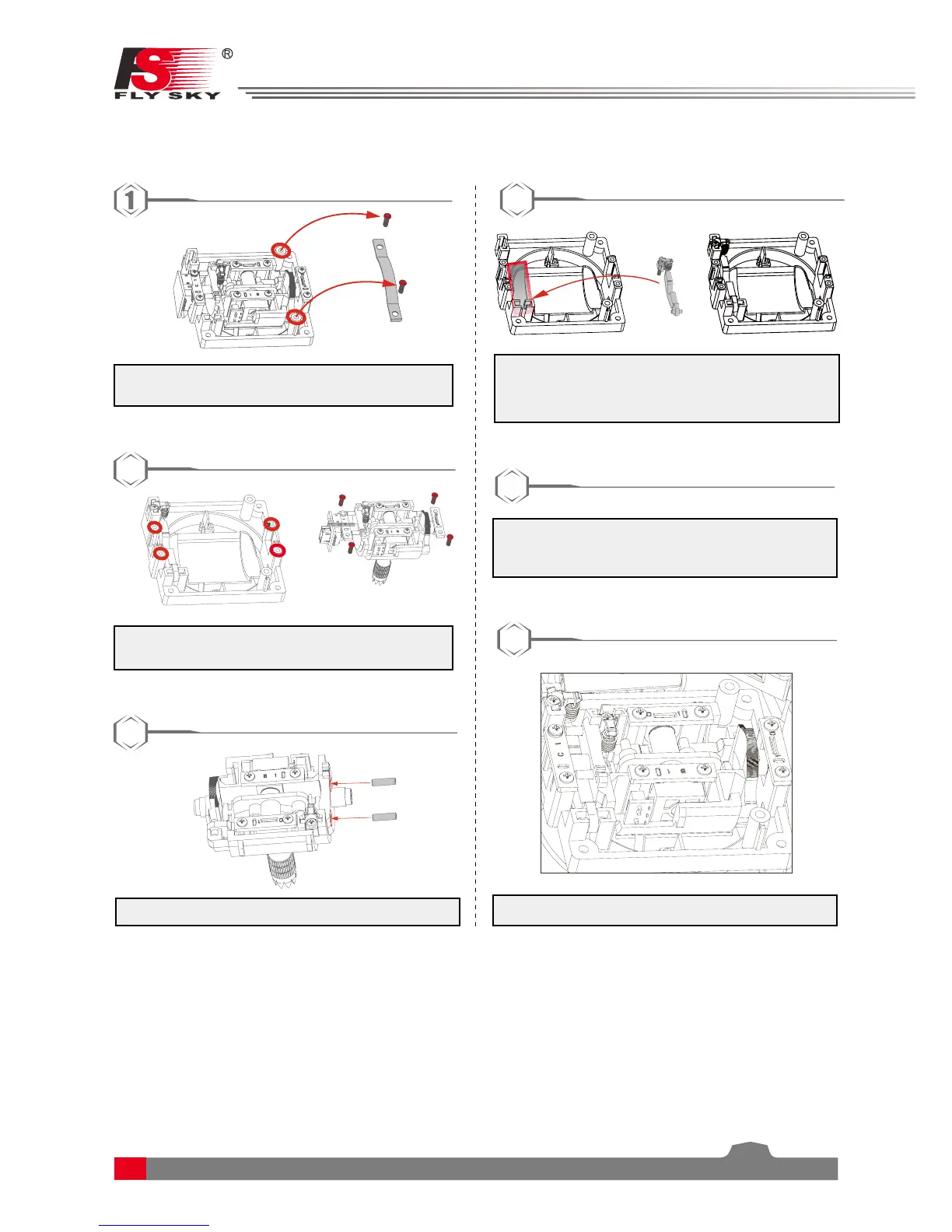

The following instructions explain how to install the vertical self-centering spring.
3. Take the transmitter apart,then remove the
screws marked in blue and remove the
2. Loosen the screws shown in fig.4 and remove
the plates.
6. Throttle spring installation complete.
2
5
3. Insert the 2 dowels as shown above.
3
4. Place the spring hook assembly into position
and hook the spring onto the hook located
inside the transmitter.
5. Secure the assembly back in its original position
with the 4 screws.
