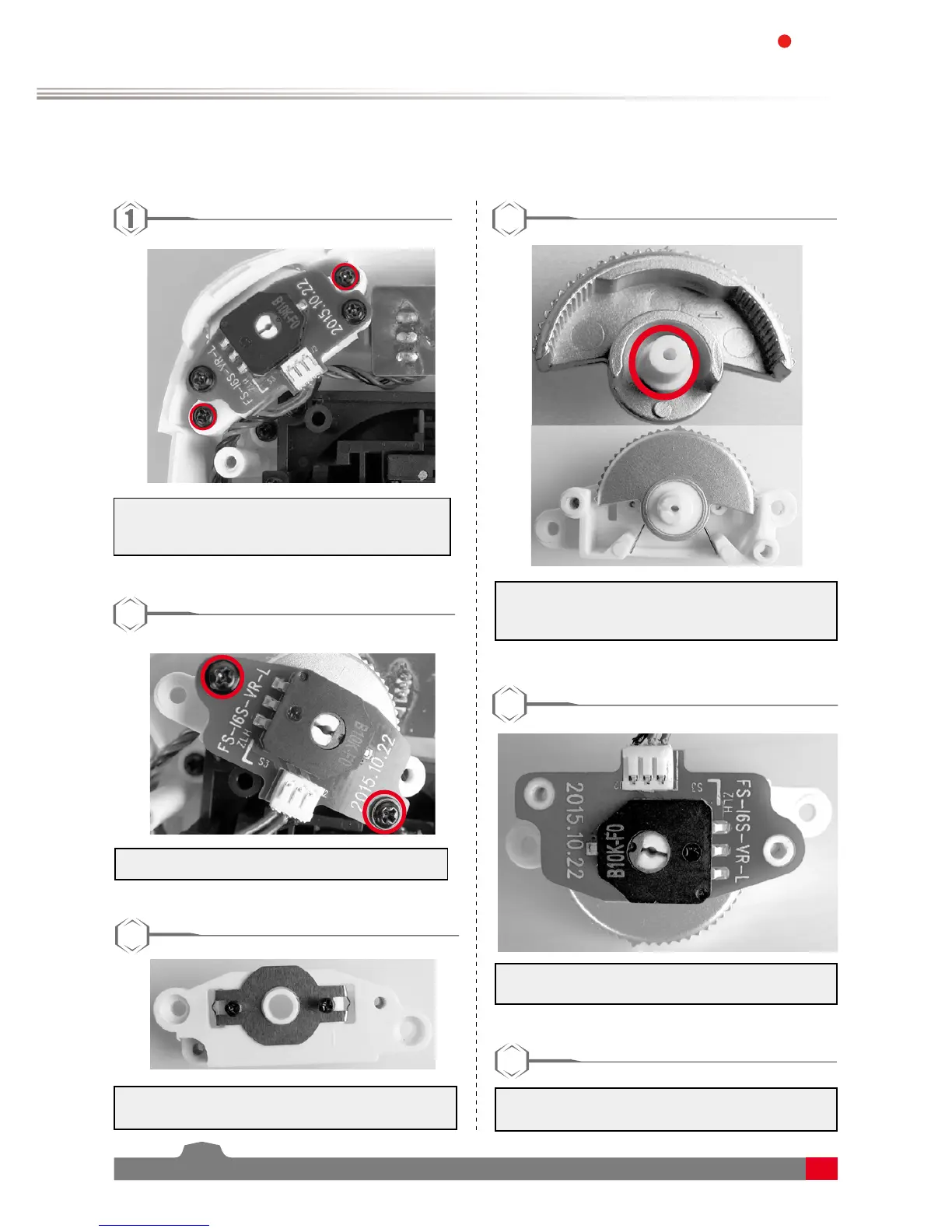

8.5 Knob Spring Installation
The following instructions explain how to install the vertical self-centering bracket.
1. Take the transmitter apart, then use a
screwdriver to remove the screws marked in
red.
2
2. Remove the PCB screws marked in red.
3
3. Remove the knob from the potentiometer and
put them in a safe place.
4
4. Please the spring as marked in red with the
2 ends pinched between the plastic at the
bottom.
5. Reassemble the parts keeping everything in
alignment. Then replace all the screws.
6. Place the fully assembled part back into its
original position and secure with the screws.
