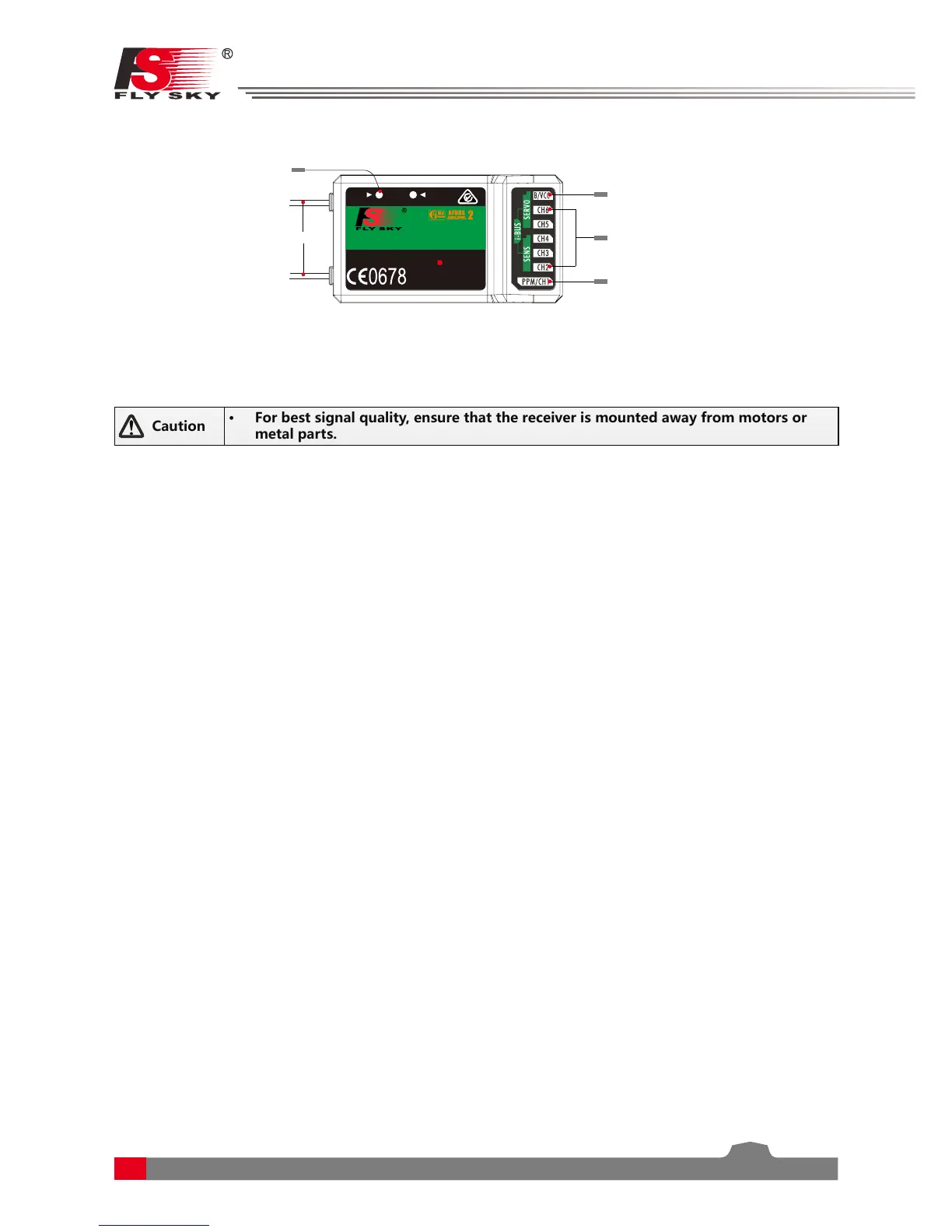

2.3 Receiver Overview
Caution
• For best signal quality, ensure that the receiver is mounted away from motors or
metal parts.
2.3.3
Connectors
The connectors are used to connect the parts of model and the receiver.
• PPM/CH1: Connection of CH1 or PWM output signal.
• CH2 to CH6: Used to connect the servos, power or other parts.
• B/VCC: Used to connect the bind cable for binding, and the power cable during normal operation,in the
range of 4.0-8.4V.
• SERVO: For connecting an i-BUS receiver.
• SENS: For connecting sensors.
2.3.2
Status Indicator
The status indicator is used to indicate the power and working status of the receiver.
• Off: The power is not connected.
• Lit in red: The receiver is on and working.
• Flashing quickly: The receiver is binding.
• Flashing slowly: The bound transmitter is off or signal is lost.
2.3.1
Receiver Antenna
The FS-iA6B has a dual 26mm omnidirectional antenna.
Antenna
Bind/VCC
Ch2- 6
PPM/CH1
A
LED
UP
DATE
FS-IA6B
6 VER
2.4
GHz
4.0-8.4V/DC
FC C ID:N4ZFLYSKYIA10
CHANNE
L
Status indicator
RECEI
