When the pump starts to snore the measured power will decrease from 68 %. When the
power has decreased below 58 % FPC100 will stop the pump.

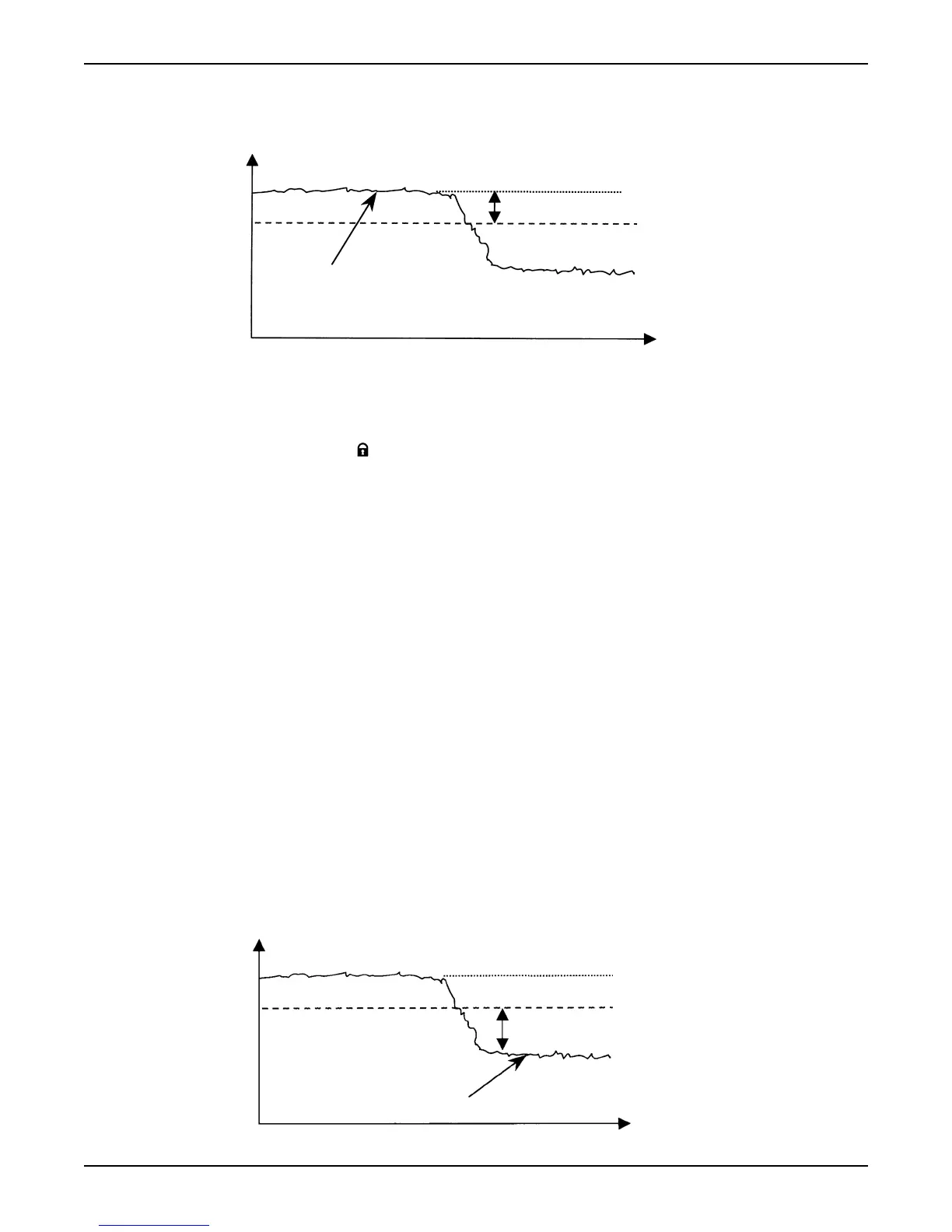

Pump power
Full load power (window 04)
Snore margin (window 12)
“Snore” power
Stop level (window 11)
AUTOSET is pressed
Time
Complete set-up at snoring
1. Install FPC100 according to
INSTALLATION
(page 5).
2. Set the Hand-0-Auto switch in the 0-position and turn on the supply voltage to
FPC100.
3. If a padlock ( ) is shown on the display, viewing and changing of parameters are
locked. Set window 09 to 369 and confirm with ENTER to remove the padlock and
get access to parameter settings (windows 11-99).
4. Clear the present stop level by pressing AUTOSET until “SEt” is shown on the display.
The stop level is hence set to 0 % since the pump is off.
5. Set window 13 to ( _ ) and confirm with ENTER. FPC100 is now prepared for Auto-set
at snoring.
6. Set the Hand-0-Auto switch in the Auto-position to start the pump. If necessary, press
START/RESET.
7. Run the pump until it starts to snore.
8. Press AUTOSET until “SEt” is shown on the display. The power-level for stop is now
set, hence stopping the pump due to the snoring.
The stop level (window 11) is now set in relation to the measured power (window 04) and
the snore margin (window 12).
Further adjustments can be done according to
Adjustment of the stop level
(page 14)—
Window parameters
(page 15).
Example:
Stop level (window 11) = Measured “snore” power (window 04) + Snore margin (window
12)
The pump is pumping a mix of air and water at the measured “snore” power 28 %. The
snore margin is set to 20 %. Pressing AUTOSET will then give the stop level 48 %, hence
stopping the pump.
From now on FPC100 will stop the pump each pump cycle when the power drops below
48 %.
Pump power
Full load power
AUTOSET is pressed
Time
Snore margin (window 12)
“Snore” power (window 04)
Stop level (window 11)
DETAILED SETTINGS
Single pump controller Installation and user manual for FPC100 13
