1. Introduction
This system consists of the FS-ST8B transmitter and FS-Br01 receiver, and is specially designed for the bait boat
model.
This system needs to be used with the boat control board. Through the transmitter, users can remotely control the
boat's driving, baiting, and light switch. Through the GPS satellite positioning system on the integrated control
board, it can automatically navigate the model boat to multiple destinations and return back to the starting place,
with the travel distance calculated. When the receiving signal is weak, the model boat will automatically turn back.
In order to facilitate the operator to control the bait boat, this transmitter is equipped with a display screen, to allow
users to control the status of the bait boat in real time, such as the remote signal strength, number of satellites,
transmitter battery level and boat, etc. In addition, it is also equipped with the audible alarm system. There will be
an audible alarm when the battery power of the transmitter or boat is too low.

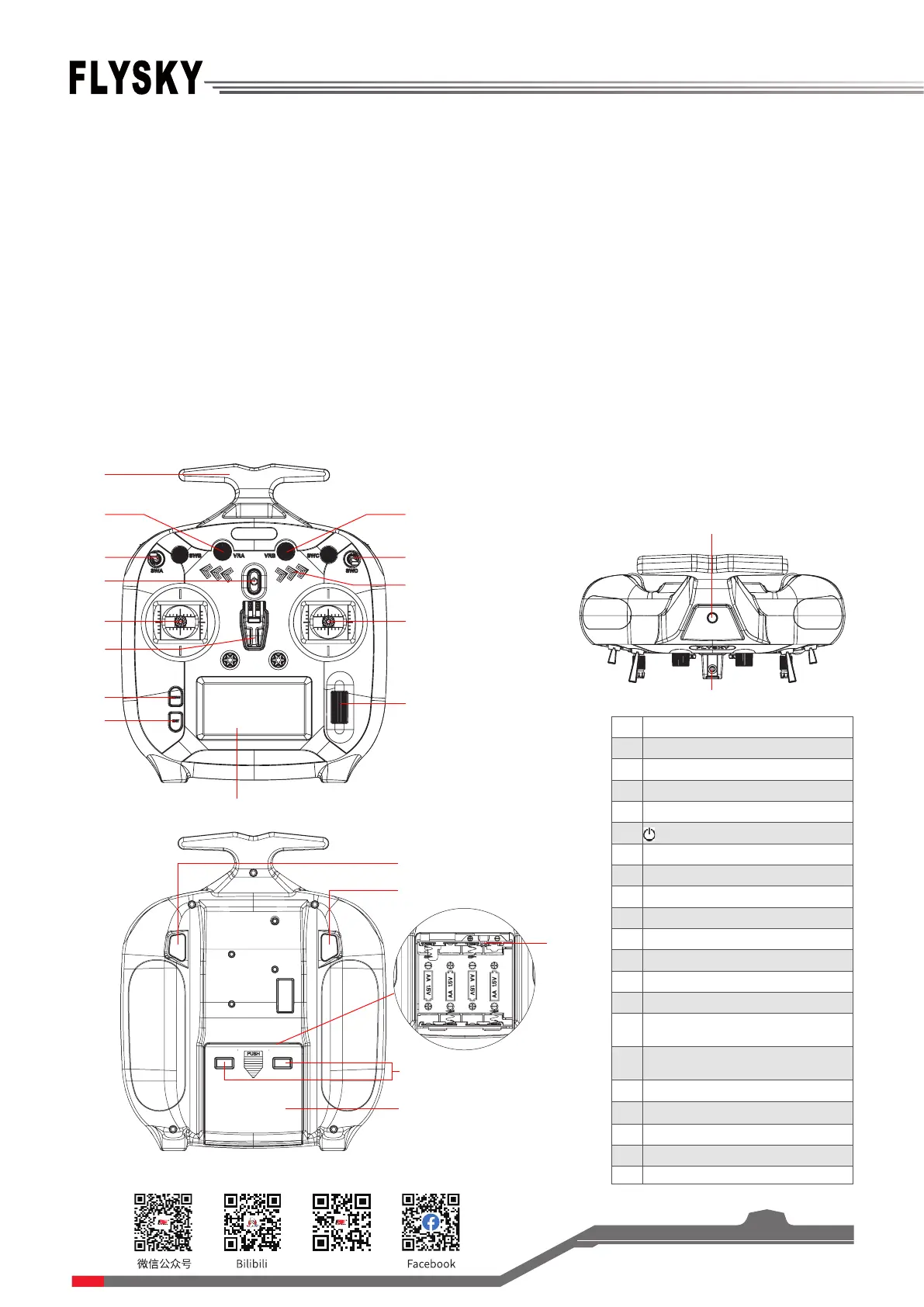

1.1 Transmitter Overview
[1] Display
[2] EXIT Button
[3] MENU Button
[4] Neck Strap Hook
[5] Left Stick(self-centering)
[6] (Power Switch)
[7] Three-position Switch
[8] VRA Knob
[9] Built-in Antenna
[10] VRB Knob
[11] SWD Two-position Switch
[12] LED
[13] Right Stick (self-centering)
[14] Scroll Wheel
[15]
A Hole for Fixing the Cell
Phone Holder
[16]
A Reserved Hole for Exterial
Antenna
[17] Battery Compartment
[18] A Reserved Hole for XT30 Cable
[19] JST Jack for 2S lithium battery
[20] Right Button
[21] Left Button
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[14]
[13]
[12]
[11]
[10]
[9]
[16]
[15]
[19]
[17]
[18]
[20]
[21]
