15Handler I, II & III Operator’s Manual - October 2008
Step 2

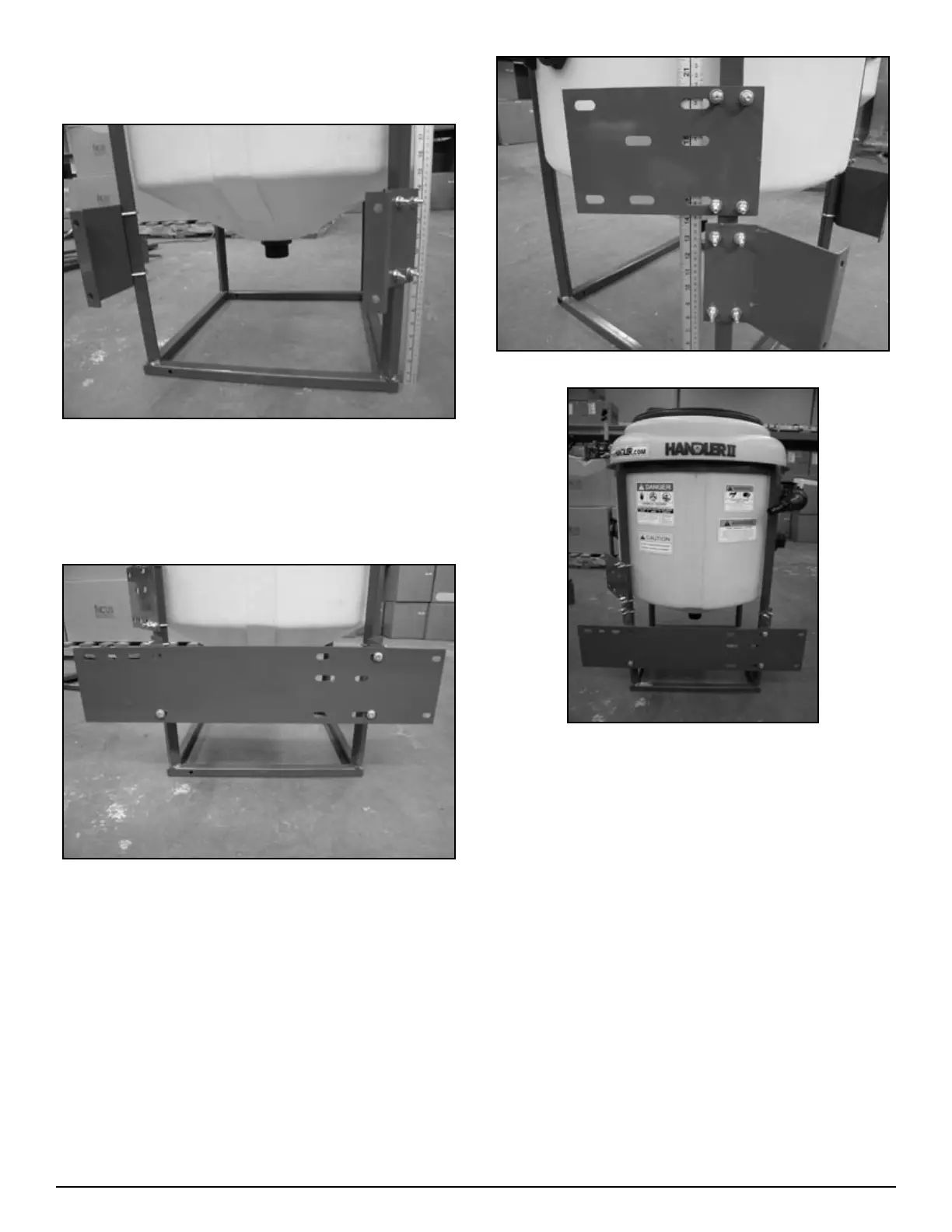

Venturi bracket and plate installation
Figure H2-4.4
Mount angled frame brackets (86-HAFB) to frame as shown
in figure H2-4.4. Use two 1” U-bolts (67-UB025-100) per
bracket. Bottom of bracket should be 7” from bottom of
frame. NOTE: Tighten only enough to prevent slipping.
Figure H2-4.5
Mount venturi mounting plate (86-HVMP) on to angled
frame brackets as shown in figure H2-4.5 . Use three 5/16”
X 1” bolts (67-CSH5C516-1p) – two on the right side and
one on the lower left side. Do not tighten completely yet.
Hint: if angle frame brackets are not perpendicular to frame
tap with a mallet to align them.
1.
2.
Figure H2-4.6
Figure H2-4.7
Mount intake support plate (86-HISP) to frame 14 1/2” from
the base as shown in figure H2-4.6 and H2-4.7. Use two 1”
U-bolts (67-UB025-100). Do not tighten completely yet.
Go to next step (Three way valve support bracket installa-
tion).
3.
4.
