Focus Industries Handler I - Handler I Manifold Venturi Package Breakdown

38 Handler I, II & III Operator’s Manual - October 2008
Handler Tank
Handler Tank
Agitation
Line
Knife/Rinse
Line
Venturi Line
1
1
2 2
3
3
4
4
21
21
23
15
15
14
8
9
1110
13
12
10
11
9 7
8
6
5

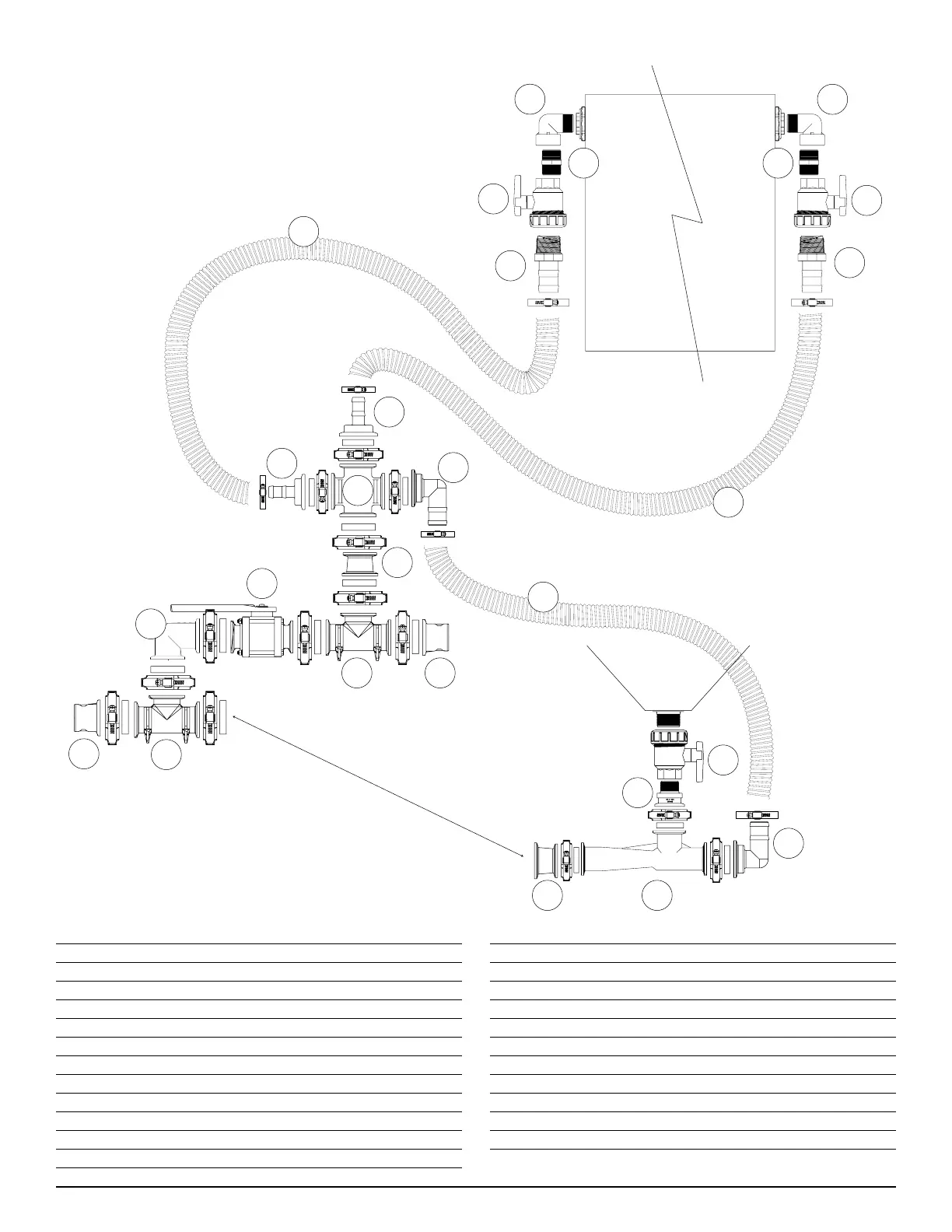

2” Handler I Manifold Venturi
Package Breakdown
(2” Fittings and 1 ½” Venturi)
# Part No. Description Qty
1 25-SL075-90 3/4” Street Elbow 2
2 25-NIP075-SH 3/4” Short Nipple 2
3 25-UV075FP 3/4” Single Union Ball Valve 2
4 25-HB075-100 3/4” MPT X 1” HB Adapter 2
5 25-UV125FP 1 1/4” Single Union Ball Valve 1
6 25-M200125MPT 2” SP Flange X 1 1/4” MPT 1
7 85-HV150FLA 1 1/2” Venturi, Flanged 1
8 25-M200150BRB90 2” SP Flange X 1 1/2” HB 90 2
9 25-M220200CPG 2” FP X 2” SP Flanged Coupler 1
10 25-M220TEE 2” FP Flanged Tee 2
11 25-M220A 2” FP Flange X 2” Male Camlock 2
12 25-M220CPG90 2” FP Flanged Coupler 90 Degree 1
# Part No. Description Qty
13 25-MV220CF 2” FP Flanged Ball Valve 1
14 25-M200CR 2” SP Flanged Cross 1
15 25-M200100BRB 2” SP Flange X 1” Hose Barb 2
- 25-FC220 220 Series Flange Clamp 7
- 25-FC200 200 Series Flange Clamp 7
- 25-150G EPDM Gasket for 200 Series 7
- 25-200G EPDM Gasket for 220 Series 7
- 53-75612 MC12SS Hose Clamp 4
21 54-79210 1” Clear Braided PVC Hose 3.0 ft
- 53-75624 MC24SS Hose Clamp 2
23 54-79050 1 1/2” PVC Suction Hose 1.5 ft
