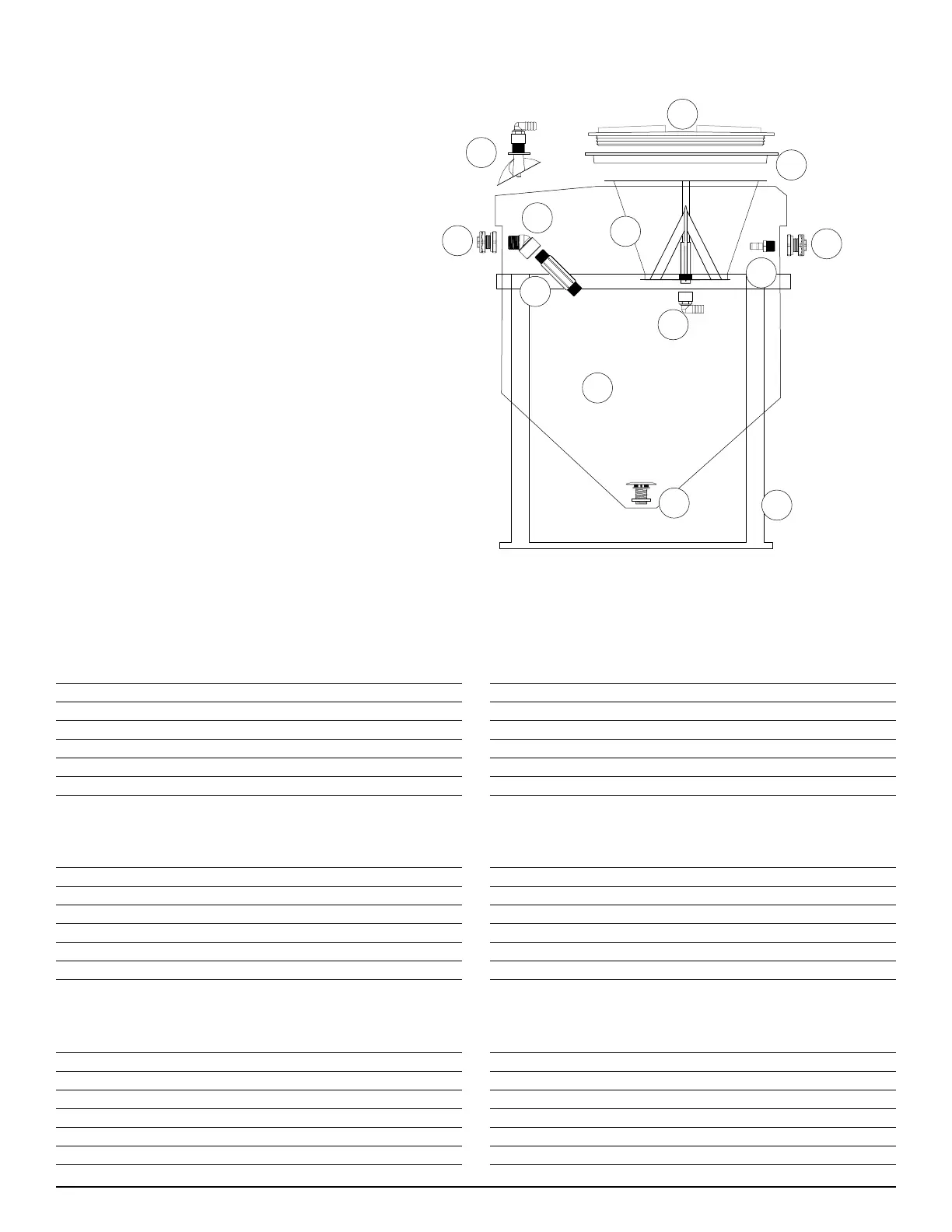

Handler I, II & III Tank
Parts Breakdown
# Part No. Description Qty
1 86-H1T15 Handler I tank 1
2 86-H1FSFRA Handler I frame 1
3 85-HKNIFE Handler knfire 1
4 10-15080 15” polypropylene closed lid 1
5 10-15090G 15” gasketed polypropylene rim 1
6 42-38020 3/4” FPT bulkhead 2
# Part No. Description Qty
7 30-60400P 3/4” MPT x HB 90 1
8 30-60400P 3/4” MPT x HB 90 1
9 N/A
10 30-60974PHK 3/4” FPT x HB 90 - Drilled 1
11 10-14170 1 1/4” anti-vortex fitting 1
12 N/A
Handler I
# Part No. Description Qty
1 86-H2T35 Handler II tank 1
2 86-H2FRA Handler II frame 1
3 85-HKNIFE Handler knfire 1
4 10-15080 15” polypropylene closed lid 1
5 10-15090G 15” gasketed polypropylene rim 1
6 25-TF100 1” FPT bulkhead 2
# Part No. Description Qty
7 30-60450 1” MPT x 3/4” HB 90 1
8 25-HB100-90 1” MPT x HB 90 1
9 N/A
10 30-60974PHK 3/4” FPT x HB 90 - Drilled 1
11 10-14210 2” anti-vortex fitting 1
12 N/A
Handler II
# Part No. Description Qty
1 86-H3T60 Handler III tank 1
2 86-H3FRA Handler III frame 1
3 85-HKNIFE Handler knfire 1
4 49-62532 15” hinged polypropylene lid and rim 1
5 N/A
6 25-TF100 1” FPT bulkhead 2
# Part No. Description Qty
7 30-60450 1” MPT x 3/4” HB 90 1
8 25-SL100-45 1” MPT x FPT street elbow 45 1
9 25-NIP100-6 1” x 6” MPT nipple 1
10 30-60974PHK 3/4” FPT x HB 90 - Drilled 1
11 10-14210 2” anti-vortex fitting 1
12 49-PWRF-15 RotaFlush 1
Handler III
