Focus Industries Handler I - 3 Handler III Manifold Venturi Package Breakdown

41Handler I, II & III Operator’s Manual - October 2008
# Part No. Description Qty
1 25-M300A 3” FP Flange X 3” Male Adapter 2
2 25-M300TEE 3” FP Flanged Tee 2
3 25-M300CPG45 3” FP Flanged Coupler 45 1
4 25-MV300BL 3” FP Flanged Valve bottom load 1
5 25-M300BRB90 3” FP Flange X 3” HB 90 1
6 25-M300BRB 3” FP Flange X 3” HB 1
7 85-HV200FLA 2” Flanged Venturi 1
8 25-M300220CPG 3” Flange X 2” FP Flange Coupler 3
9 25-220CPG90 2” FP Flange Coupler 90 1
10 25-200CPG90SH 2” SP Flange Coupler Short 90 1
11 25-MV200CF 2” SP Flanged Valve 1
12 25-M200150BRB90 2” SP Flange X 1 1/2“ HB 90 1
13 25-M220100CPG 2” FP x 1” Flanged Coupler 1
14 25-TEE100 1” Flanged Tee 2
15 25-M100BRB 1” Flange X 1” HB 1
16 25-M100MPT 1” Flange X 1” MPT 2
17 25-UV100FP 1” Single Union Ball Valve 3
18 25-HB100 1” MPT X 1” HB 2
19 25-HB100-90 1” MPT X 1” HB 90 2
# Part No. Description Qty
20 10-10980 1” MPT X 1” MPT 90 1
21 25-SL100-45 1” Street Elbow 45 1
22 10-10910 2” FPT X 1 1/2” HB 90 1
- 53-75624 MC24SS Hose Clamp 2
- 25-TC343 TC343 SS Super T Hose Clamp 2
- 53-75612 MC12SS Hose Clamp 6
- 25-FC300 300 Series Clamp 9
- 25-300G EPDM Gasket for 300 Series 9
- 25-FC220 220 Series Clamp 4
- 25-200G EPDM Gasket for 220 Series 4
- 25-FC100 100 Series Clamp 5
- 25-M100G EPDM Gasket for 100 Series 5
- 25-FC200 200 Series Clamp 3
- 25-150G EPDM Gasket for 200 Series 3
34 54-79350 3” Kanaflex Ribbed EPDM Hose 2.5 ft
35 54-79050 1 1/2” PVC Suction Hose 1.5 ft
36 54-79210 1” Clear Braided PVC Hose 6 ft
37 25-V20153138 Handle Offset for 25-MV200CF 1
38 67-CSHC14-2S1 2”L x 1/4” SS Bolt for Handle 1
Handler Tank
Handler Tank
Agitation
Line
Venturi Suction Line
Knife/Rinse
Line
Bypass Line
19
20
17
21
18
36
19
17
22
35
34
1
2
6
12
11
10
7
9
8
4
3
5
2
1
8
13
14
15
16
17
18
36
14
16
37
38

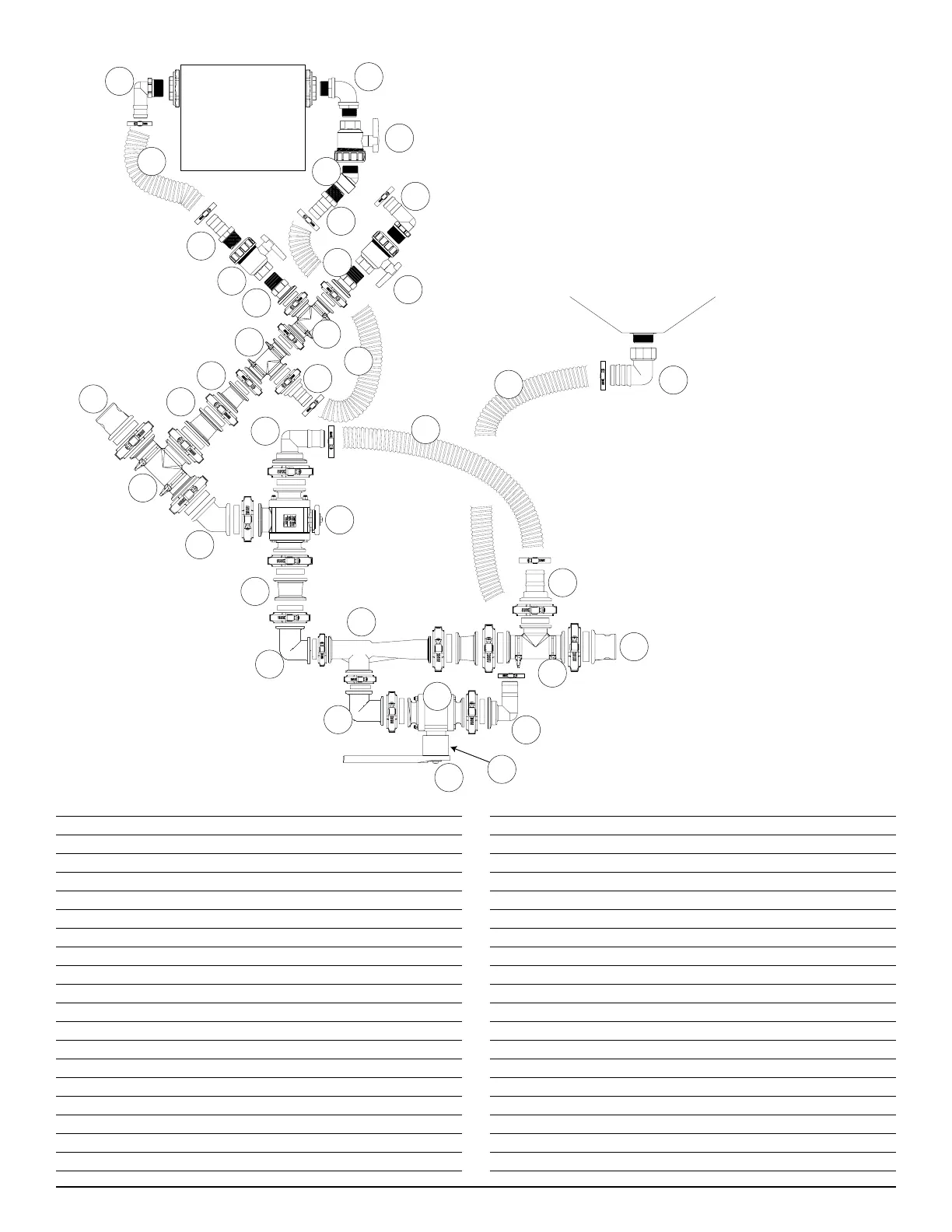

3” Handler III Manifold
Venturi Package Breakdown
