Focus Industries Handler I - Handler I Threaded Venturi Package Breakdown

39Handler I, II & III Operator’s Manual - October 2008
# Part No. Description Qty
1 25-SL075-90 3/4” MPT x FPT Street Elbow 2
2 10-10190 3/4” Single Union Ball Valve 2
3 30-60830P 3/4” MPT x HB Adapter 2
4 30-61580P 3/4” MPT Short Nipple 2
- 53-75610 MC10SS Hose Clamp 4
6 54-79200 3/4” Clear Braided Hose 3.5 ft
7 10-10210 1 1/4” Single Union Ball Valve 1
8 85-HV150 1 1/2” Venturi, Threaded 1
9 30-61810P 2” MPT x 1 1/2” FPT Bushing 1
10 25-FC200 200 Series Flange Clamp 1
11 25-200A 2” FPT x 2” Male Camlock 2
12 25-M200FPT 2” Flange x 2” FPT Manifold Fit. 2
# Part No. Description Qty
13 10-11105 2” MPT Poly Tee 2
14 25-SL200-45 2” MPT x FPT Stree Elbow 1
15 10-10230 2” Single Union Ball Valve 1
16 49-40013 2” FPT x 1 1/4” MPT Adapter 1
17 25-150G EPD Gasket for 200 Series 1
18 10-10300 1 1/2” FPT x HB Adapter 1
19 25-CR125 1 1/4” 4 Way Cross 1
20 25-HB125-075 1 1/4” x 3/4” HB Adapter 2
21 30-60940P 1 1/4” x 1 1/2” HB Adapter 1
22 54-79050 1 1/2” PVC suction hose 3.0 ft
23 53-75624 MC24SS hose clamp 2
Handler Tank
Handler Tank
Agitation
Line
Knife/Rinse
Line
Venturi Line
1
4
1
4
2
2
3
3
6
6
12
9
8
18
7
22
21
2
20
20
16
11
13
15
14
13
12
11

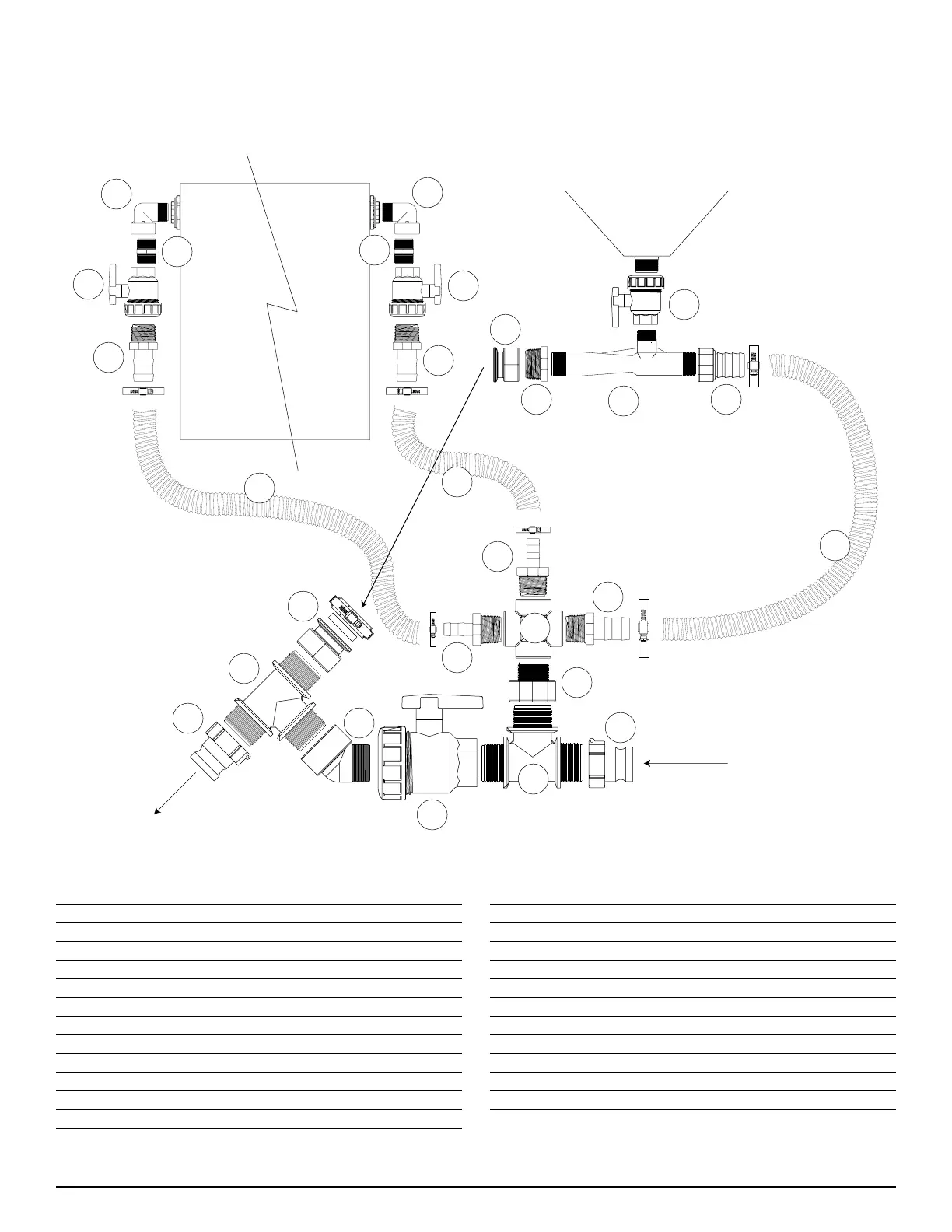

Handler I Threaded Venturi Package Breakdown
(2” Fittings and 1 ½” Venturi)
