Focus Industries Handler I - 2 Handler II & III Manifold Venturi Package Breakdown

40 Handler I, II & III Operator’s Manual - October 2008
# Part No. Description Qty
1 25-M220A 2” FP Flange X 2” Male Adapter 2
2 25-M220TEE 2” FP Flanged Tee 2
3 25-M220CPG45 2” FP Flanged Coupler 45 1
4 25-MV220BL 2” FP Flanged Valve Bottom Load 1
5 25-M220BRB90 2” FP Flange X 2” HB 90 1
6 25-M220BRB 2” FP Flange X 2” HB 1
7 85-HV200FLA 2” Flanged Venturi 1
8 25-MV200CF 2” SP Flanged Valve 1
9 25-M200150BRB90 2” SP Flange X 1 1/2” HB 90 1
10 25-M100TEE 1” Flanged Tee 2
11 25-M100BRB 1” Flange X 1” Hose Barb 1
12 25-M100MPT 1” Flange X 1” MPT 1
13 25-UV100FP 1” Single Union Ball Valve 2
14 25-HB100 1” MPT X 1” HB 2
15 25-HB100-90 1” MPT X 1” HB 90 1
16 10-10980 1” MPT X 1” MPT Elbow 90 1
17 25-M220CPG90 2” FP Flanged Coupler 90 1
18 25-M200CPG90SH 2” SP Flanged Coupler 90 1
# Part No. Description Qty
19 10-10910 2” FPT X 1 1/2” HB 90 1
- 53-75624 MC24SS Hose Clamp 2
- 53-75612 MC12SS Hose Clamp 4
- 53-75632 MC32SS Hose Clamp 4
23 54-79250 2” Kanaflex EPDM Ribbed Hose 2 ft
24 54-79210 1” Clear Braided PVC Hose 3 ft
25 54-79050 1” PVC Suction Hose 1.5 ft
- 25-FC220 220 Series Screw Clamp 9
- 25-200G EPDM Gasket for 220 Series 9
- 25-FC200 200 Series Screw Clamp 3
- 25-150G EPDM Gasket for 200 Series 3
- 25-FC100 100 Series Screw Clamp 5
- 25-M100G EPDM Gasket for 100 Series 5
32 25-V20153138 Handle Offset for 25-MV200CF 1
33 67-CSHC14-2S1 2”L x 1/4” SS Nolt for Handle 1
34 25-M220100TEE 2” FP Flange X 1” Flange Tee 1
35 25-M100PLG 1” Flange Plug 1
36 25-SL100-45 1” Street Elbow 45 Degree 1
Handler III R
otaFlush Ki
t
Handler Tank
Handler Tank
Agitation
Line
Knife/Rinse
Line
Bypass Line
Venturi Suction Line
15
16
13
36
14
24
24
14
13
12
10
10
1
34
3
11
5
4
17
24
7
18
8
9
6
2
1
25
19
15
13
12
23
32
33
35
Note: Part quantities in the RotaFlush kit
are not included in the breakdown quantities
below.

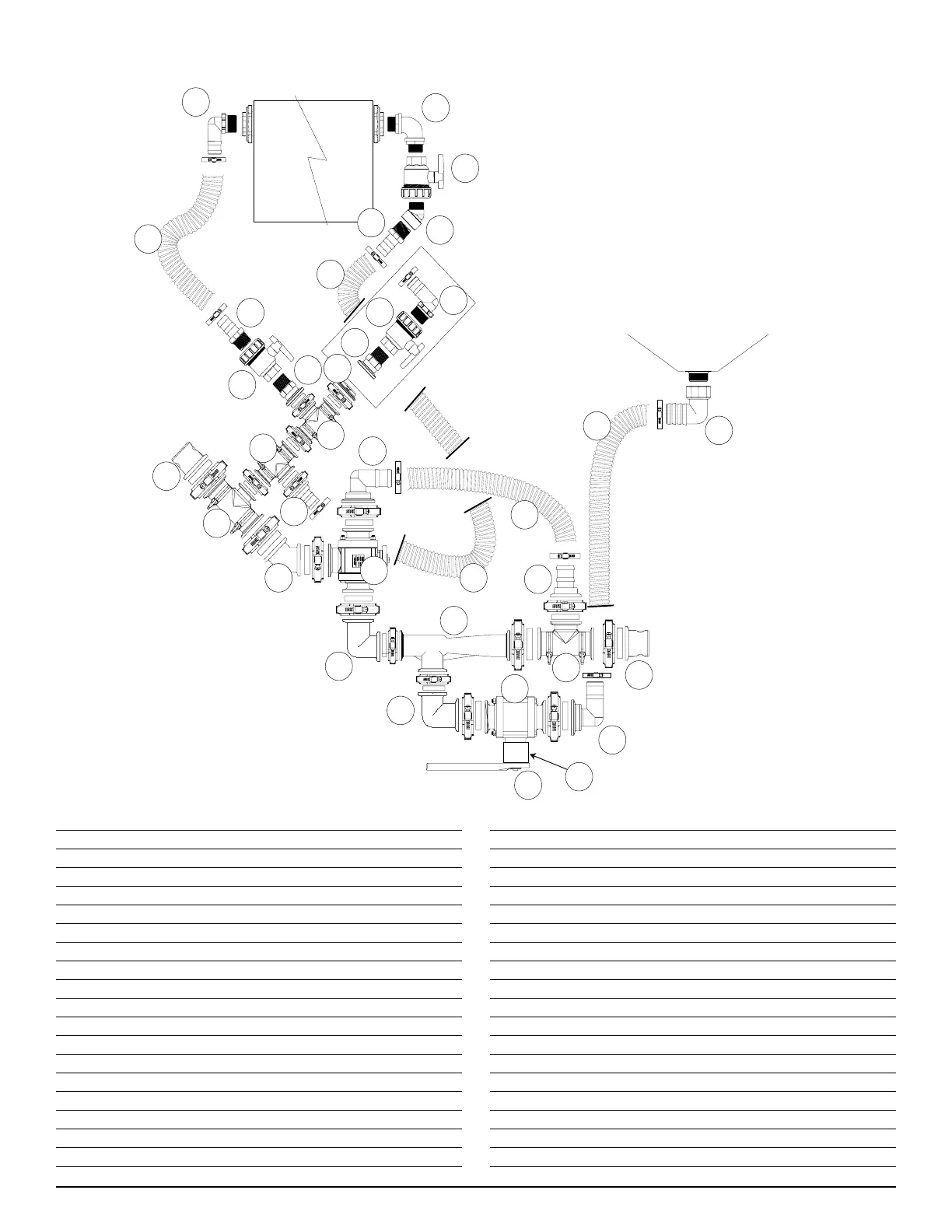

2” Handler II & III Manifold
Venturi Package Breakdown
