21Handler I, II & III Operator’s Manual - October 2008

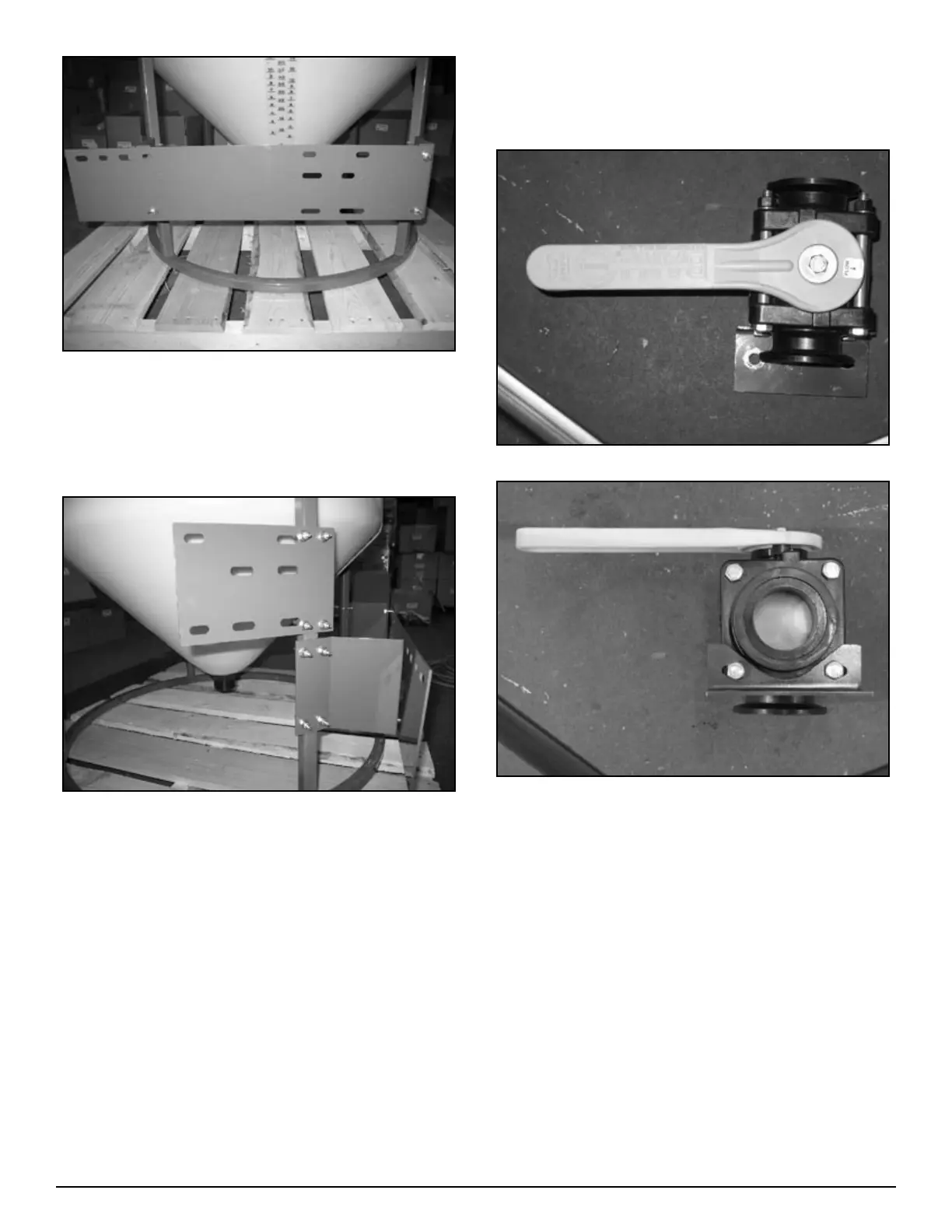

Figure H3-4.5
Mount venturi mounting plate (86-HVMP) on to angled
frame brackets as shown in figure H3-4.5. Use three 5/16” X
1” bolts (67-CSH5C516-1P) – two on right side and one on
left lower side. Do not tighten completely yet.
Figure H3-4.6
Mount intake support plate (86-HISP) to frame as shown in
figure H3-4.6. Use two 1” U-bolts (67-UB025-100), four ¼”
washers and four ¼” locking nuts. Do not tighten com-
pletely yet.
Go to next step (Three way valve support bracket installa-
tion).
2.
3.
4.
Step 3
Three way valve support bracket
installation
Figure H3-4.32
Figure H3-4.33
If two inch system install 2” three way valve support bracket
(86-VASB2) on to three way valve as shown in Figure
H3-4.32 and H3-4.33 NOTE: handle operation should have
closed position to left when looking at front of valve.
1.
