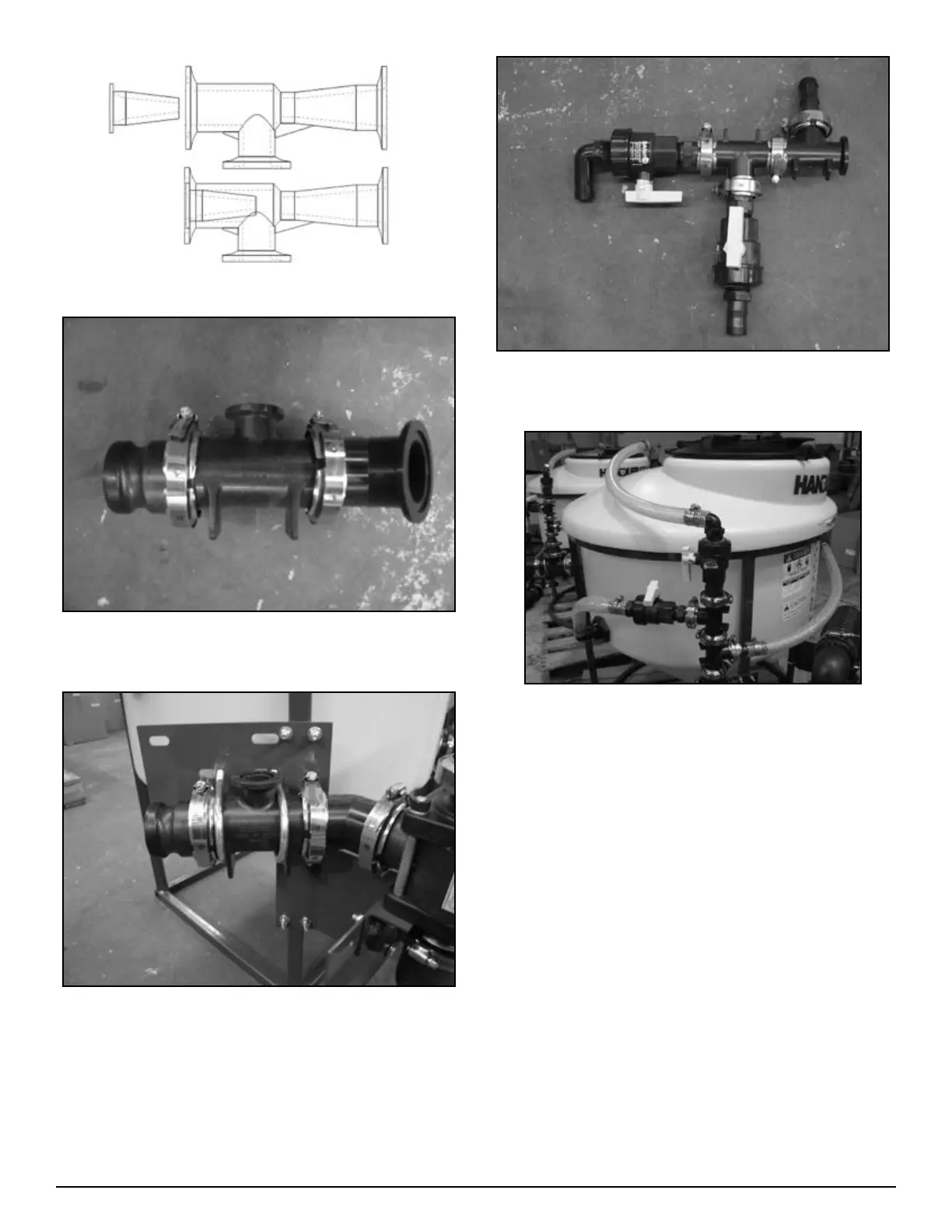

Venturi Nozzle Placement
Figure H3-4.10
Assemble remaining 2” fittings as shown in figure H3-4.10.
Figure H3-4.11
Mount second assembly to first as shown in figure H3-4.11
(use 25-FC220 clamp and 25-200G gasket). Do not tighten
completely yet.
Install 2 ½ “ U-bolts (67-UB038-250) to hold second as-
sembly to intake support plate. See figure H3-4.11. Do not
tighten completely yet.
4.
5.
6.
Figure H3-4.13
Assemble 1” fittings as shown in figure H3-4.13.
Figure H3-4.14
Install 1” fitting assembly as shown in figure H3-4.14. Do
not tighten completely yet.
Tighten flange clamps on 2” fittings.
Tighten U-bolts.
Tighten remaining bolts.
Align 1” fittings and tighten flange clamps.
