26 Handler I, II & III Operator’s Manual - October 2008

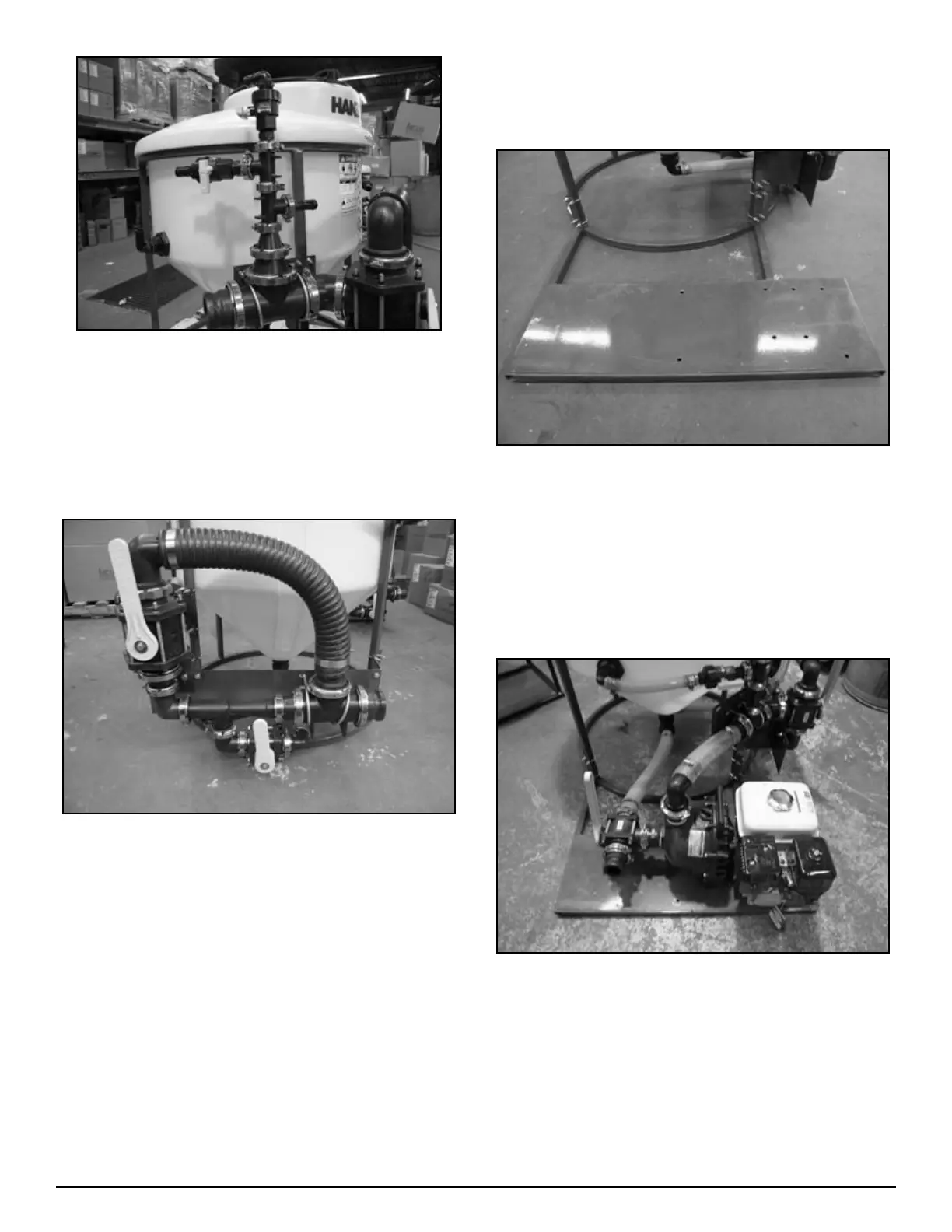

Figure H3-4.23
Install 1” fitting assembly as shown in figure H3-4.23 . Do
not tighten completely yet.
Tighten flange clamps on 3” fittings.
Tighten U-bolts.
Tighten remaining bolts.
Align 1” fittings and tighten flange clamps.
Figure H3-4.24
Install 3” bypass hose (54-79350) and secure with clamps
(25-TC343) see Figure H3-4.24.
Hint: Install hose at bottom end and ensure proper length.
Heat other end and install hose barb. Attach hose barb to
assembly.
Measure, cut and install 1” clear braided hose (54-79210)
for agitation , jug rinse and “Rotaflush” lines. Secure with
clamps (53-75612).
Install 2”FPT X 1 ½” Hosebarb 90 degree fitting on to bot-
tom of tank, see figure H3-4.16.
Measure, cut, and install 1 ½” PVC suction hose (54-79050)
that goes between tank and venturi valve. Secure with
clamps (53-75624). See figure H3-4.17.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Step 5
Pump bracket installation (all Handler III
models)
Figure H3-4.25
Install pump bracket into bottom of tank frame using four 1”
U-bolts (67-UB025-100), see figure H3-4.25.
Step 6
Two inch pump and recirculation package
installation
Figure H3-4.26
Mount pump to pump bracket using four 5/16’ X 1 ½”L
bolts. See figure H3-4.26
1.
1.
