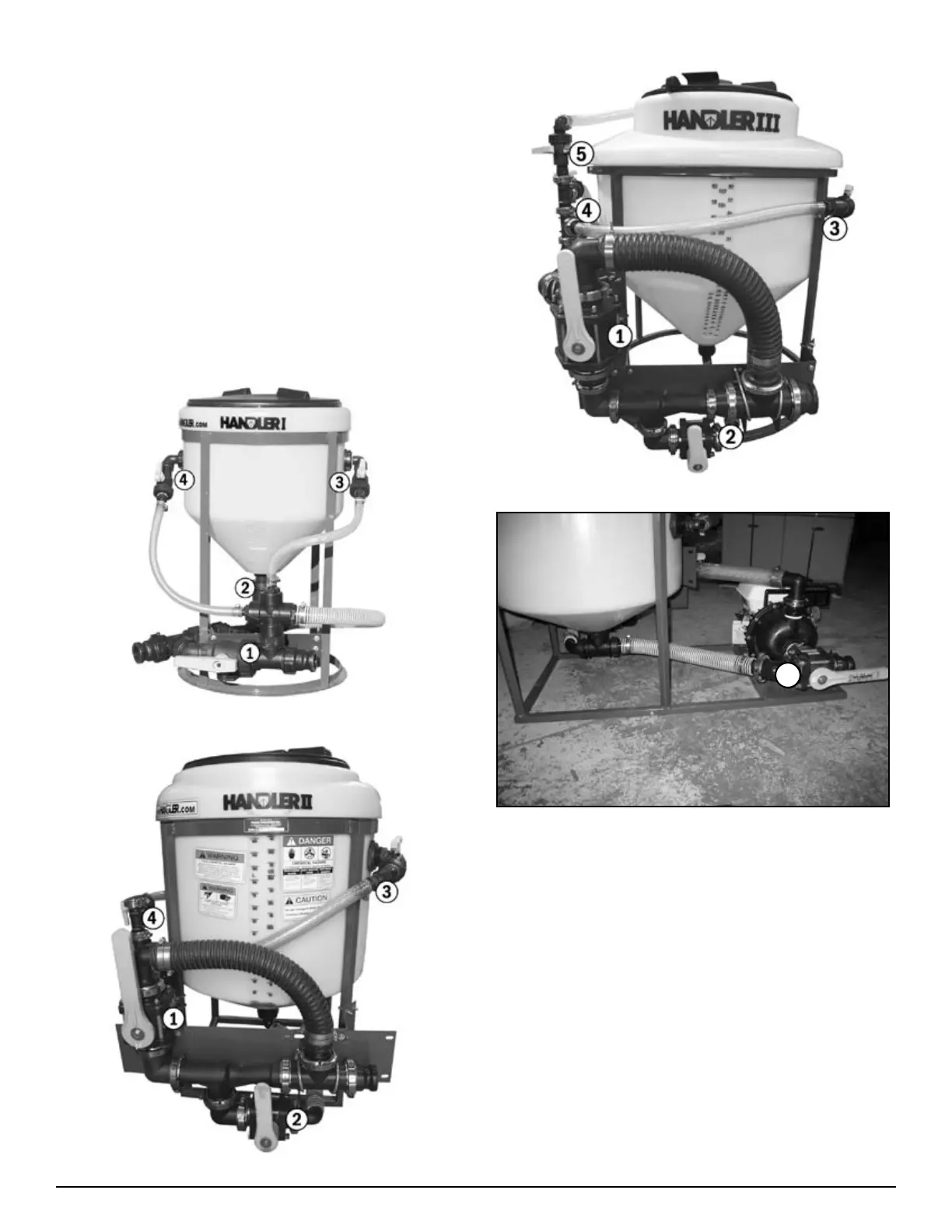

Valve Descriptions
In the operation instructions valves are referred to their pur-
pose in the system. Using the images below, find the model of
Handler that you have purchased and familiarize yourself with
the valves and their names prior to moving on to the operation
instructions.
Main valve (3-way valve)
Venturi valve
Container rinse valve (knife valve)
Agitation valve
Rotaflush valve (Handler III only)
Pump suction valve (Optional - Handler II & III only)
Handler I valves
Handler II valves
1.
2.
3.
4.
5.
6.
Handler III valves
Optional pump suction valve - Handler II or III
6
